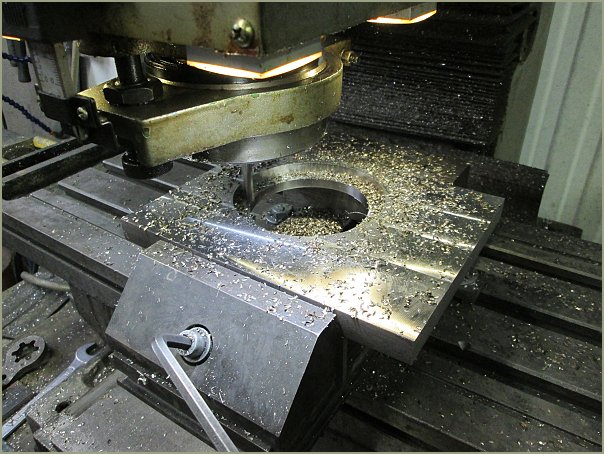

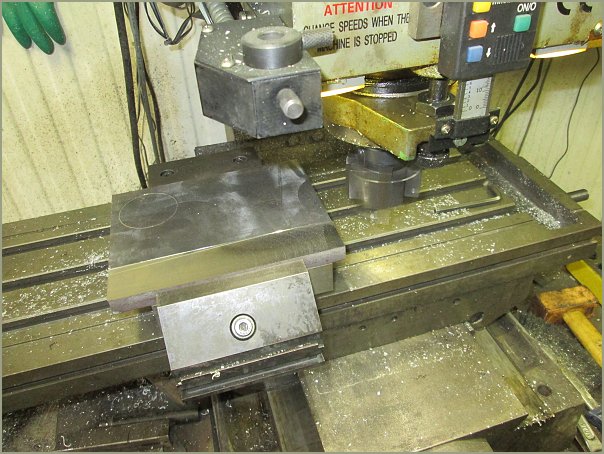

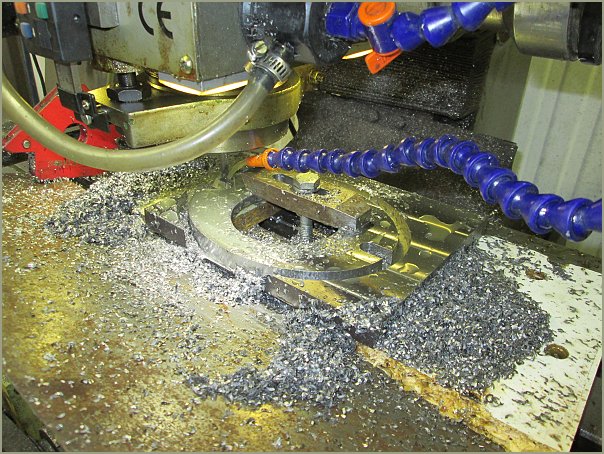

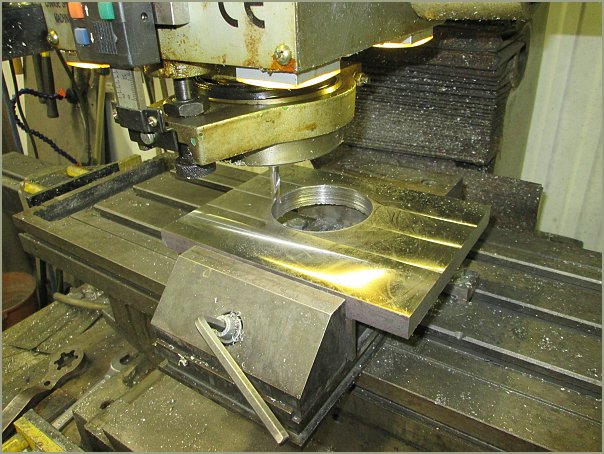

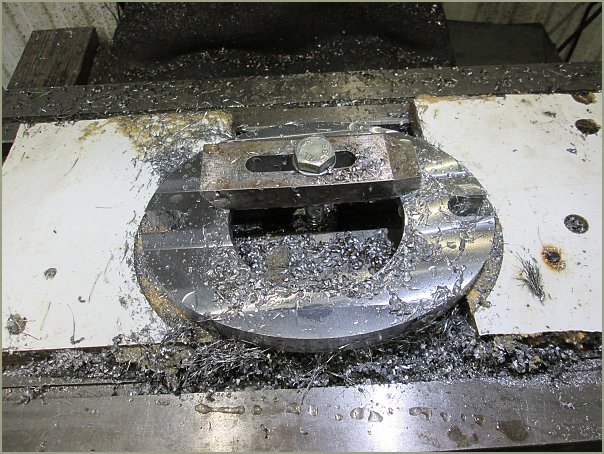

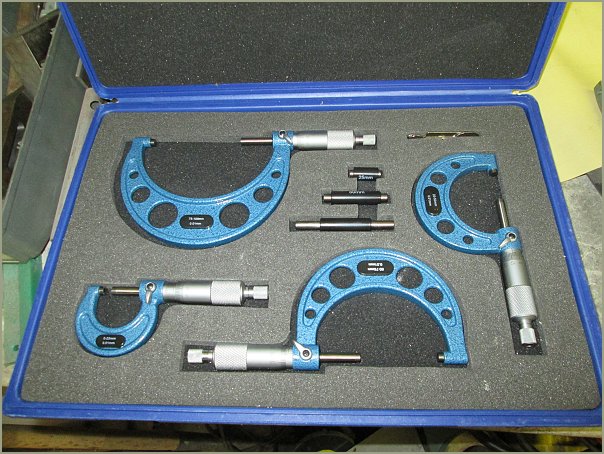

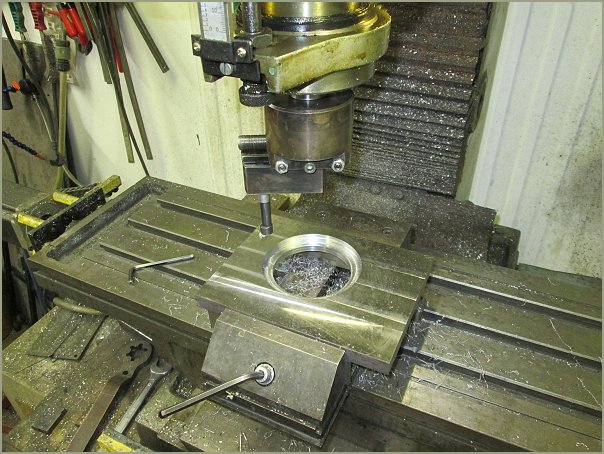

New micrometers from 0-100mm
IMG_0329

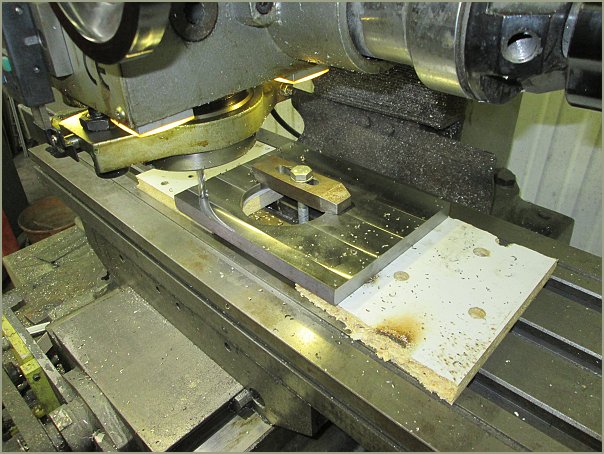

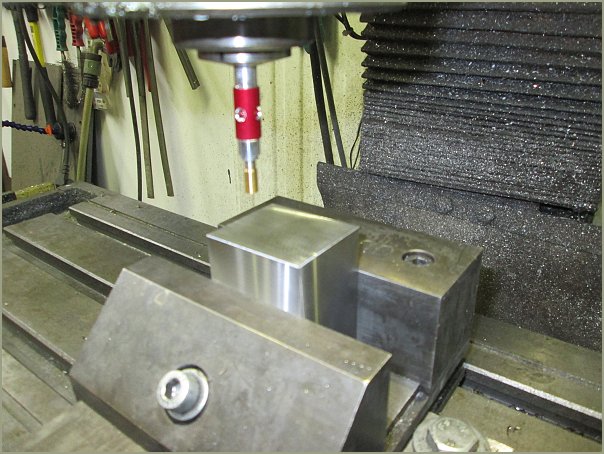

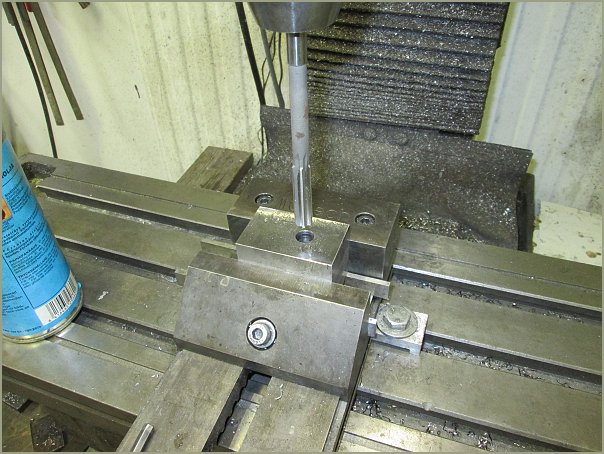

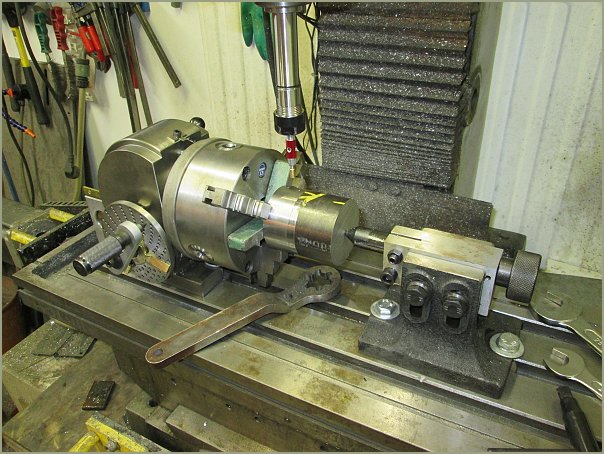

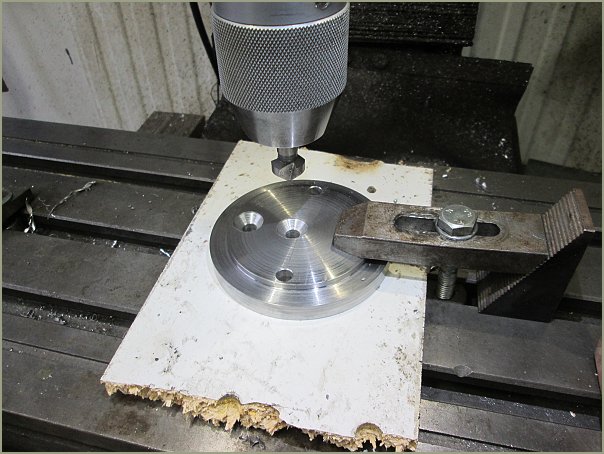

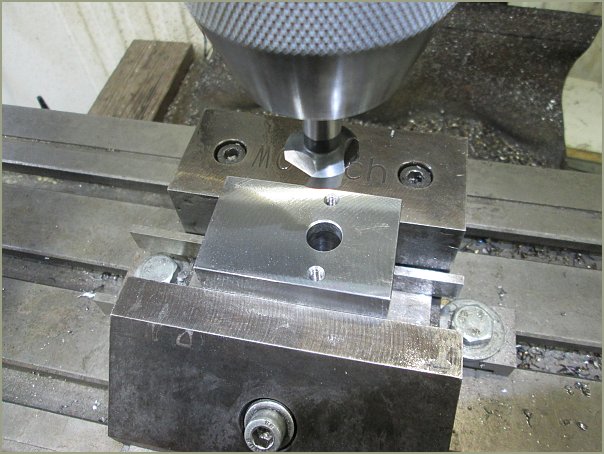

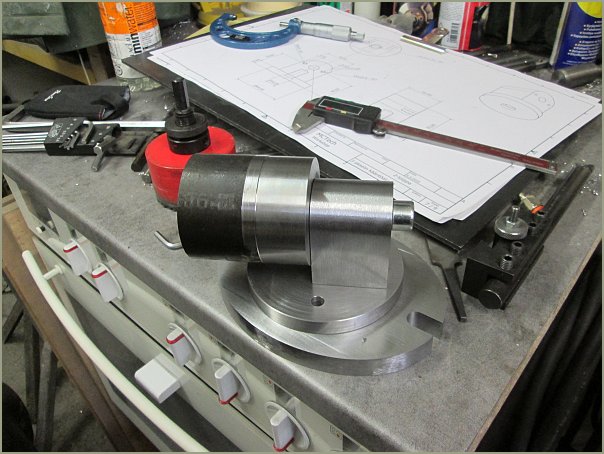

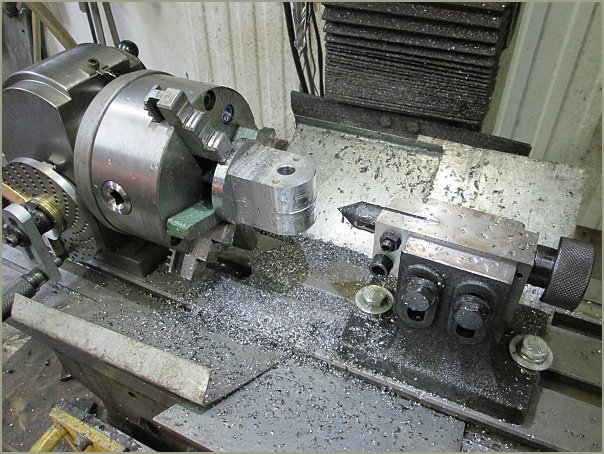

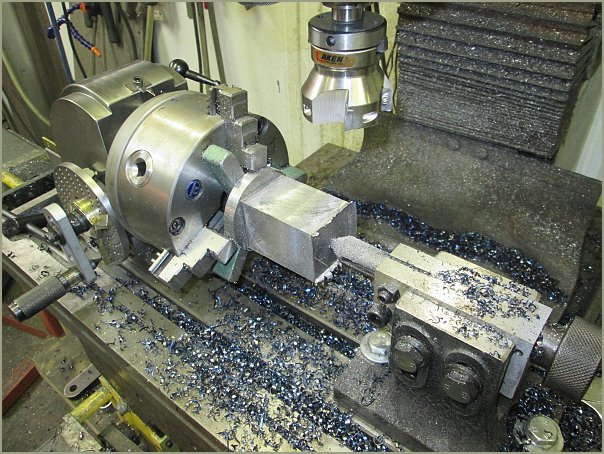

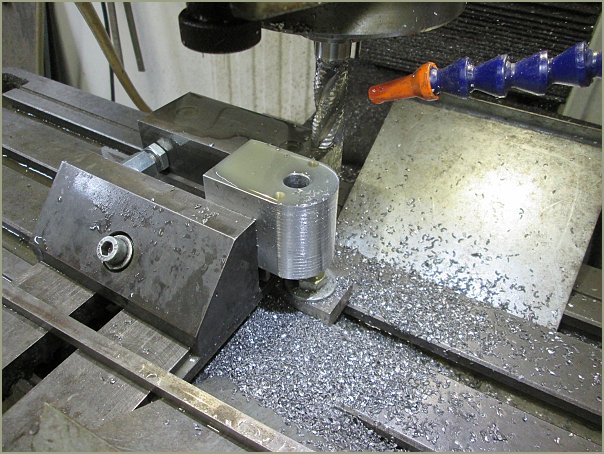

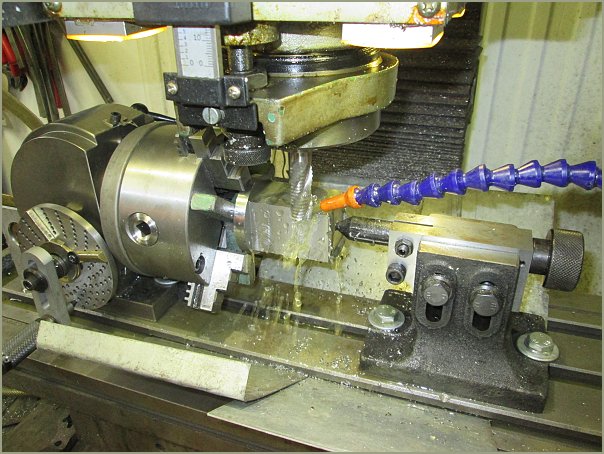

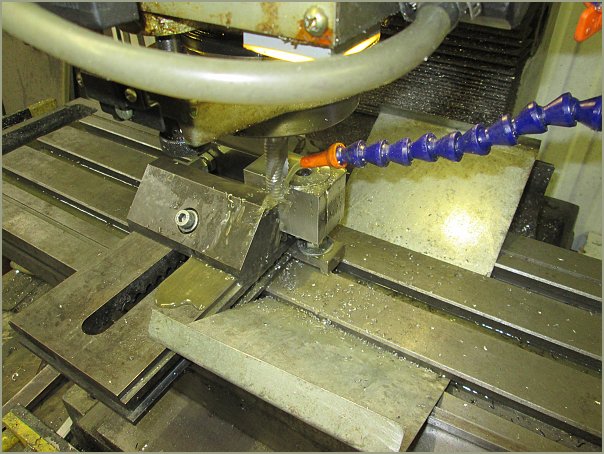

Center finding

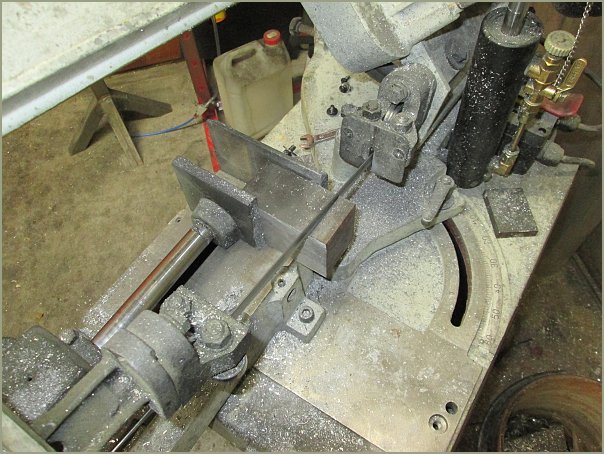

IMG_0330 IMG_0331 IMG_0332 IMG_0333 IMG_0334 IMG_0335 IMG_0336 IMG_0337 IMG_0338 IMG_0339 IMG_0340 IMG_0341 IMG_0342 IMG_0343 IMG_0344 IMG_0345 IMG_0346 IMG_0347 IMG_0348 IMG_0349

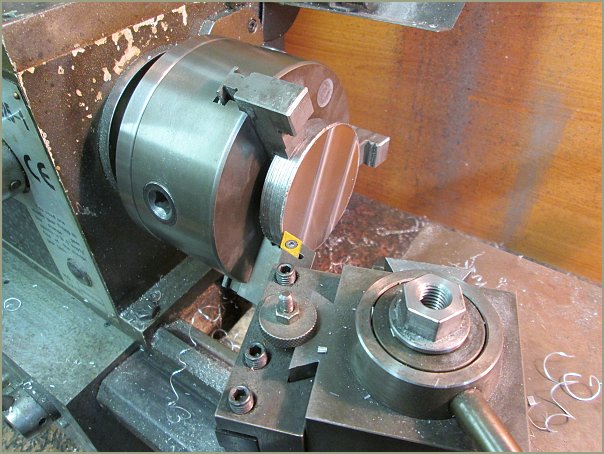

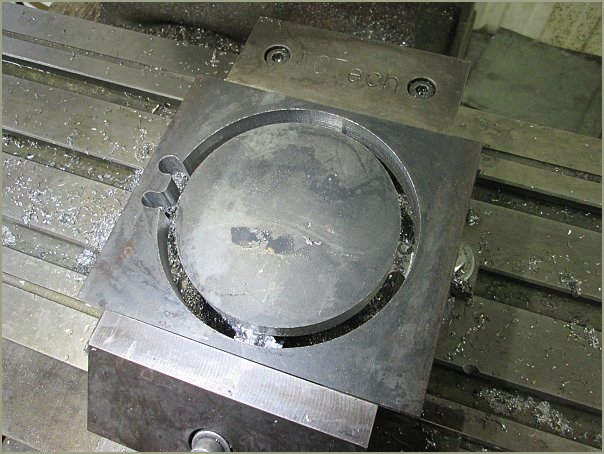

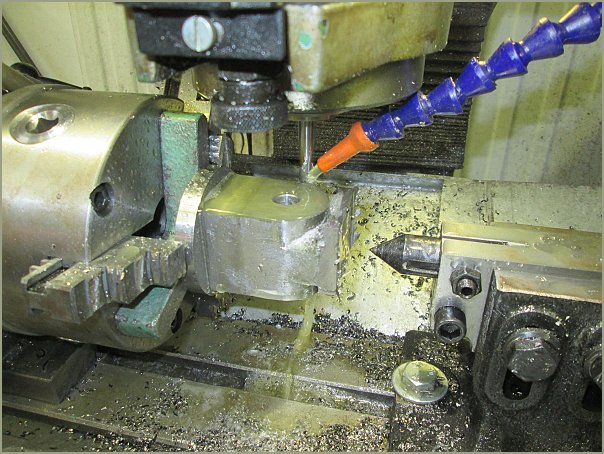

Damn it was hard metal. I broked several tools...even carbide didn't hold.

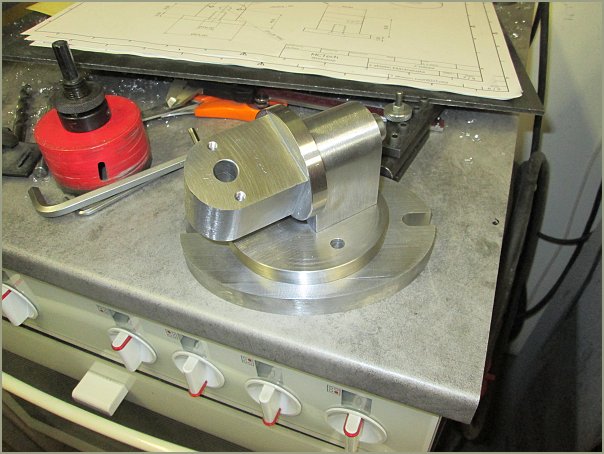

IMG_0350 IMG_0351 IMG_0353

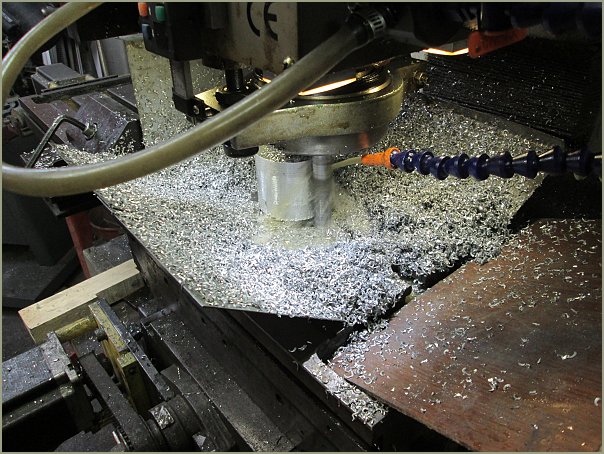

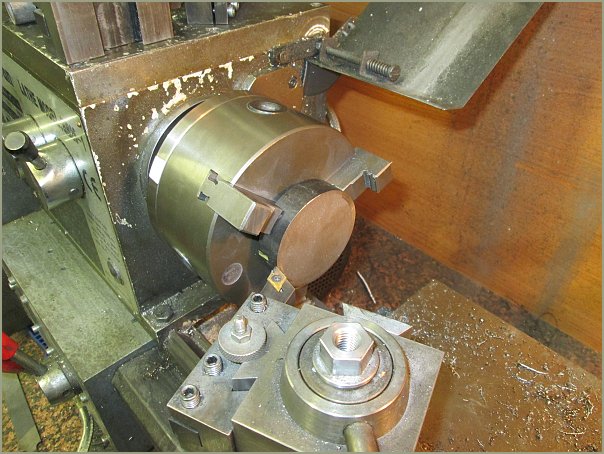

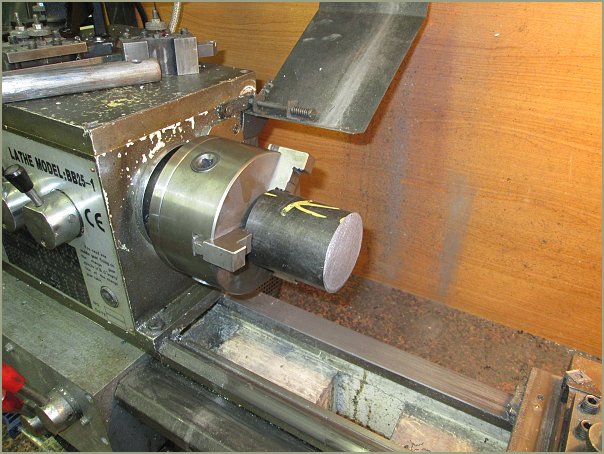

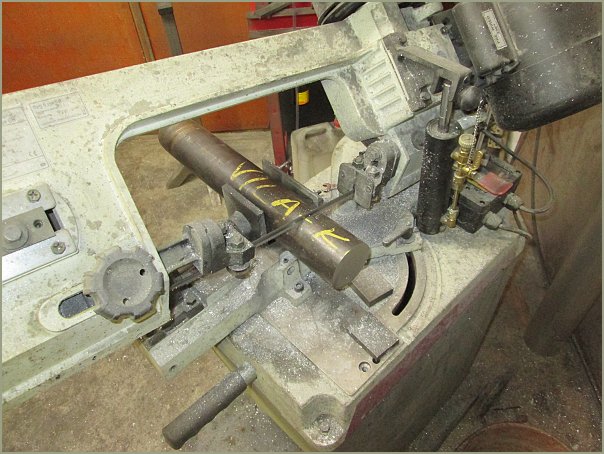

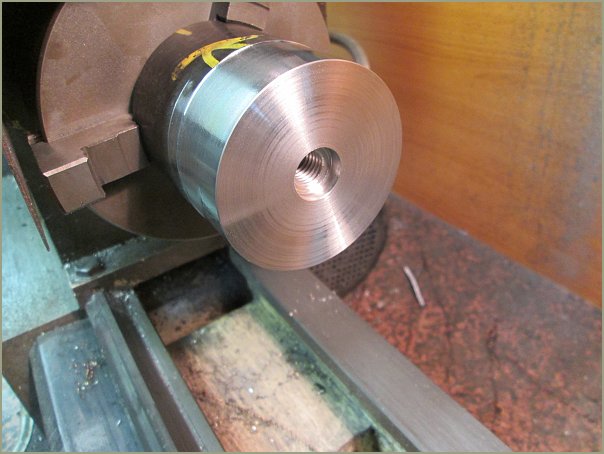

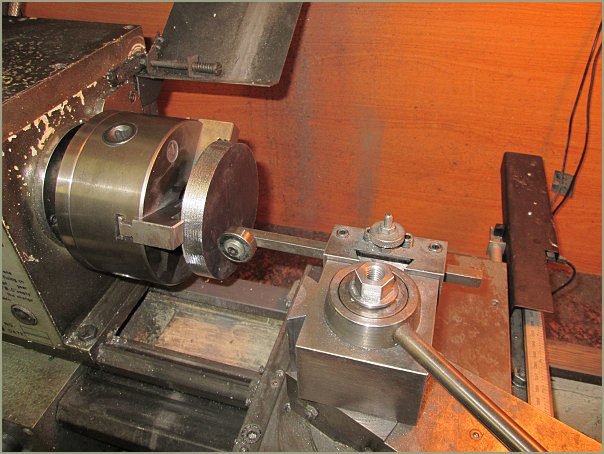

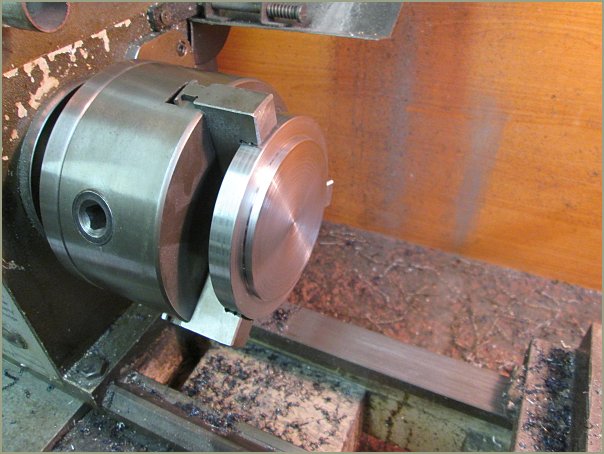

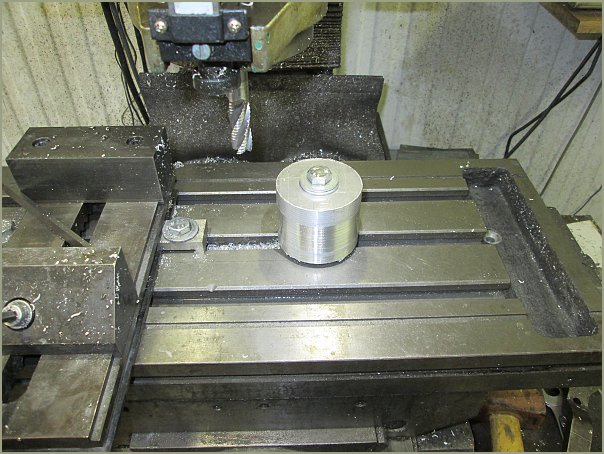

Didn't have 65mm round bar
IMG_0354 IMG_0355

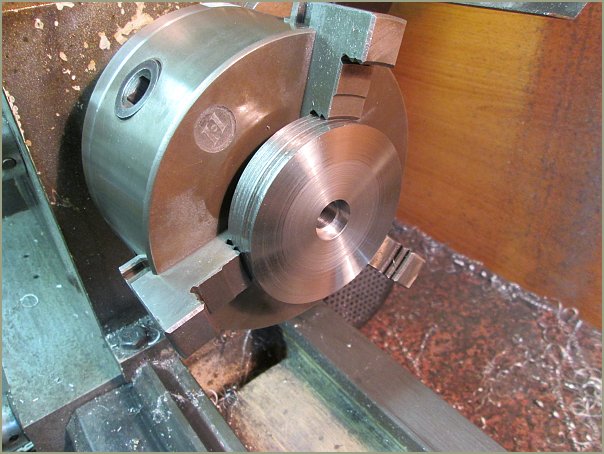

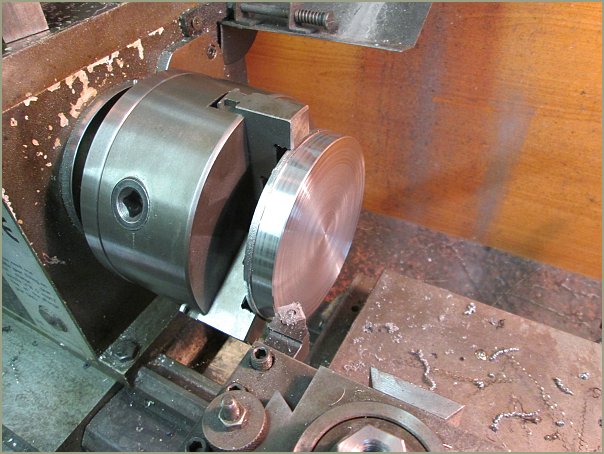

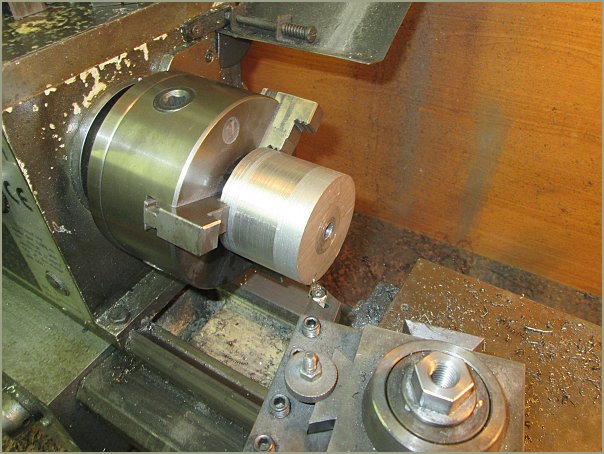

But now I do have one
IMG_0356 IMG_0357 IMG_0358

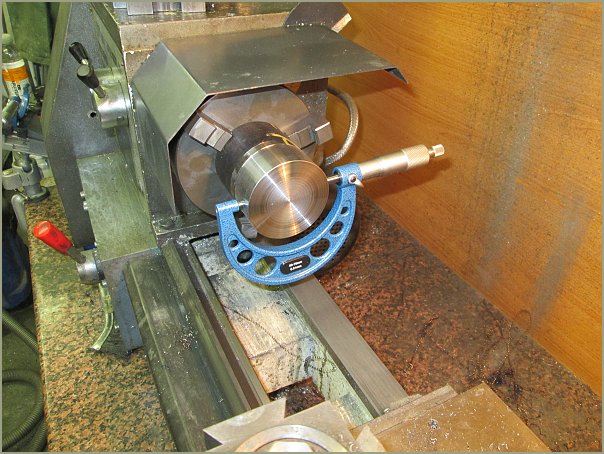

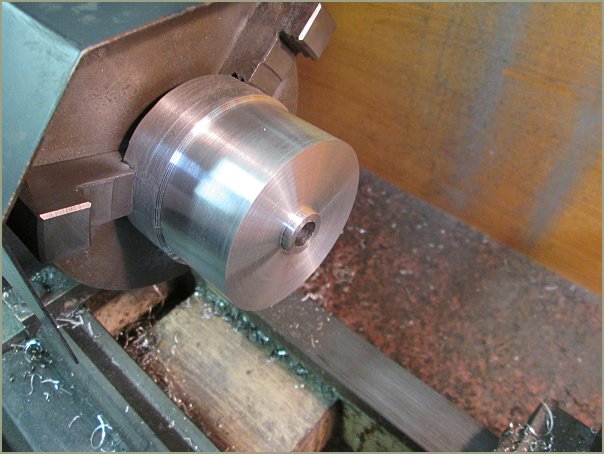

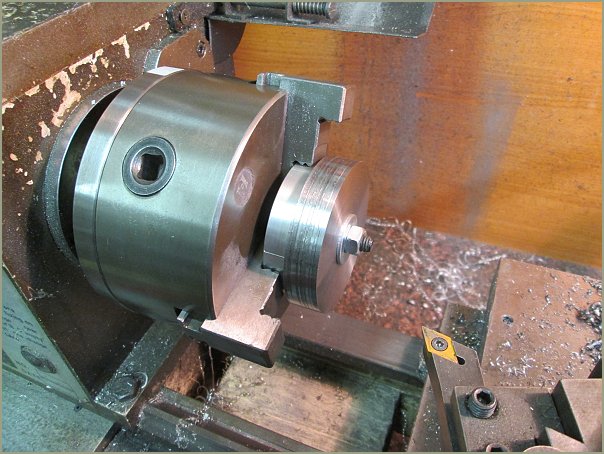

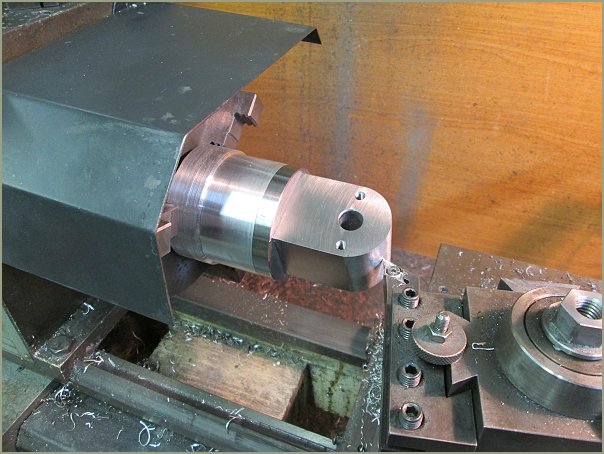

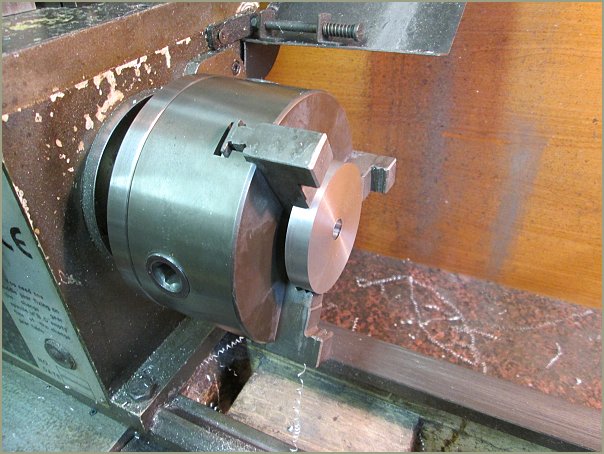

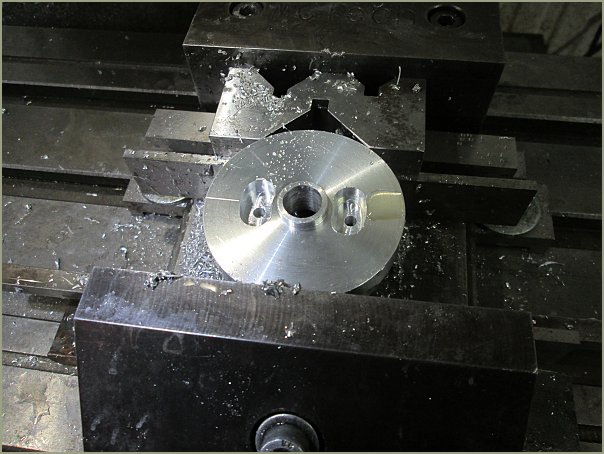

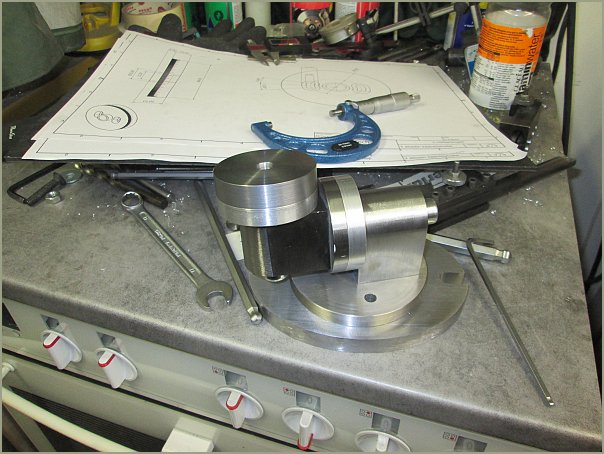

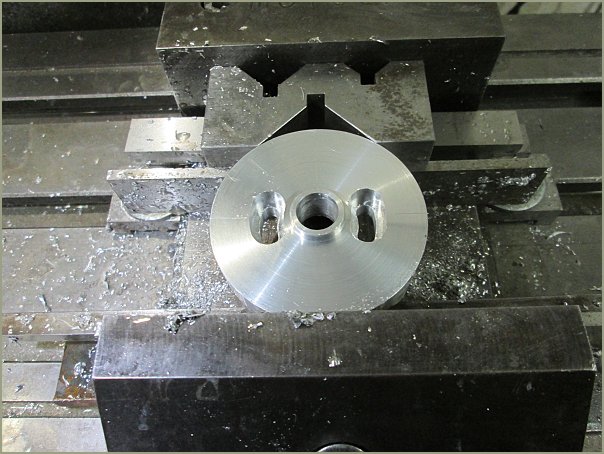

Fit nicely

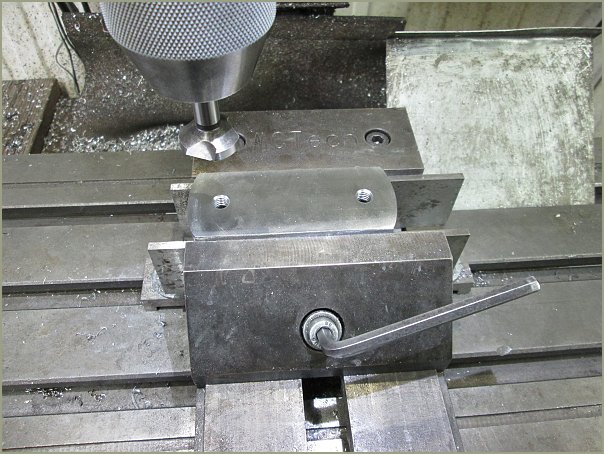

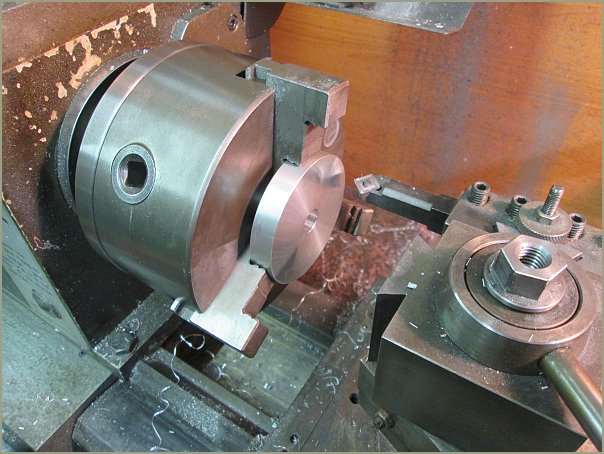

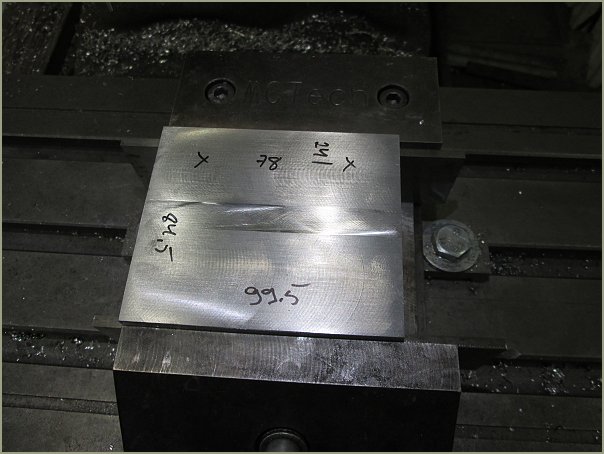

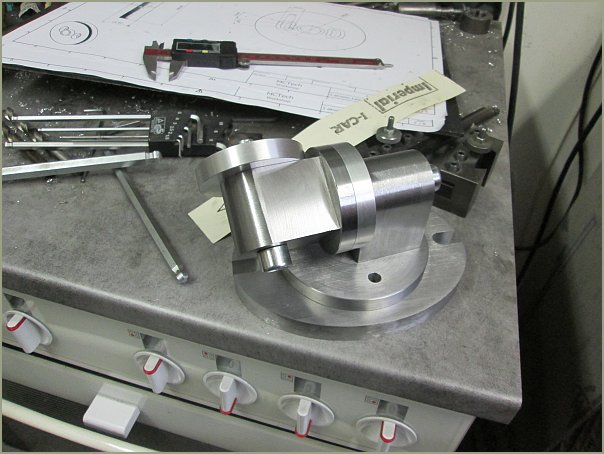

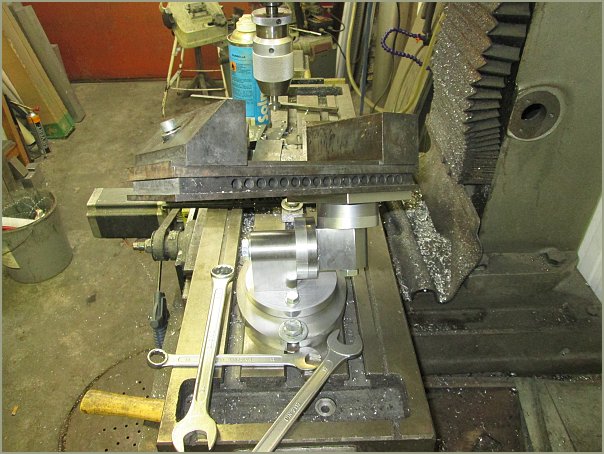

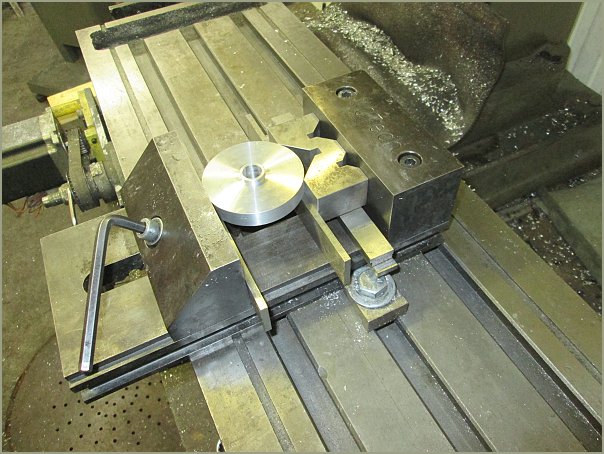

IMG_0359 IMG_0360 IMG_0361 IMG_0363 IMG_0364 IMG_0365 IMG_0366 IMG_0367 IMG_0368 IMG_0369 IMG_0370 IMG_0371 IMG_0372 IMG_0373 IMG_0374 IMG_0375 IMG_0376 IMG_0377 IMG_0378 IMG_0379 IMG_0380 IMG_0381 IMG_0382 IMG_0383

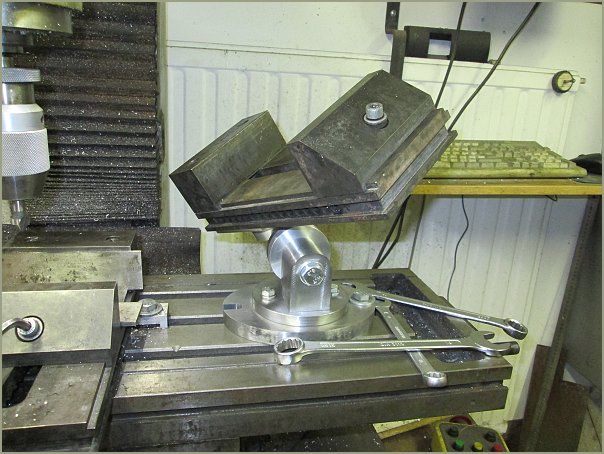

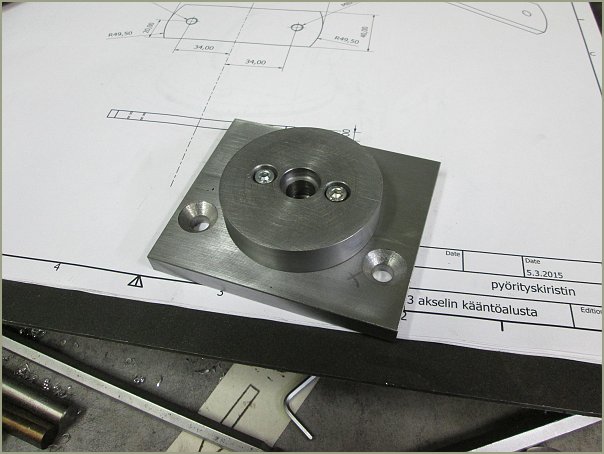

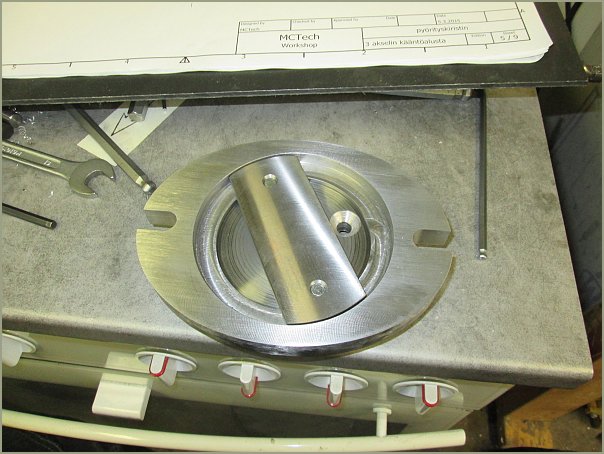

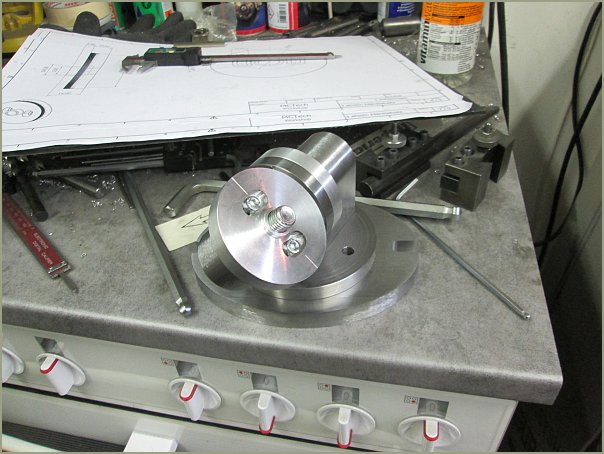

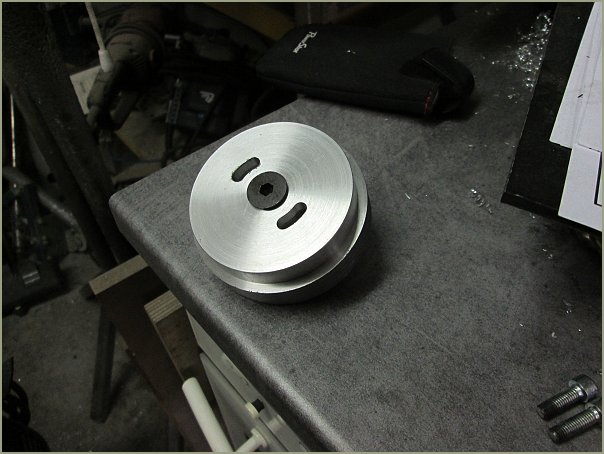

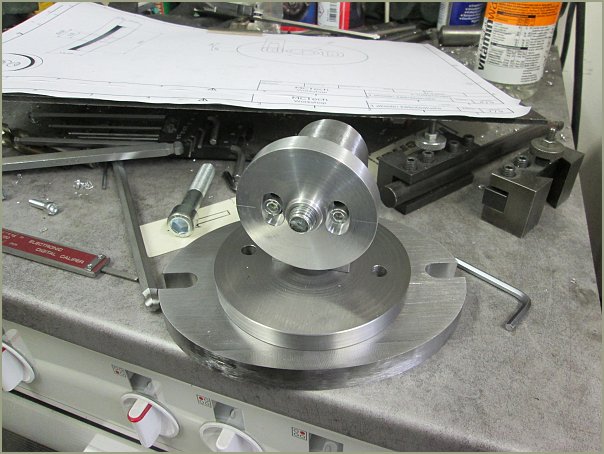

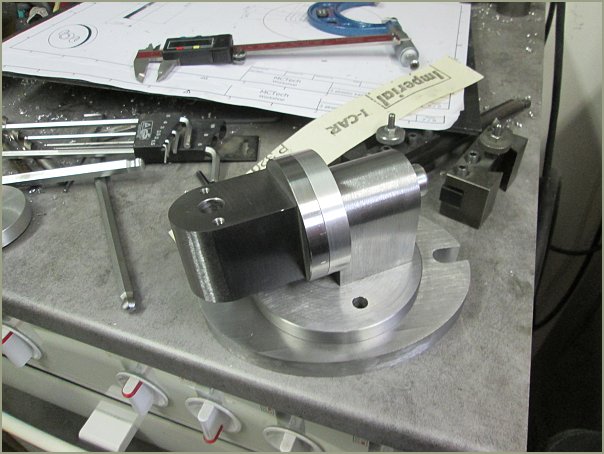

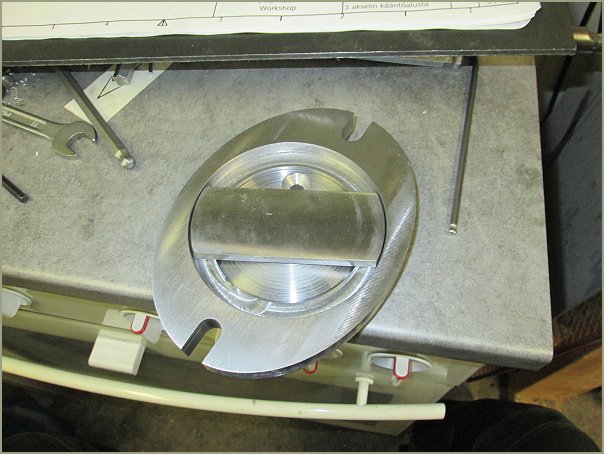

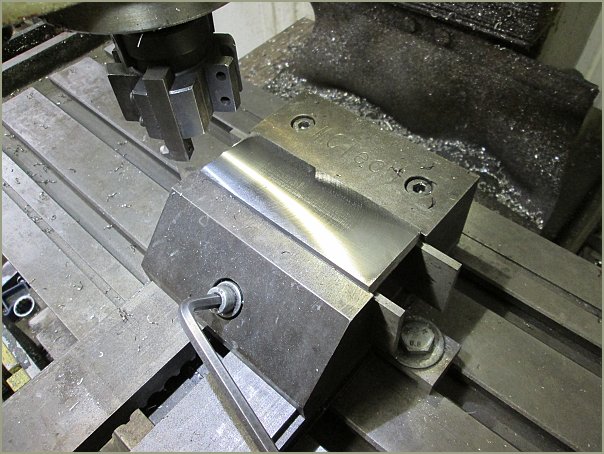

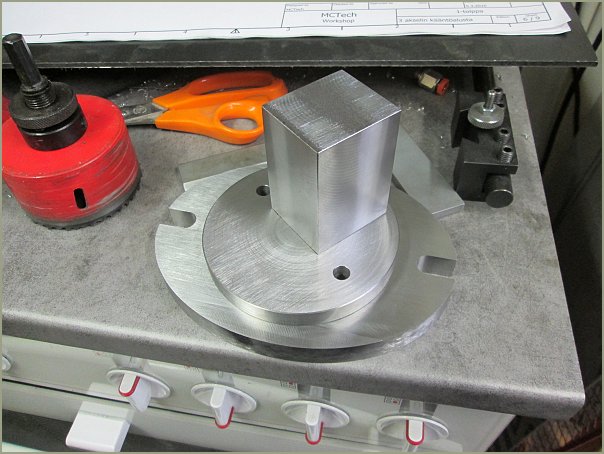

Almost ready. Still need the scales.
IMG_0384 IMG_0385 IMG_0386

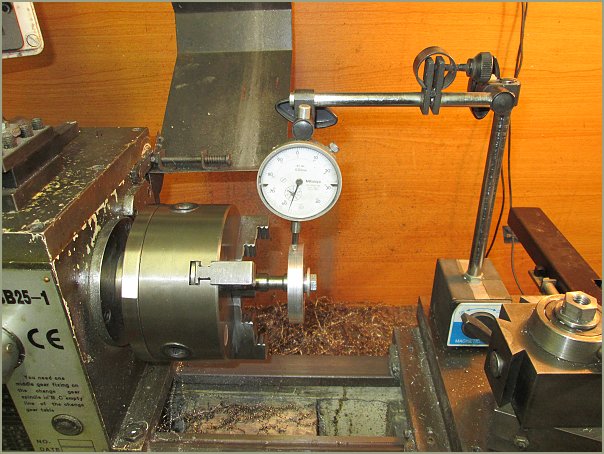

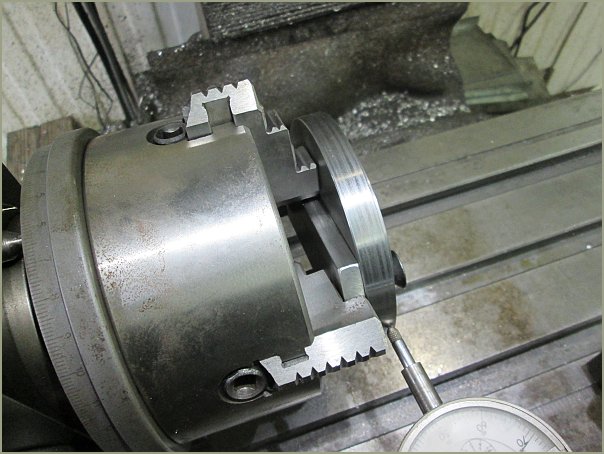

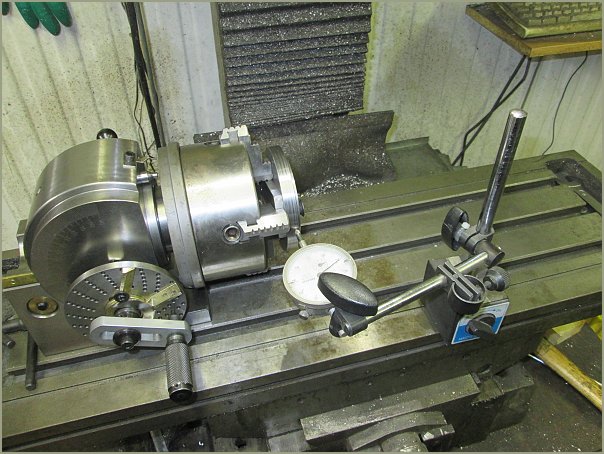

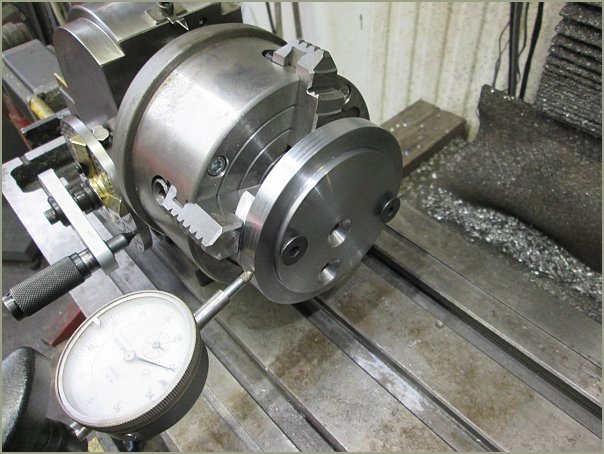

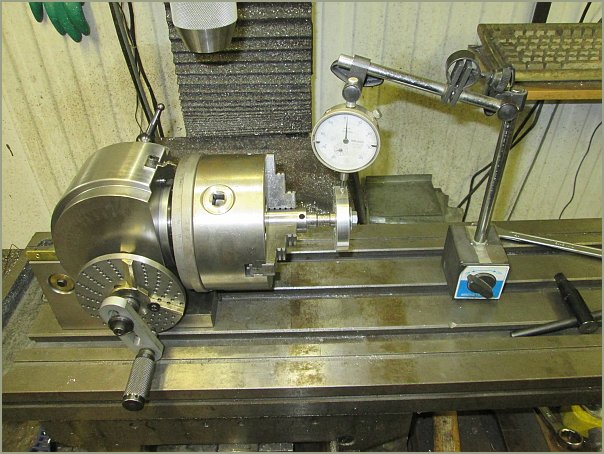

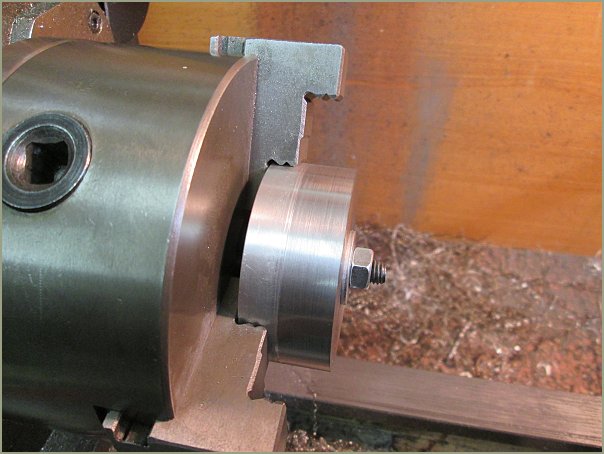

Centering the ring
IMG_0387

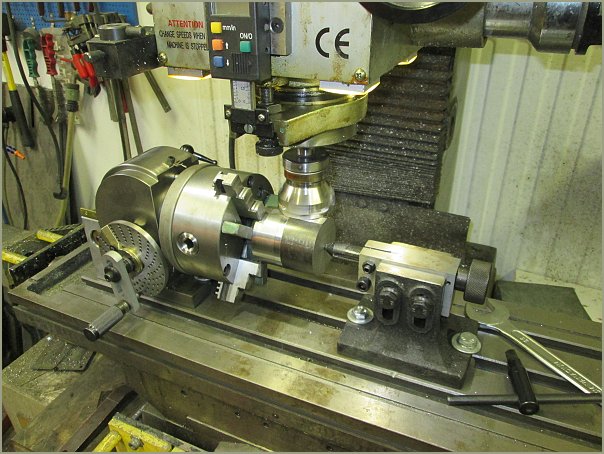

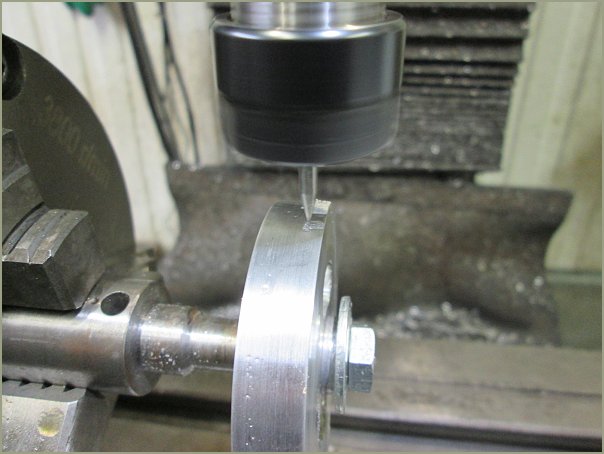

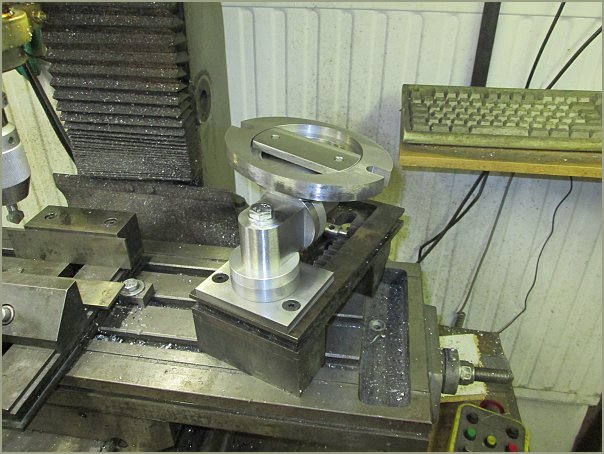

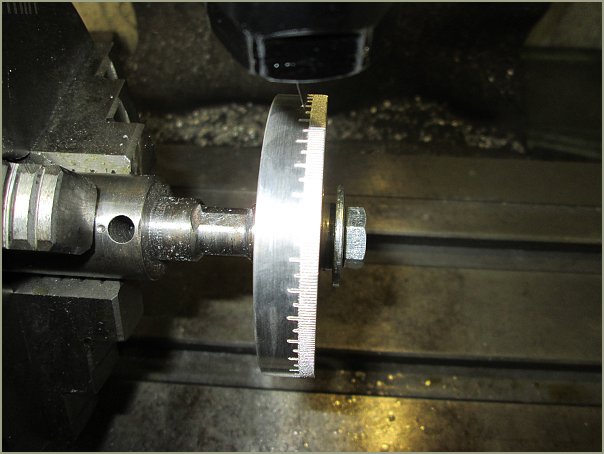

Milling the scales. Extremy slow operation. It would be much easier if I had 4th axis.
IMG_0388 IMG_0389

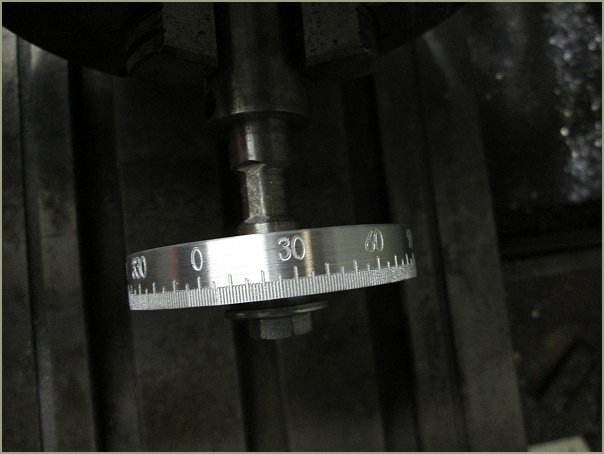

This ring is aluminium. It took about 1,5h to mill the scale and numbers. Feed rate was 50mm/min and tool diameter 0,2mm.
IMG_0390

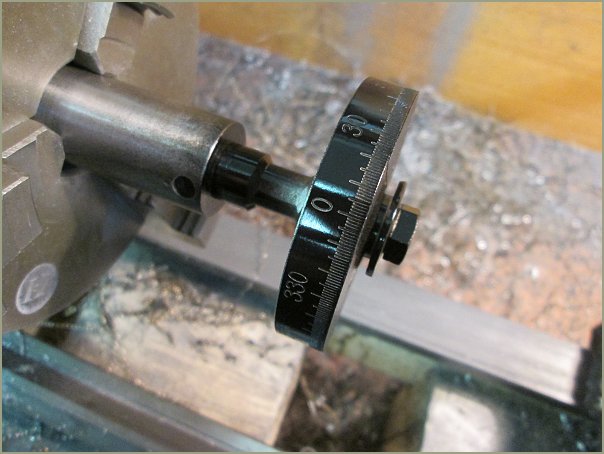

Little bit of black paint...
IMG_0391

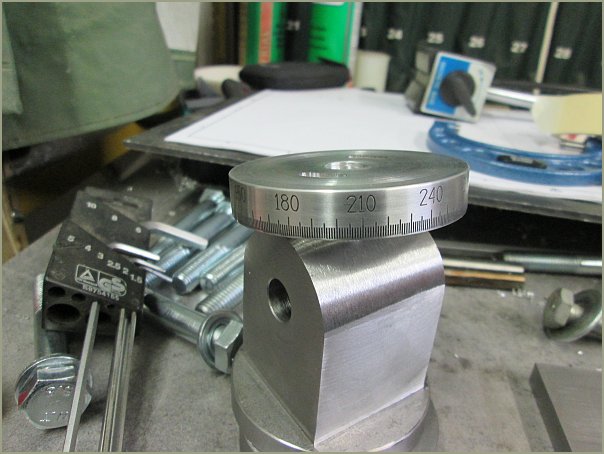

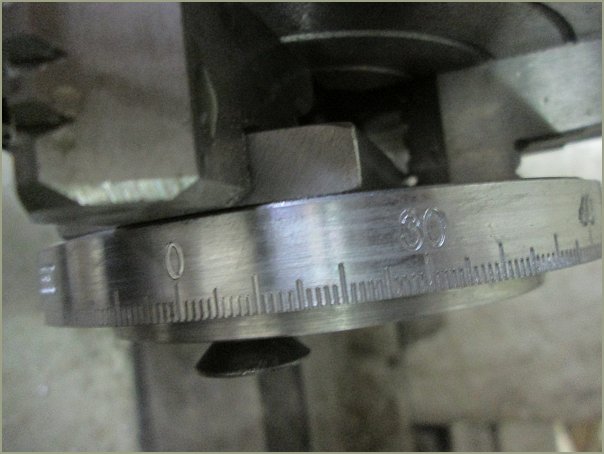

...and after polishing.
IMG_0393 IMG_0394 IMG_0395 IMG_0396 IMG_0397 IMG_0398

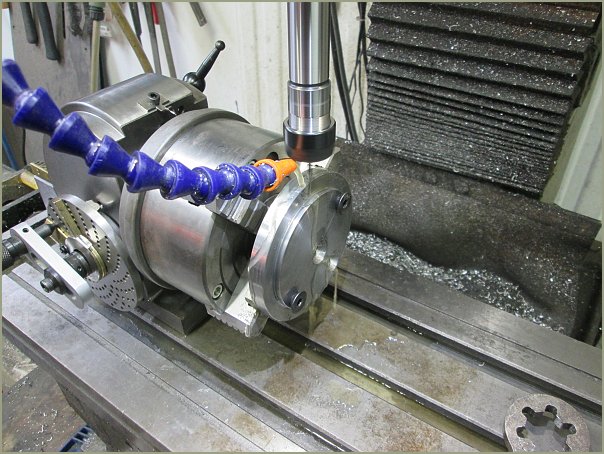

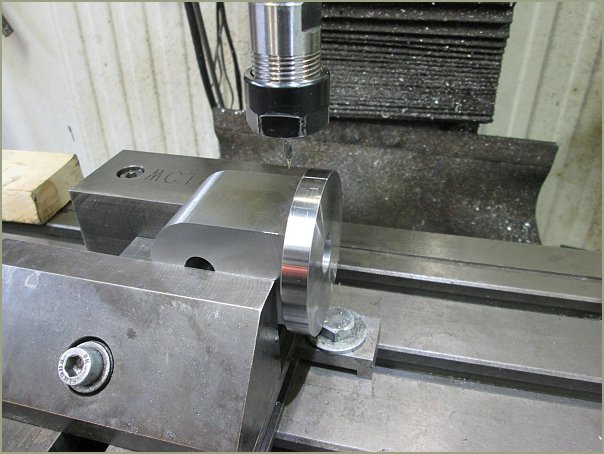

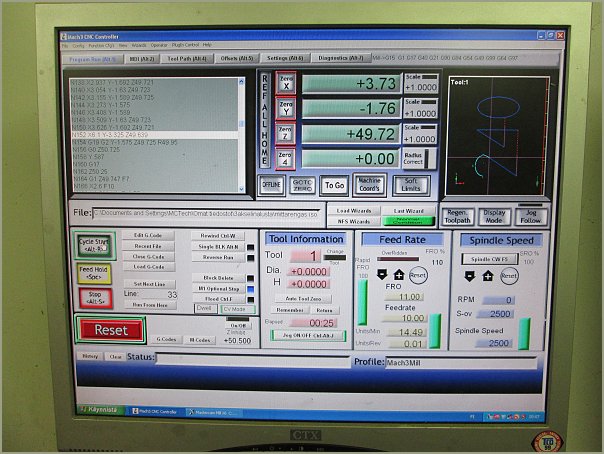

This ring is mild steel. It took about 3h to make the scale and numbers. Feed rate was 10mm/min and tool diameter 0,2mm.
IMG_0399 IMG_0400

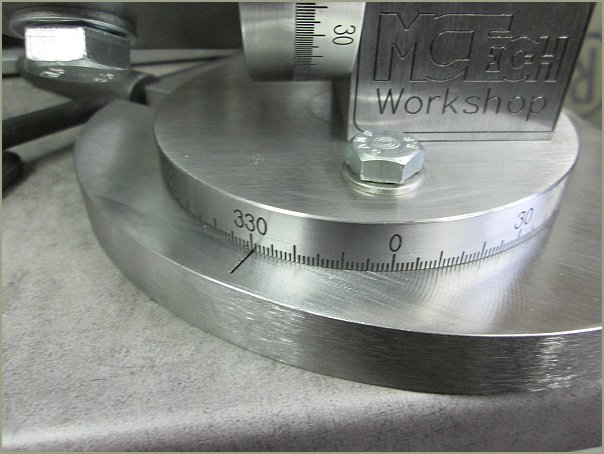

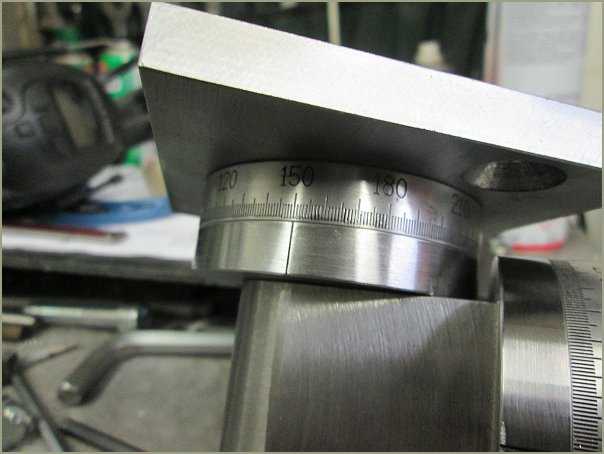

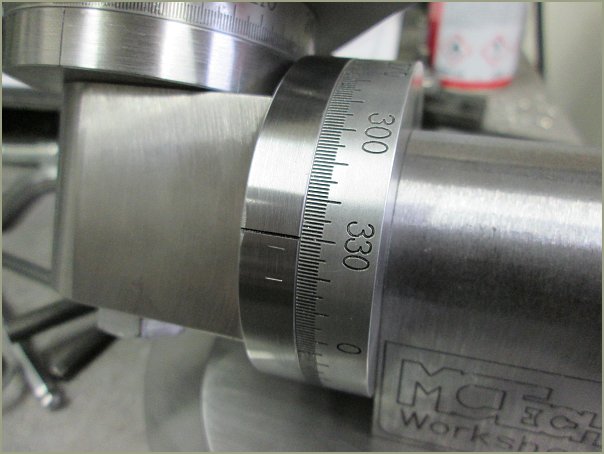

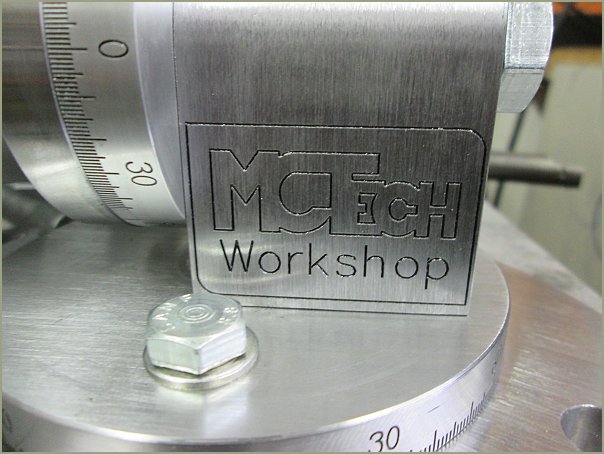

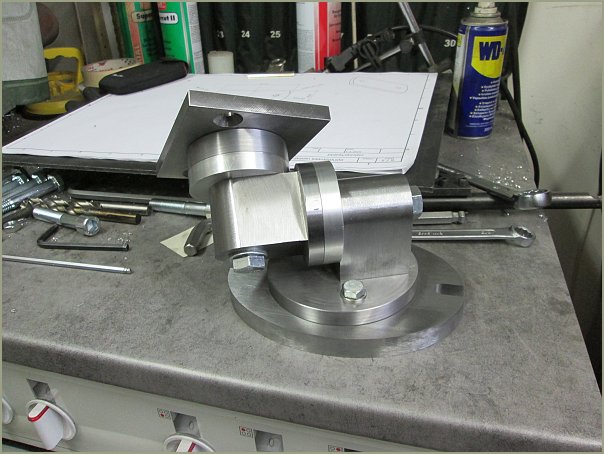

READY!!!
