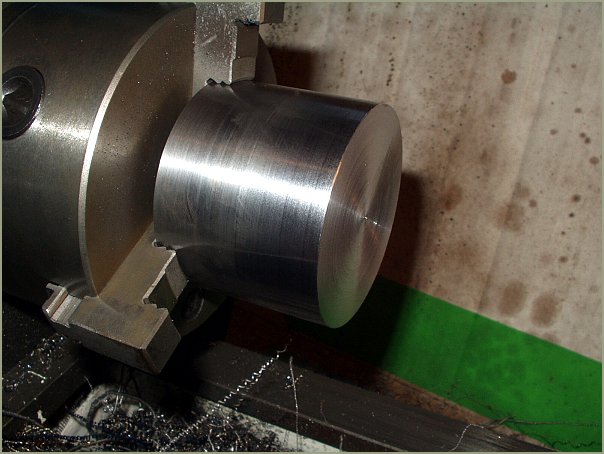

Start the body making

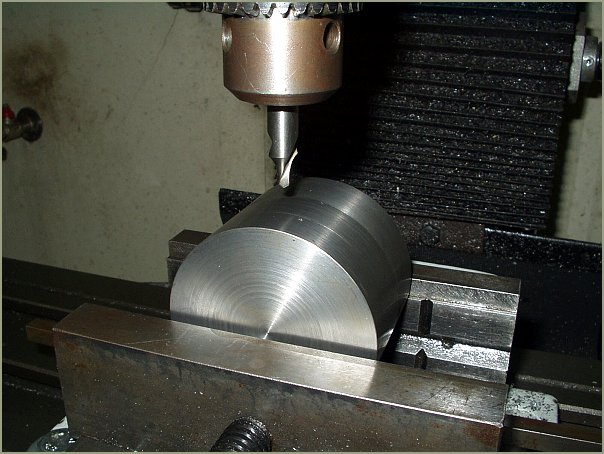

P2090011
Marking the hole
P2090012

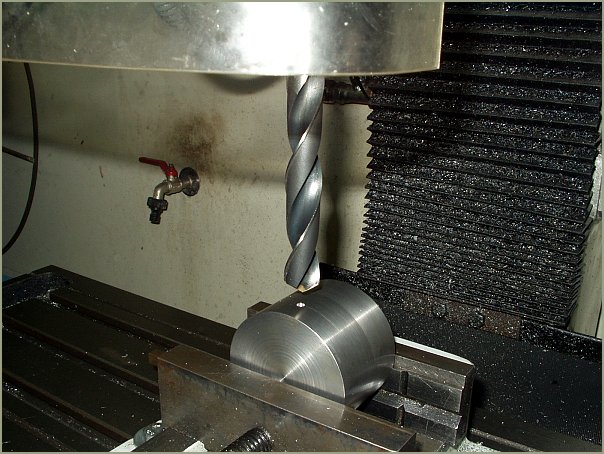

Boring the hole
P2100001

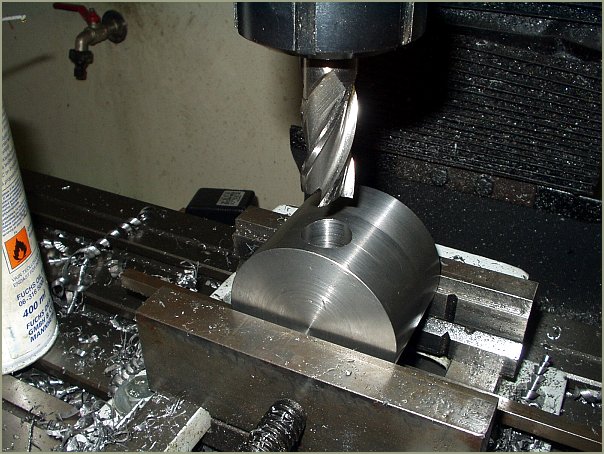

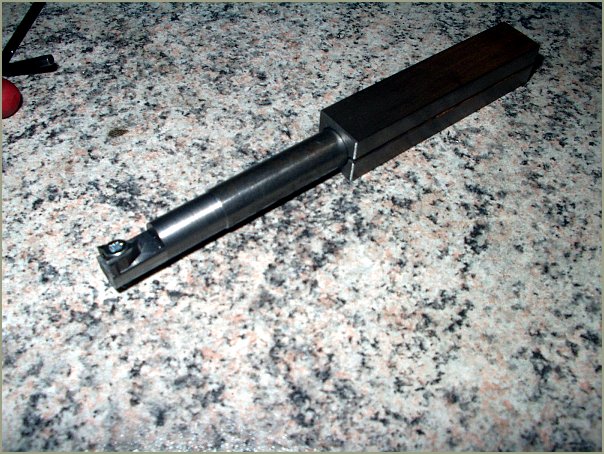

Reaming with milling cutter. Didn't have a 20mm reamer.
P2100002 P2100003

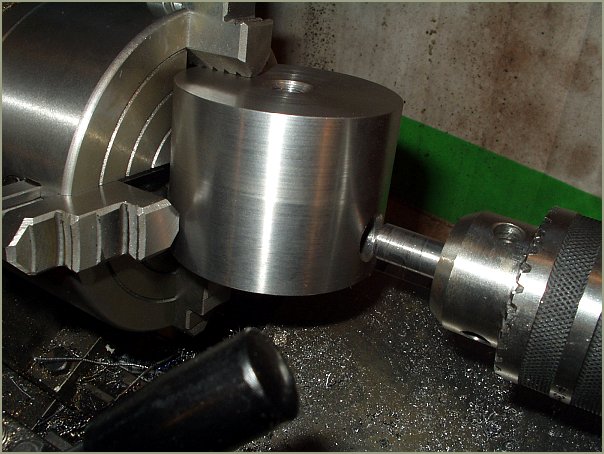

Trying to get it in right place to the 4 jaw chuck
P2100004

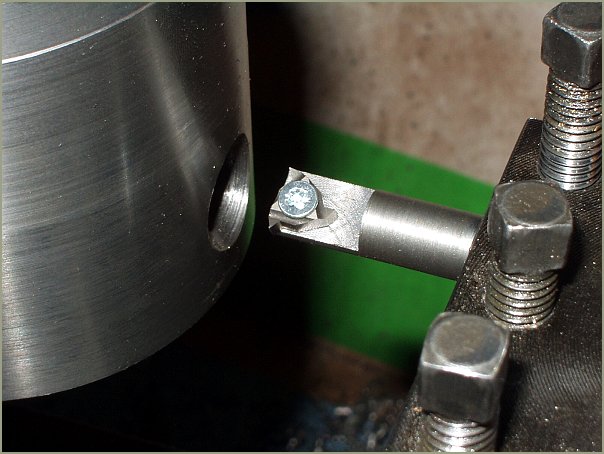

Internal threading
P2100005

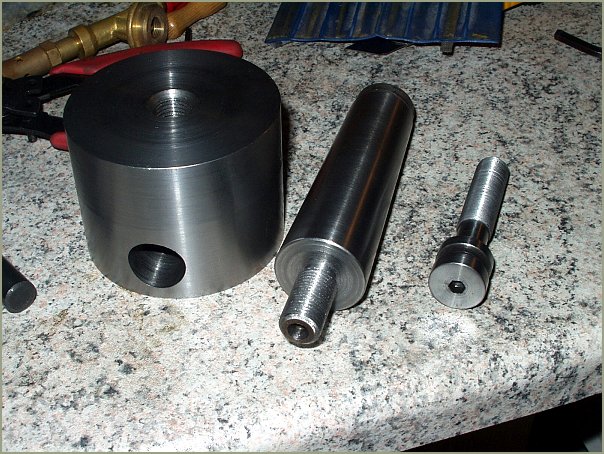

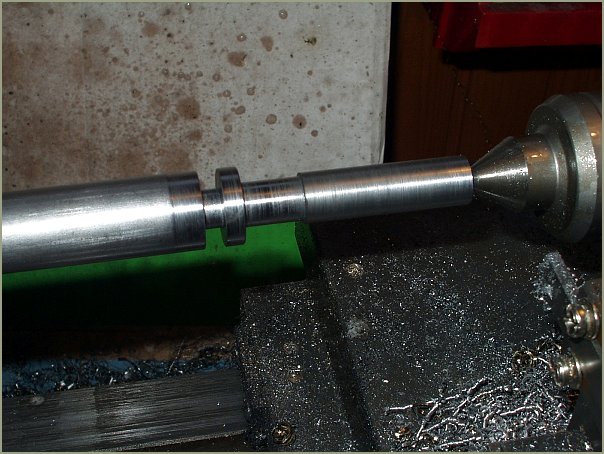

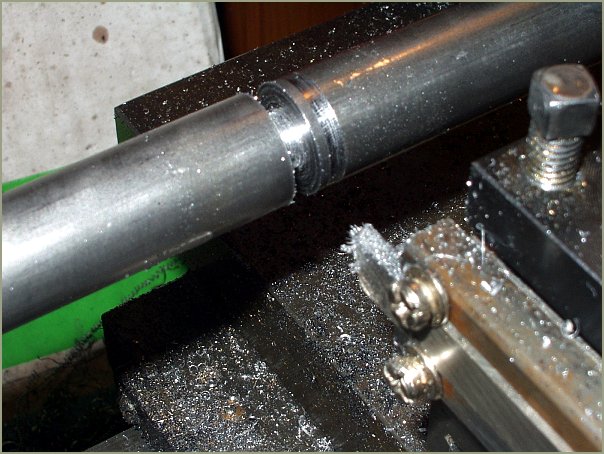

Start making the adjusting screw
P2100006 P2100007 P2100008

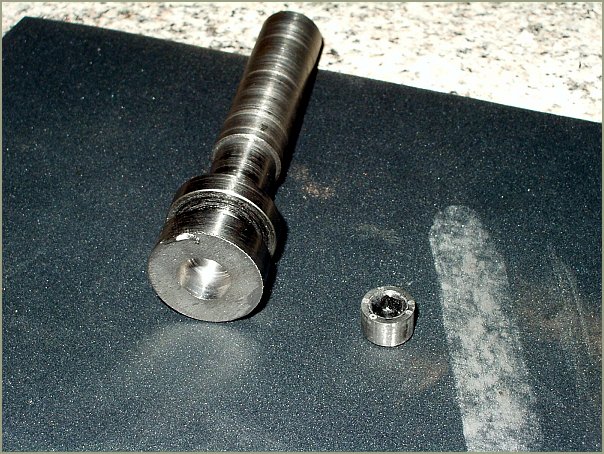

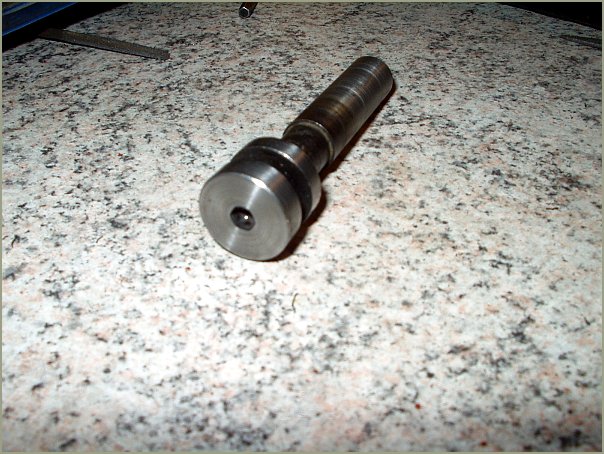

Adjusting screw ready
P2100009 P2100010

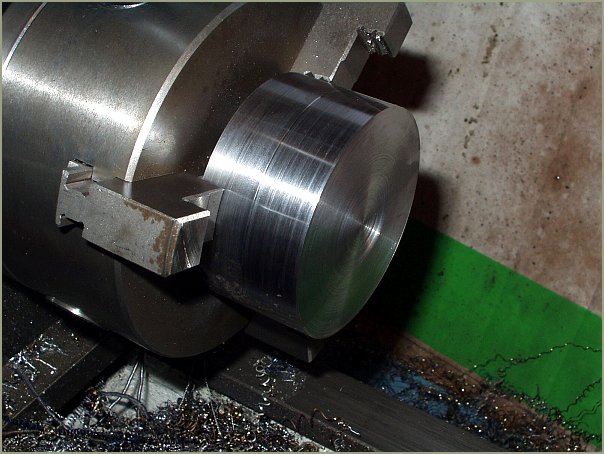

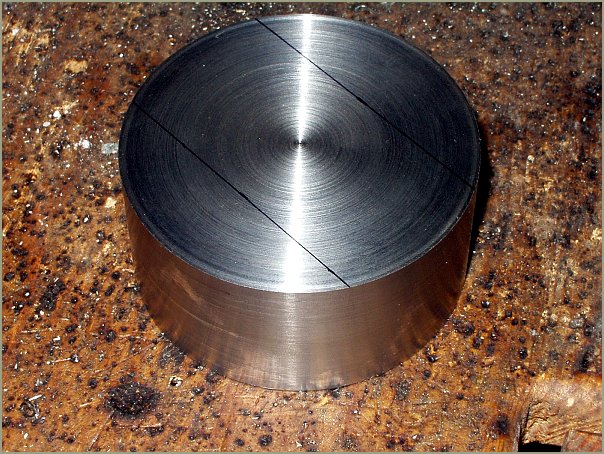

Making of the slide
P2100011 P2100012

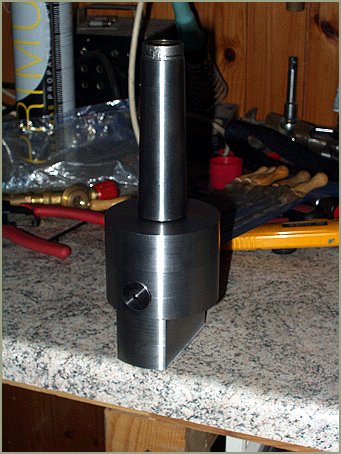

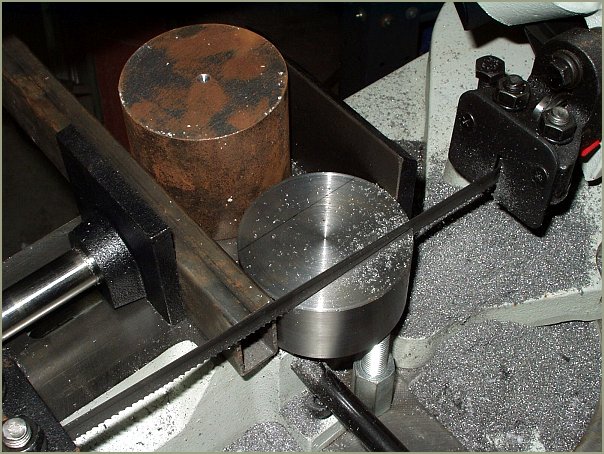

Removing unnecessary parts wit bandsaw
P2100013 P2100014 P2150001

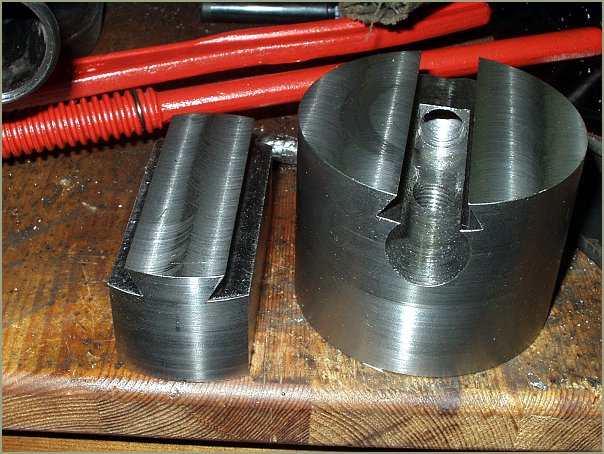

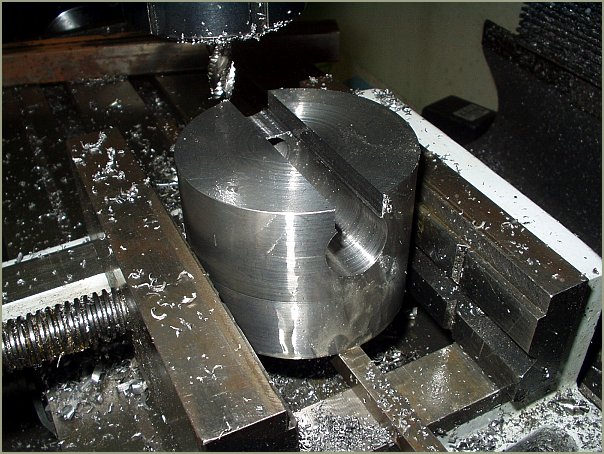

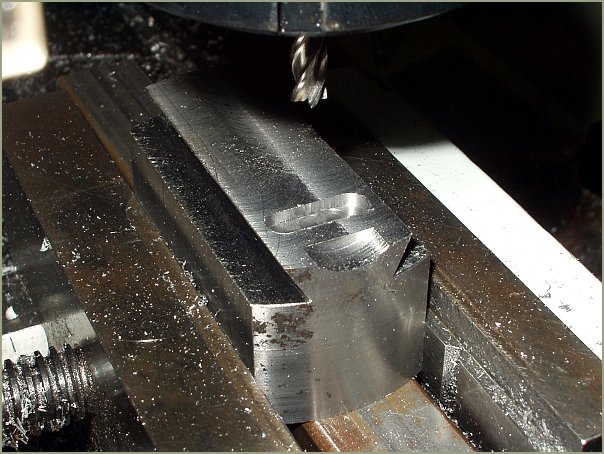

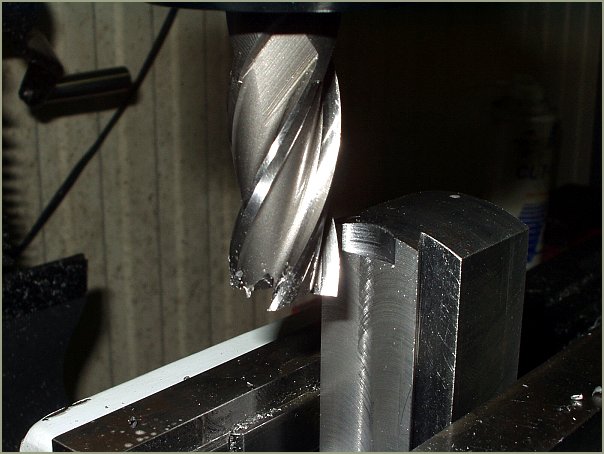

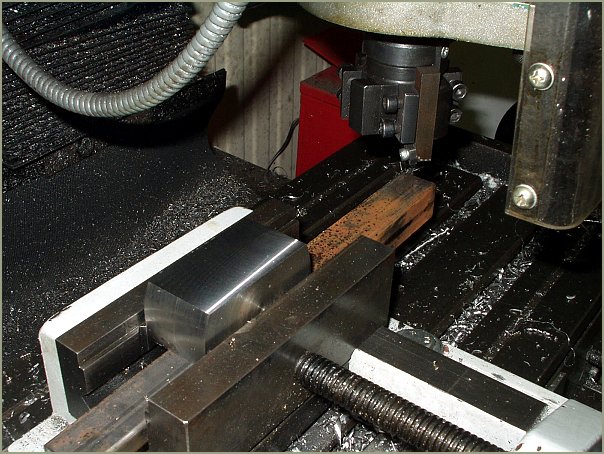

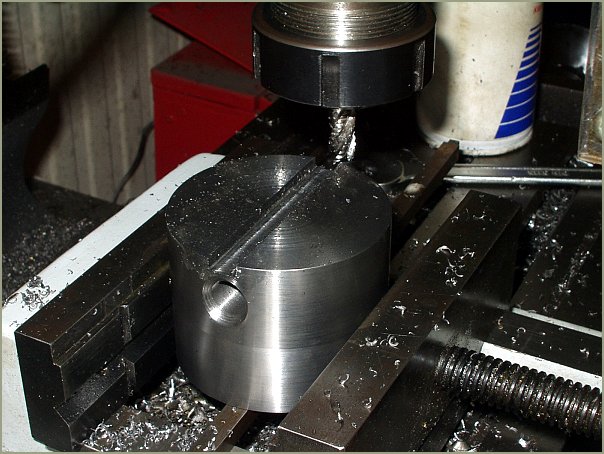

Next job is making of the dove tails

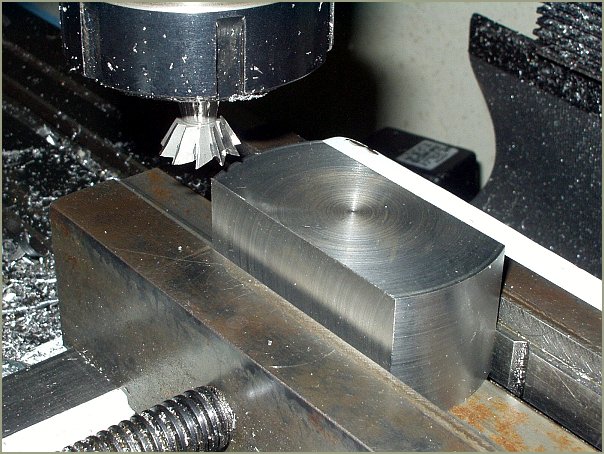

P2150002 P2150003 P2150004 P2150005

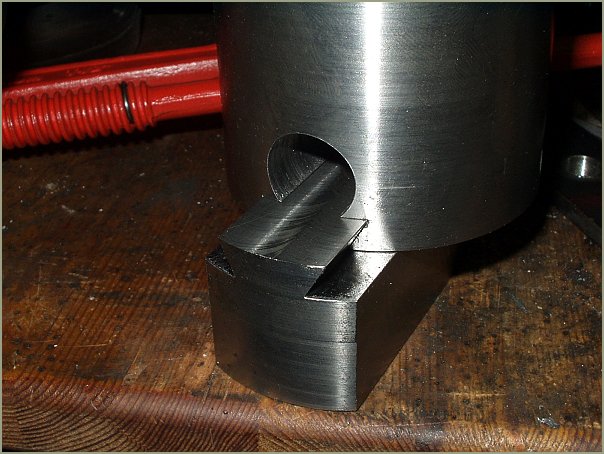

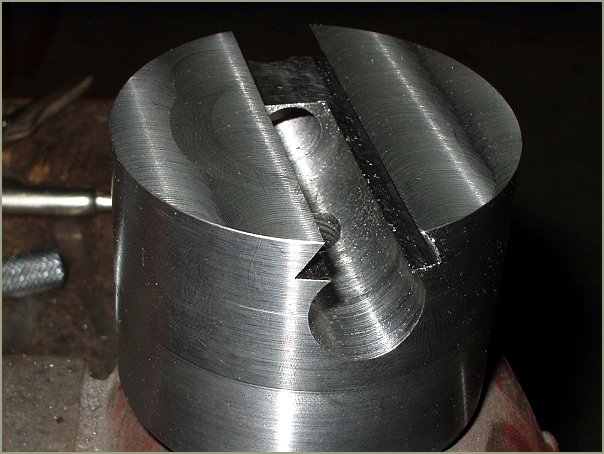

Looks pretty good...
P2150006

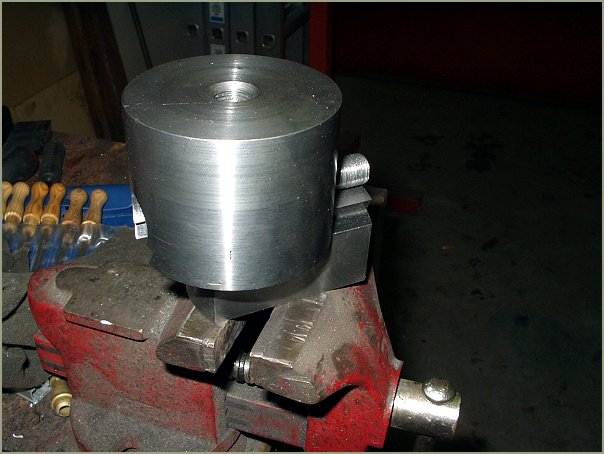

IT FITS!
P2150007 P2150008 P2150009
Seems to work

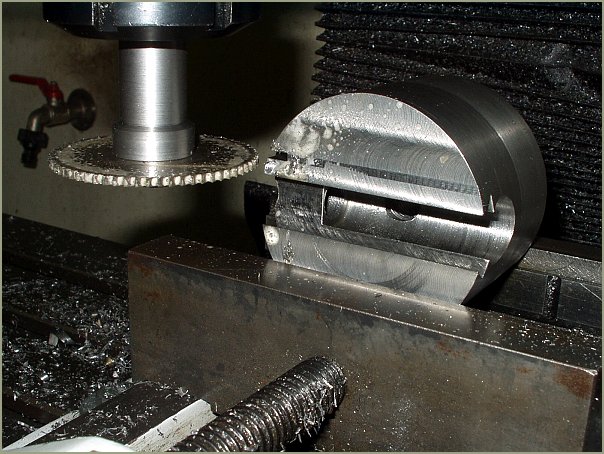

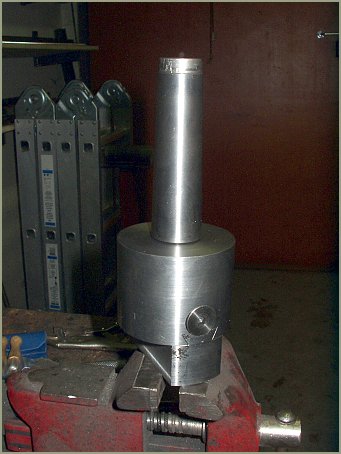

P2150010 P2160001

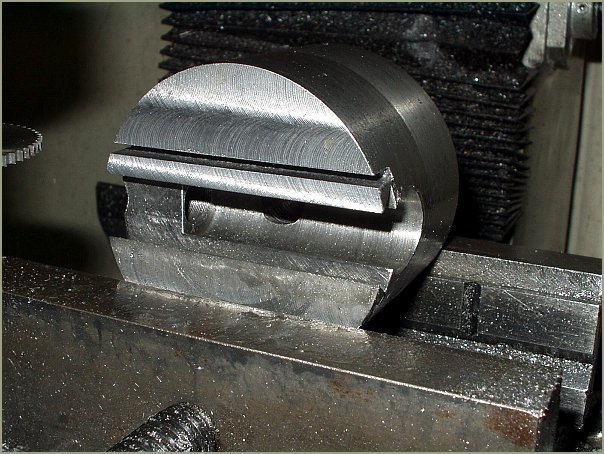

Groove for adjusting

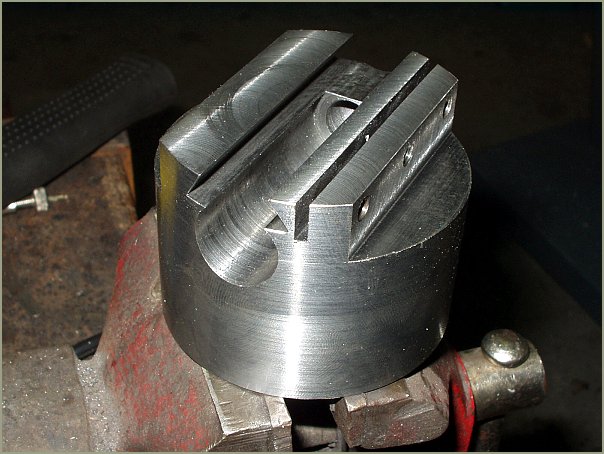

P2160002 P2160003 P2160004

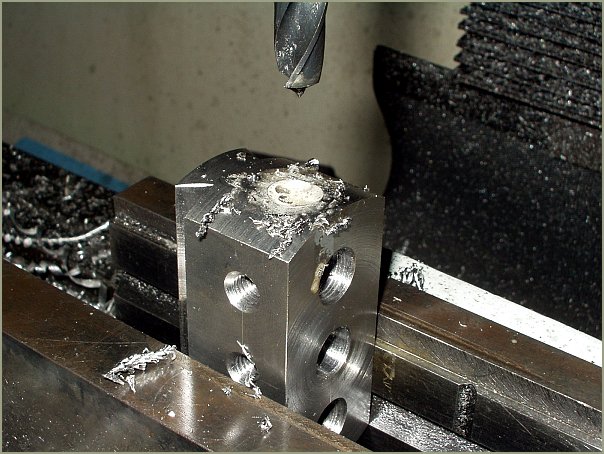

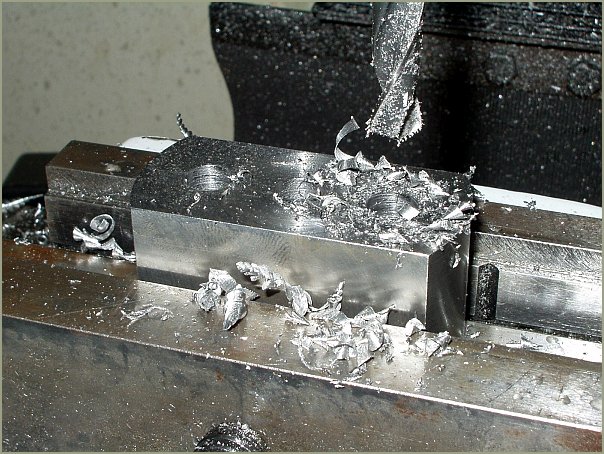

Boring with 11,5mm drill...
P2160005
Boring with 11,5mm drill...
P2160006

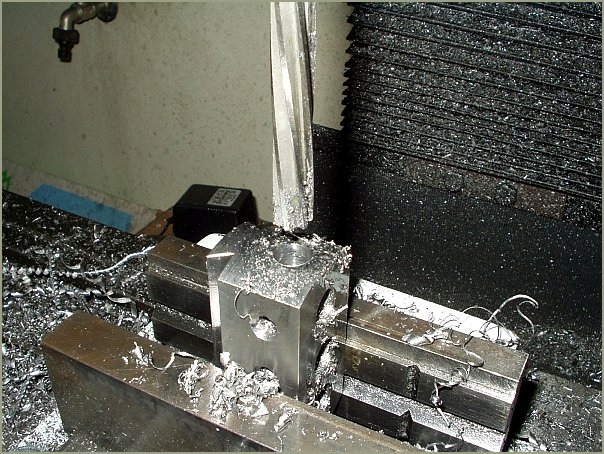

...and then with 12mm reamer
P2160007

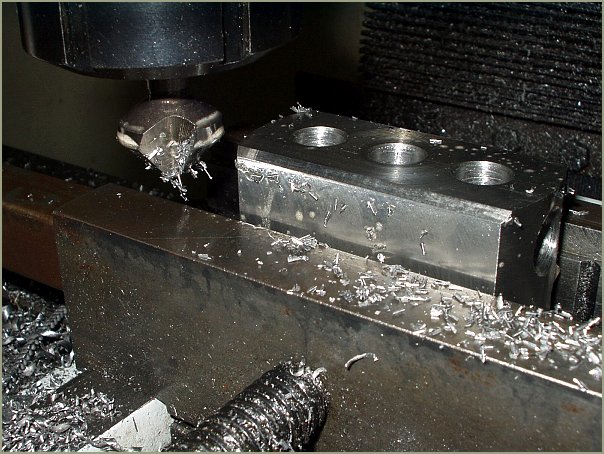

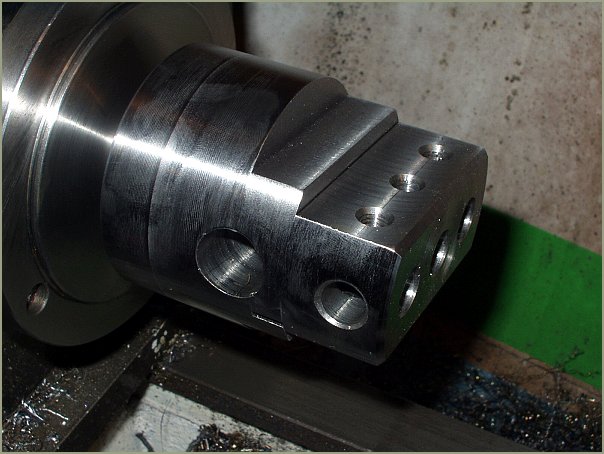

Chamfering corners
P2160009
The slide is fixed to body and then slightly machined
P2170001

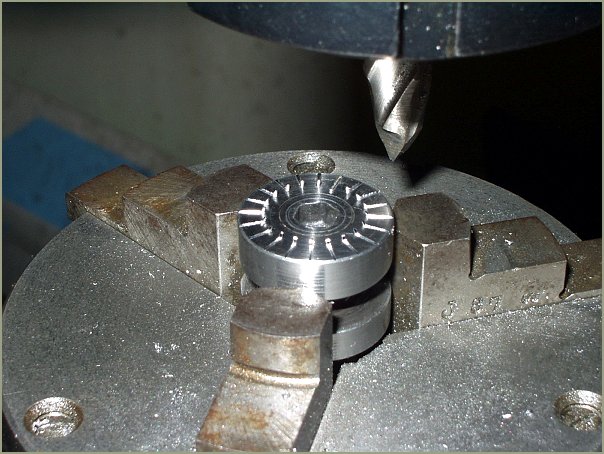

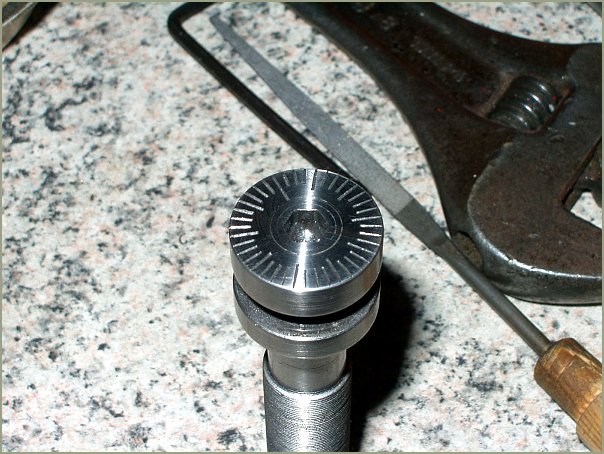

Engraving scale marks to adjusting screw
P2170002 P2170003

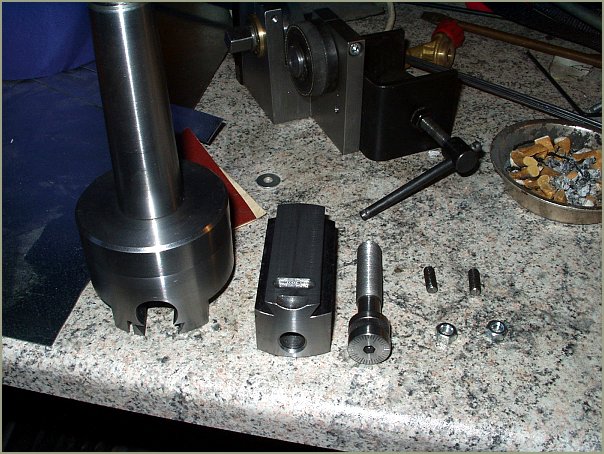

All parts done

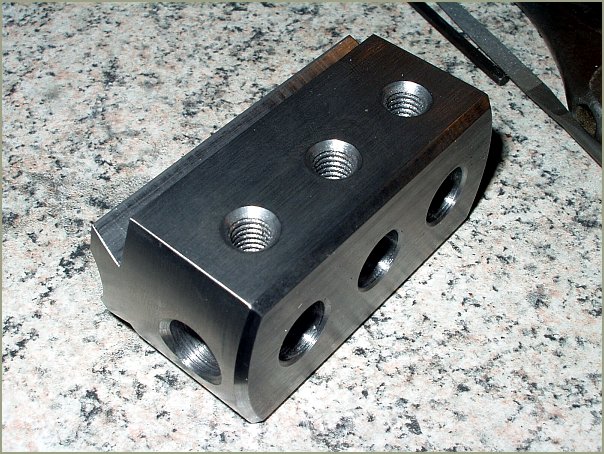

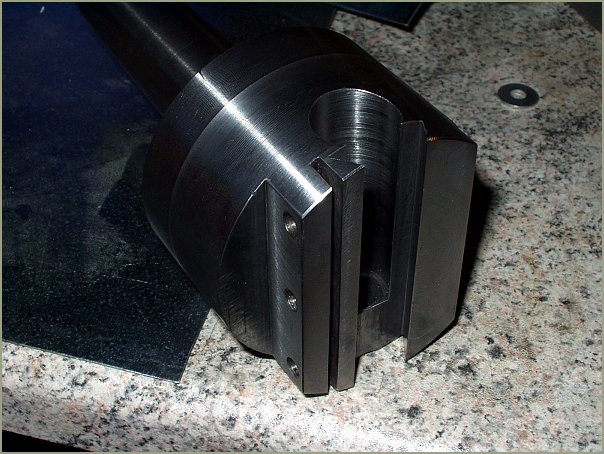

P2170004 P2170005 P2170006

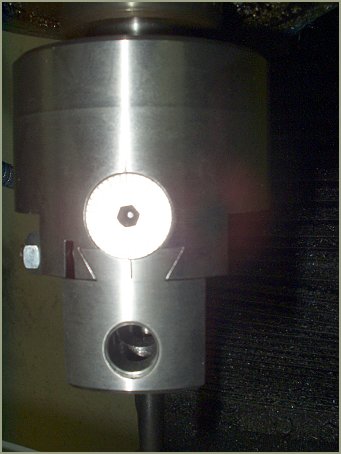

It's ready to use

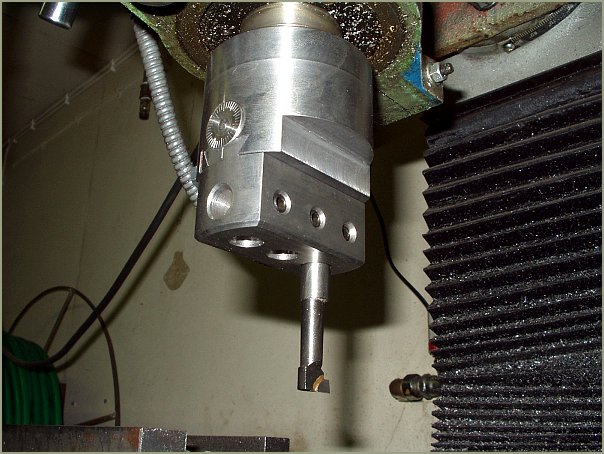

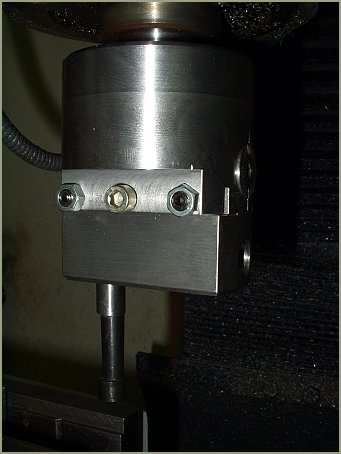

P2170007 P2170008
