m_Controller1

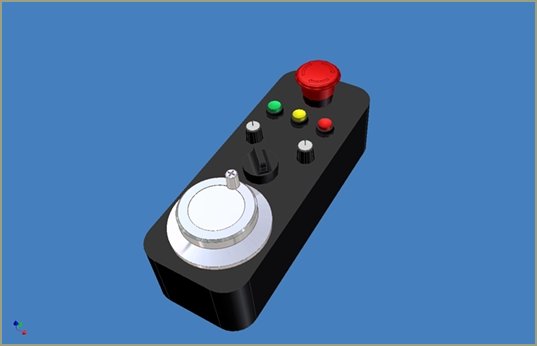

Several design for controller
First one
m_Controller2

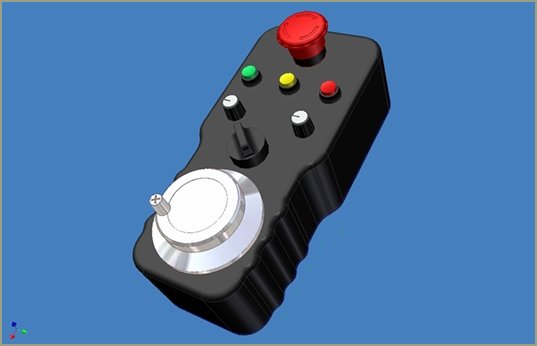

Second one
m_Controller3

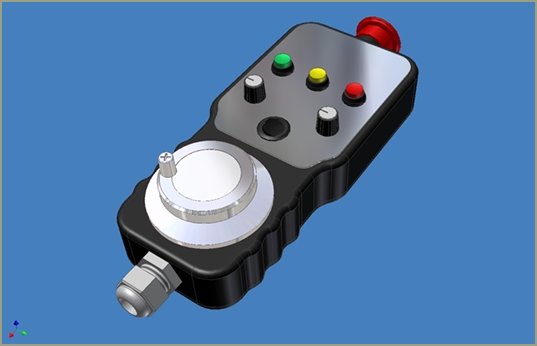

And the one
P1010002

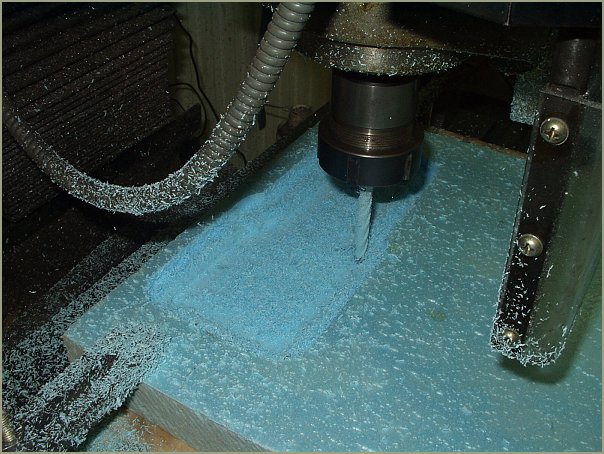

Making of casting mold. Made of polyurethane.
P1010003 P1010004

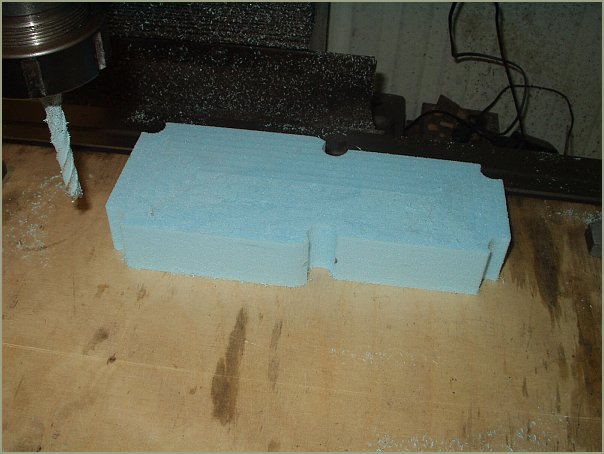

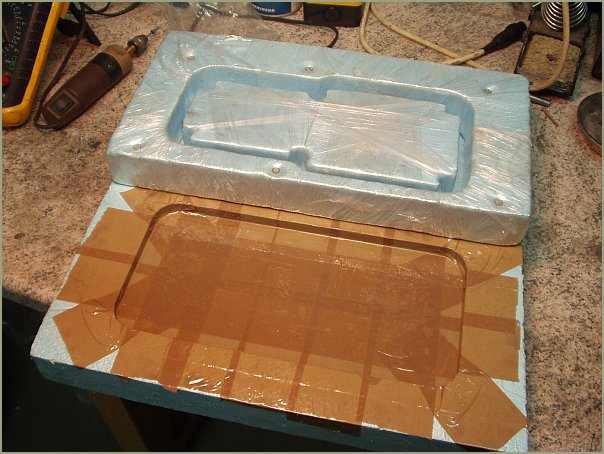

Mold is ready
P1010005

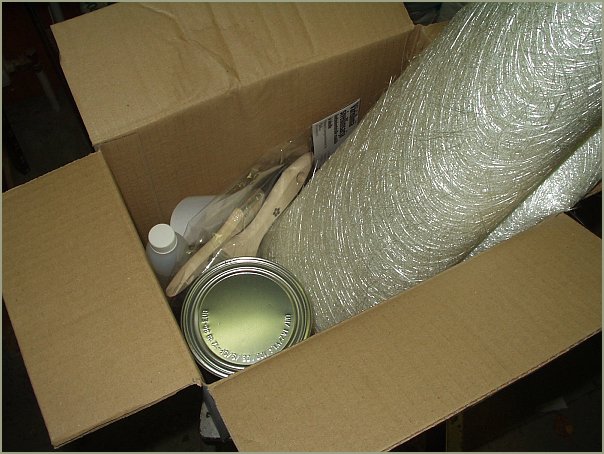

Fiberglass and other stuff for casting
P1010006

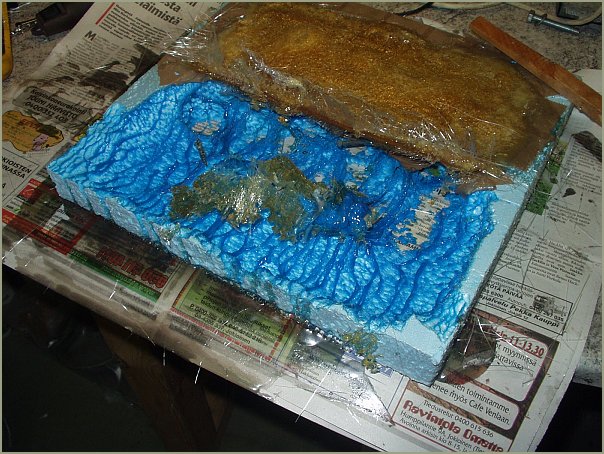

Mold after casting. It didn't hold up.
I knew that it won't hold up. Thankfully it hold long enough.
P1010007

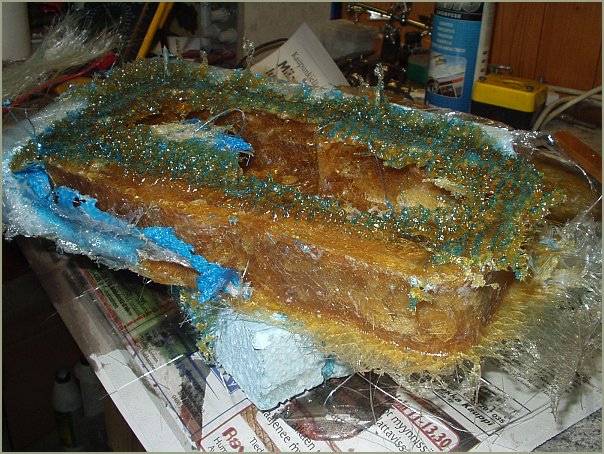

Not that nice but good enough
P1010008 P1010009

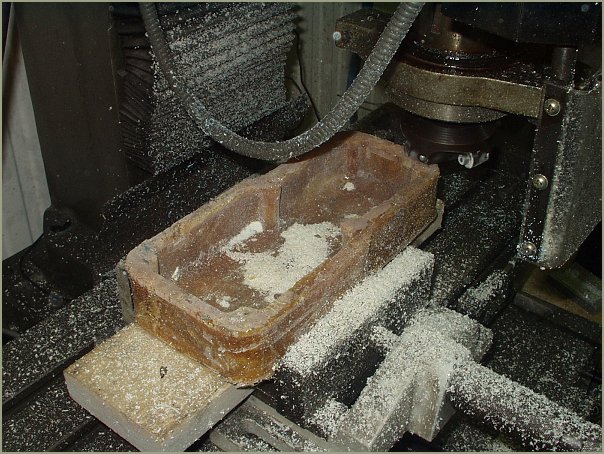

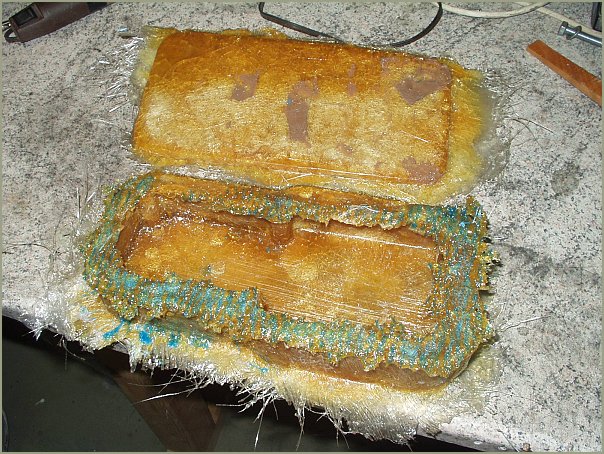

Make it little bit nicer
P1010010

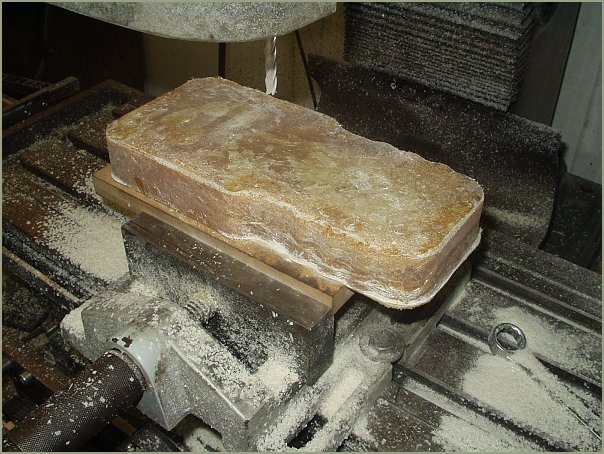

Roughing the right shape. I machined it little bit under dimensions because...
P1010011

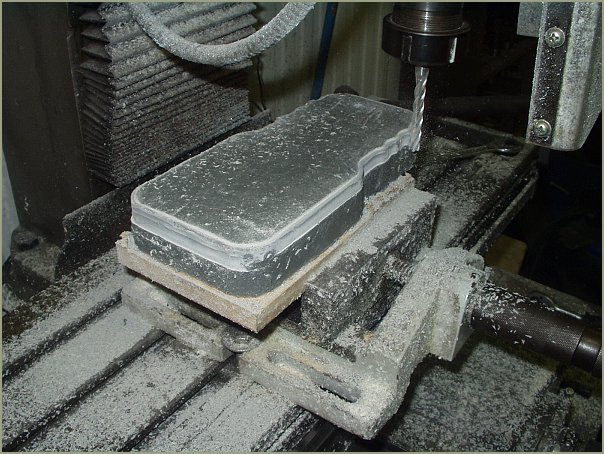

I covered it with Plastic Padding Chemical Metal and then machined with right dimension.
P1010012

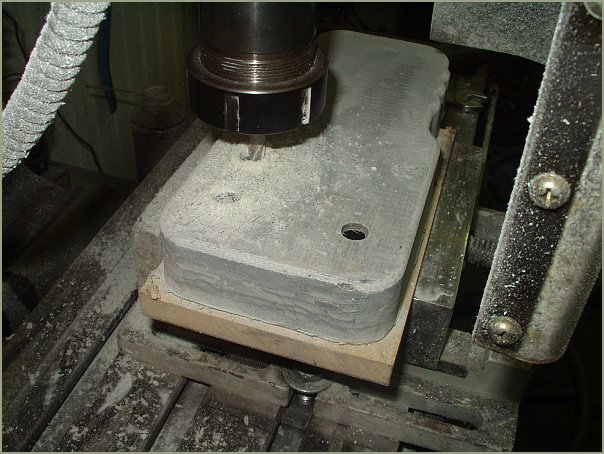

Switch holes
P1010013 P1010014

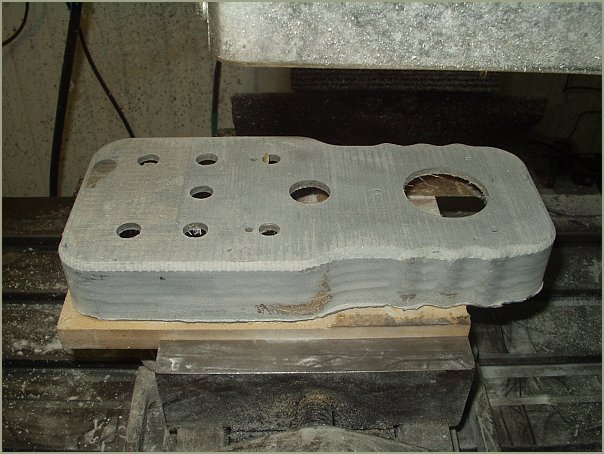

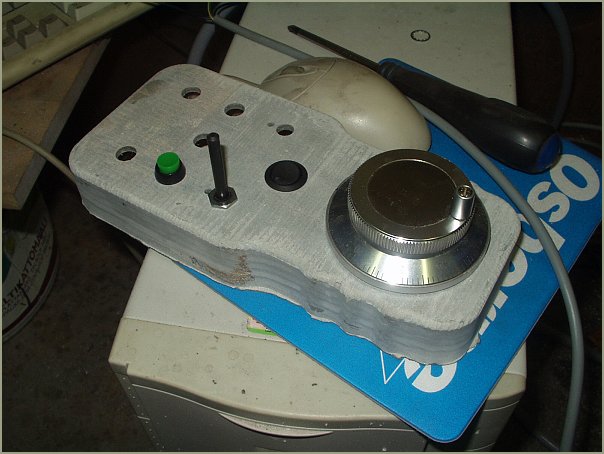

Everything seems to fit
P1010015

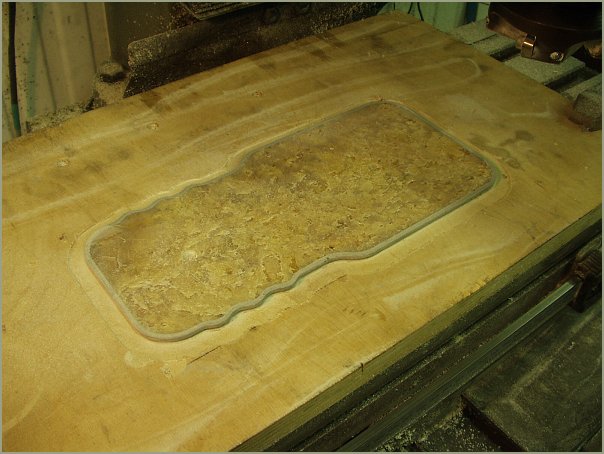

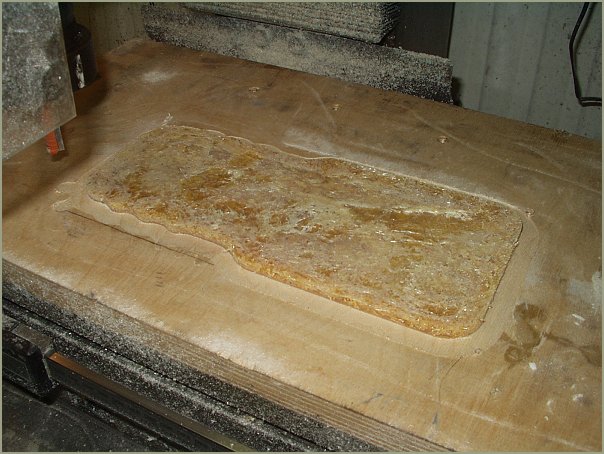

Back lid
P1010016 P1010017 P1010018 P1010019

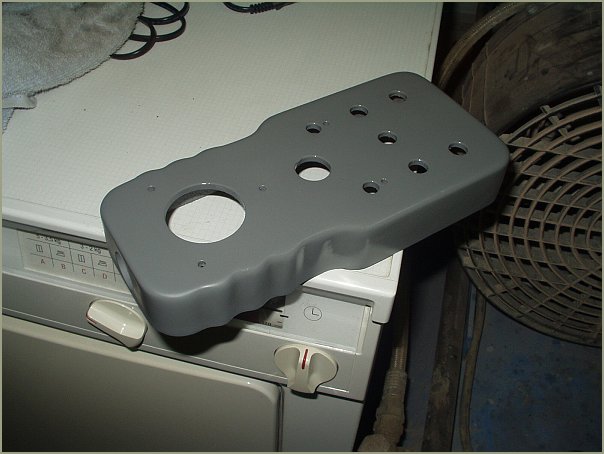

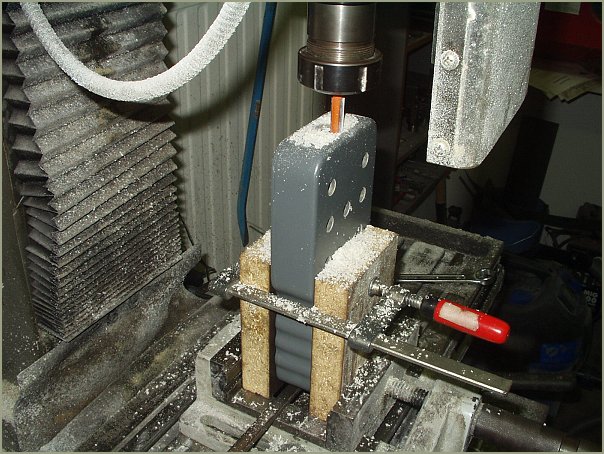

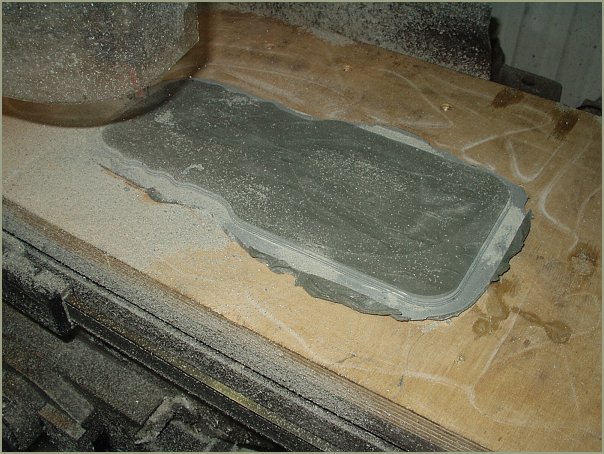

After grinding and basecoating
P1010020 P1010021

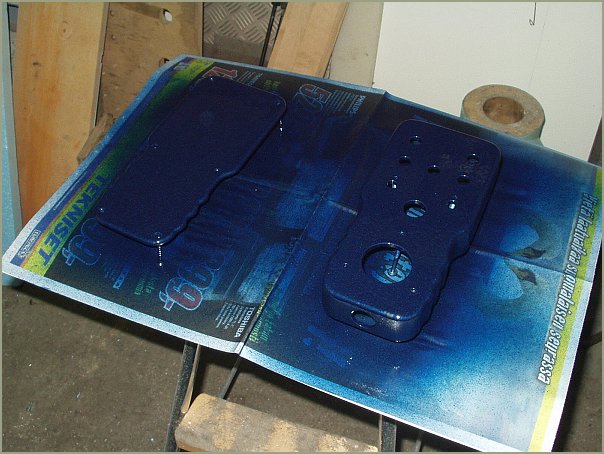

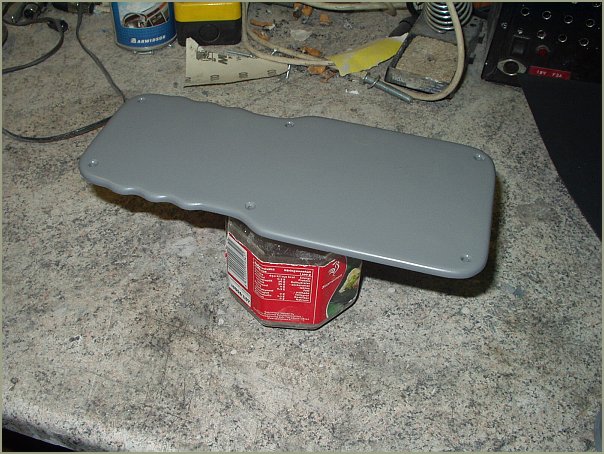

And painted
P1010022

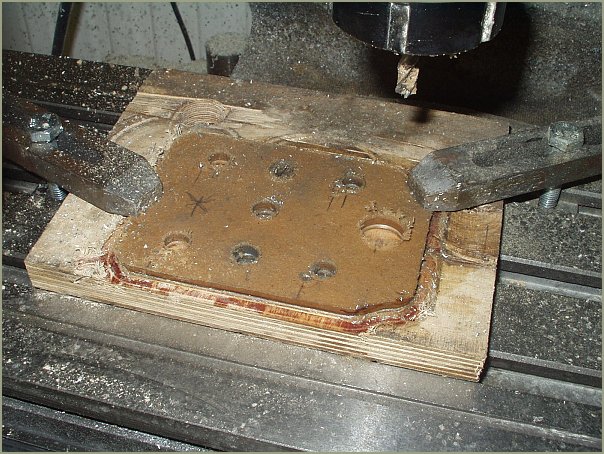

Text plate (1mm aluminium) in between two boards that it won't bend
P1010023 P1010024 P1010025

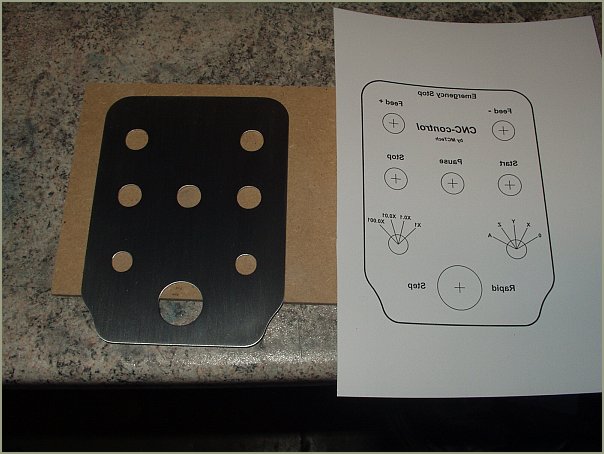

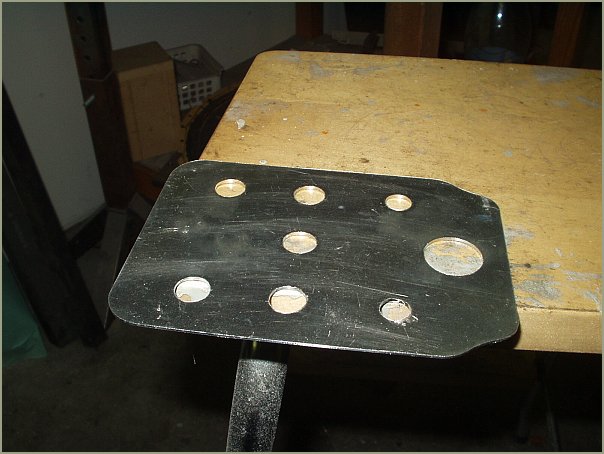

After polishing it's time to make the texts
P1010026

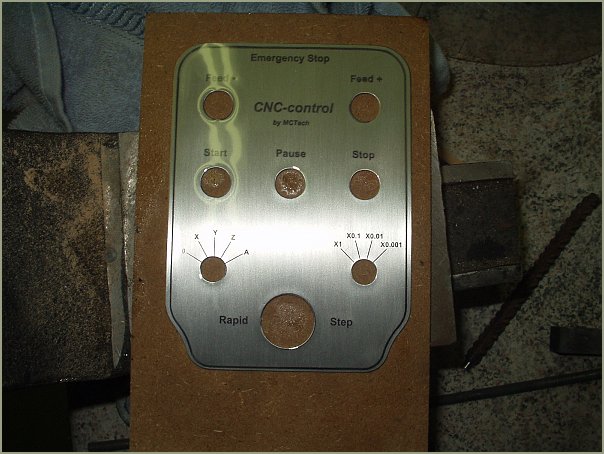

Pretty good
P1010027

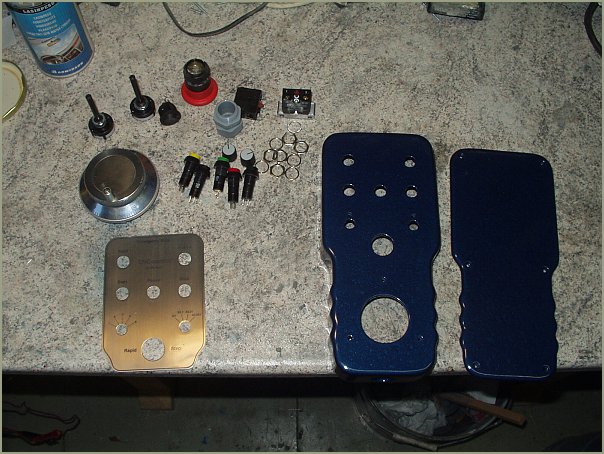

All parts ready for assembling
P1010028

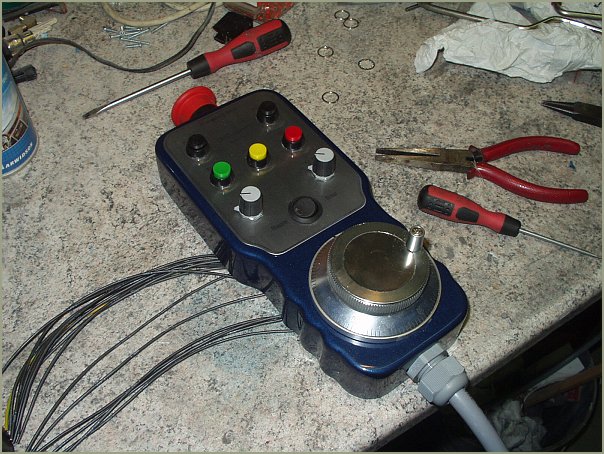

Switches mounted
P1010029

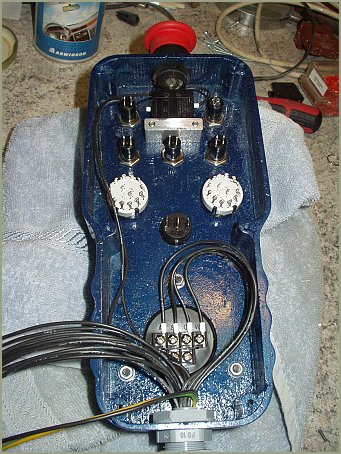

Wiring
P1010030

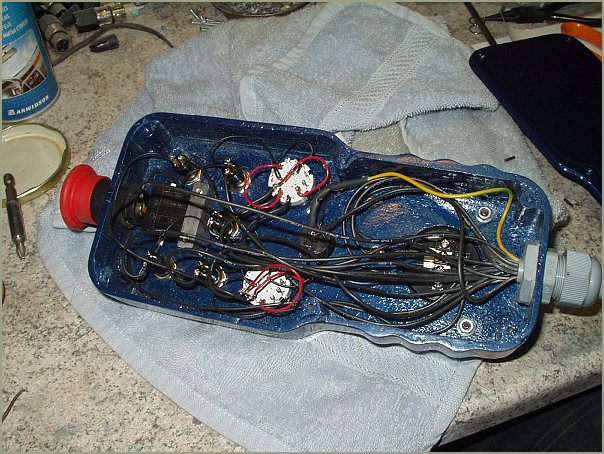

Wiring ready
P1010031

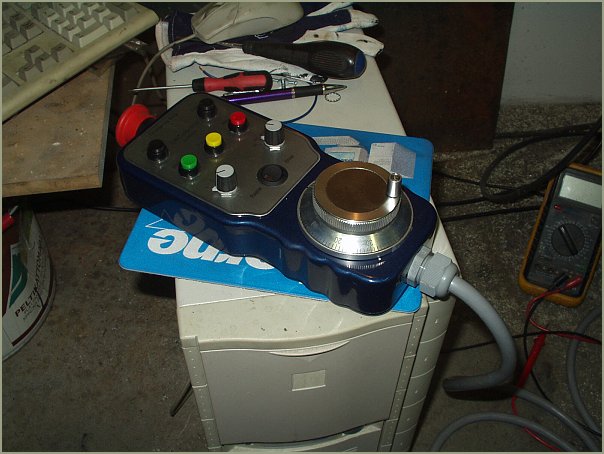

Connected and ready to use.
