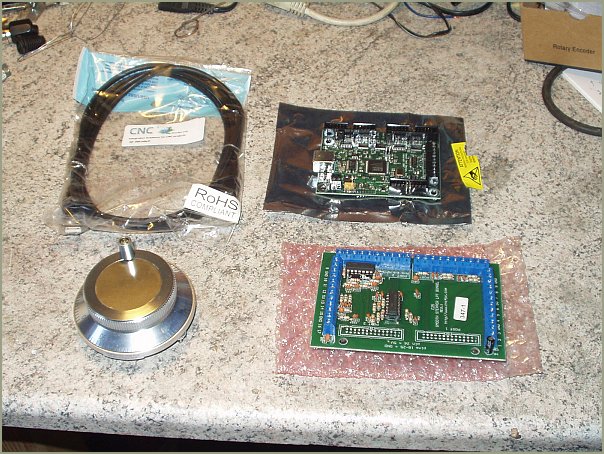

P1010003
New interface card Smoothstepper with BoB and MPG from CNC4PC US

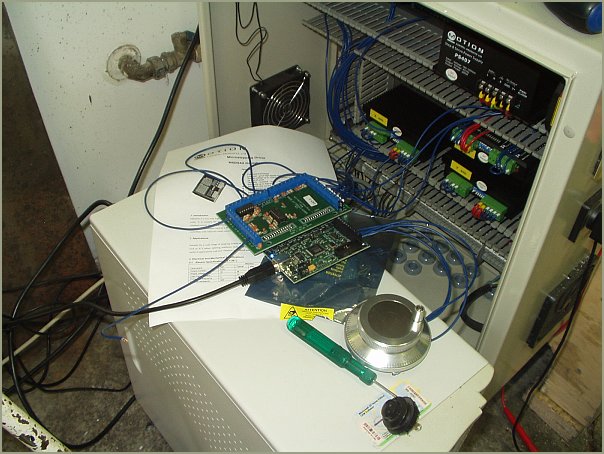

P1010004
Testing before install
P1010005

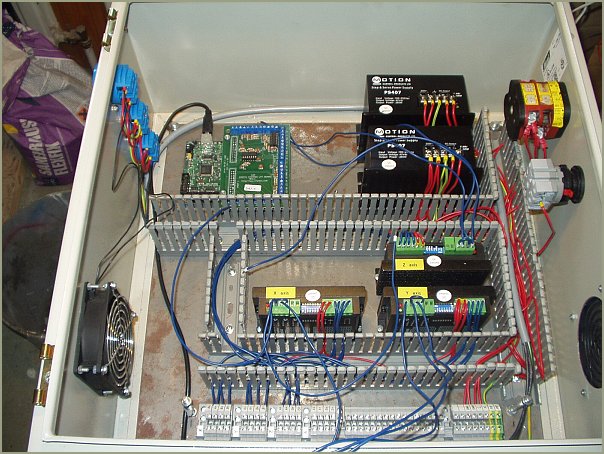

New interface installed

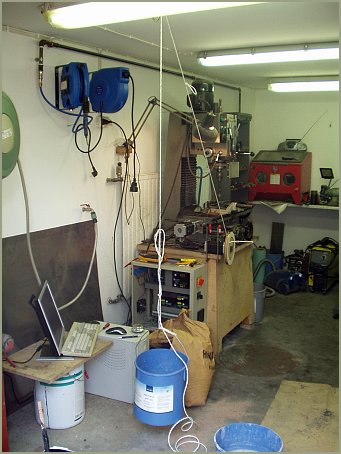

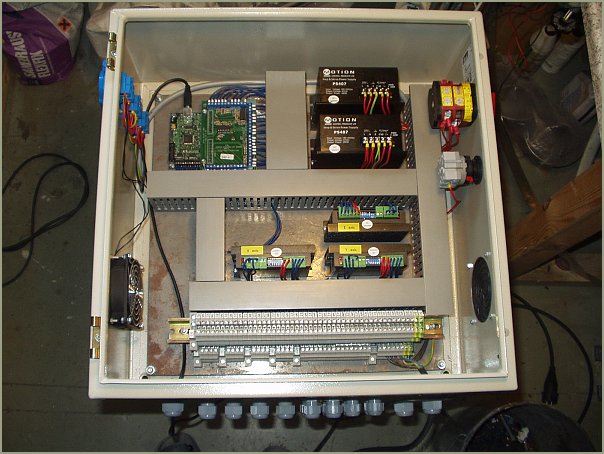

P1010006 P1010007
Before I ordered those screws I measured motor's torque with different RPM

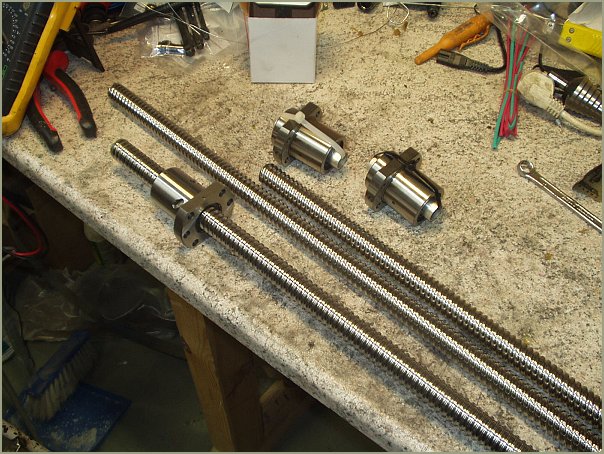

P1010008
New ballscrews from Zapp Automation UK. Cost about 390 eur.
20mm pitch for X- axis and Y-axis and for Z-axis I decided to use 5mm pitch

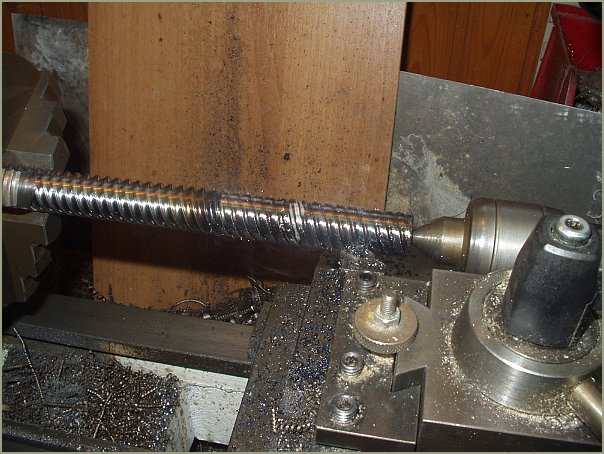

P1010009 P1010019

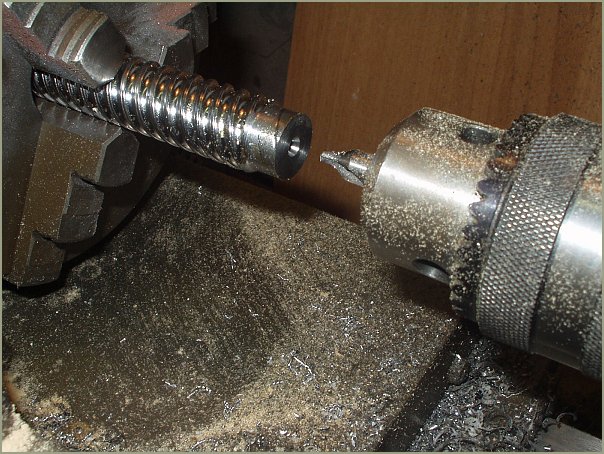

Machining the screws. Those are pretty hard metal.

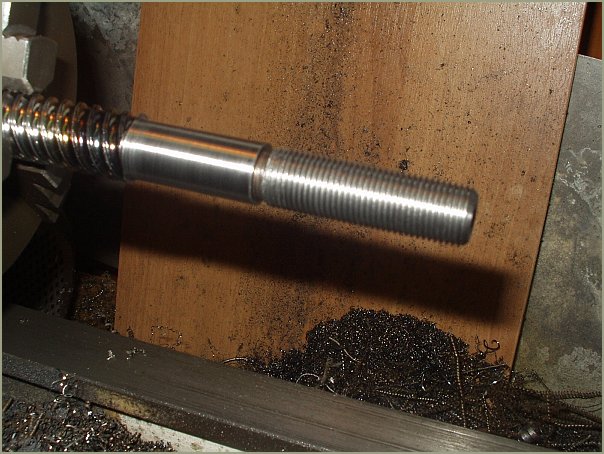

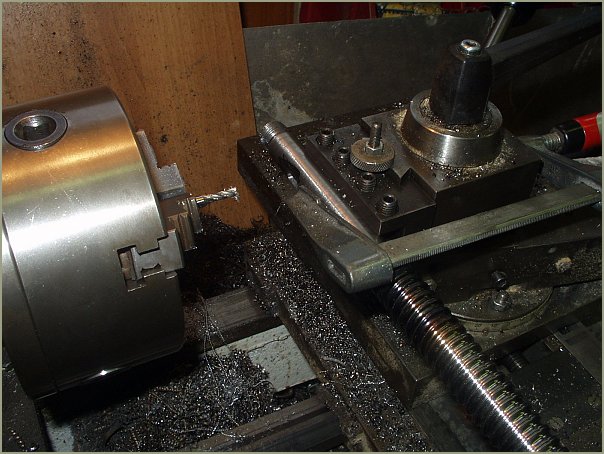

P1010020 P1010022
Milling with lathe

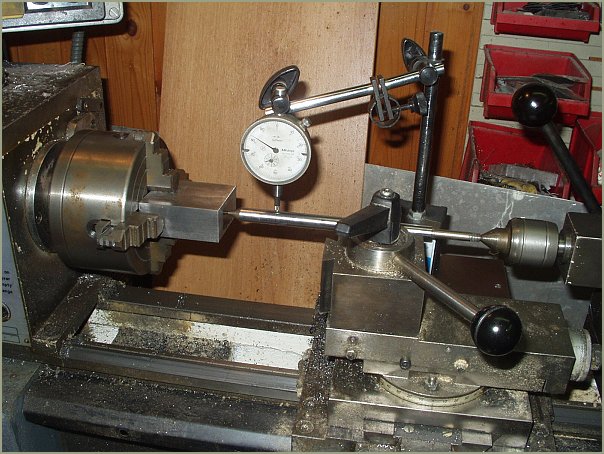

P1010010
Ballnut block for Y-axis

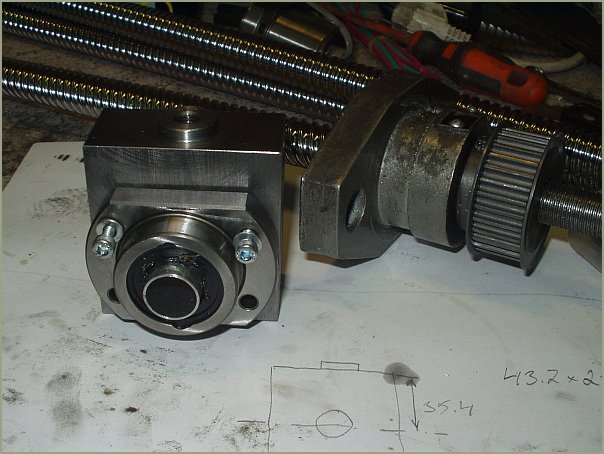

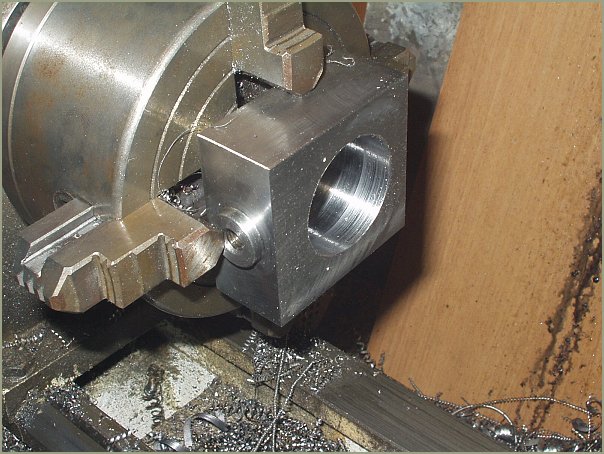

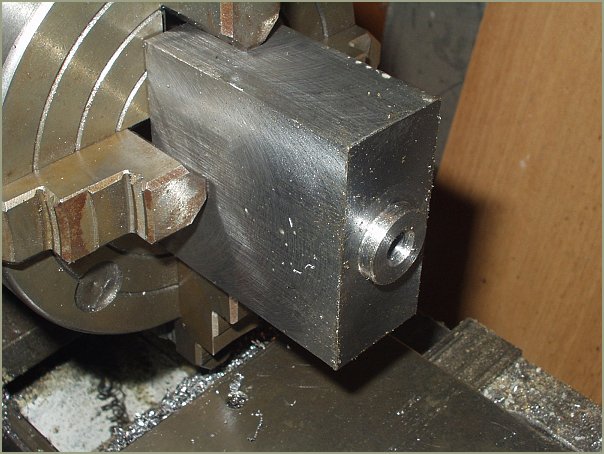

P1010011 P1010012 P1010013 P1010014 P1010015

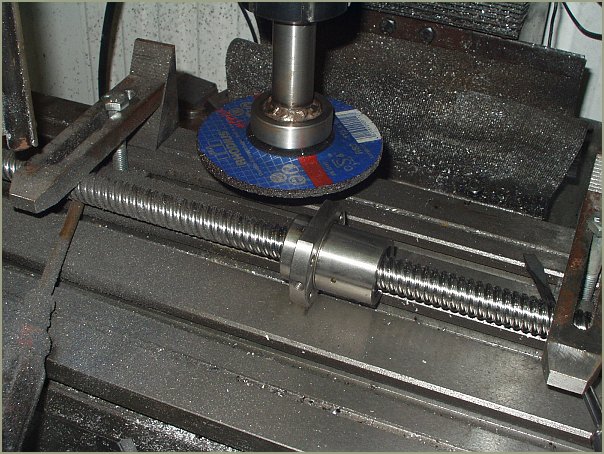

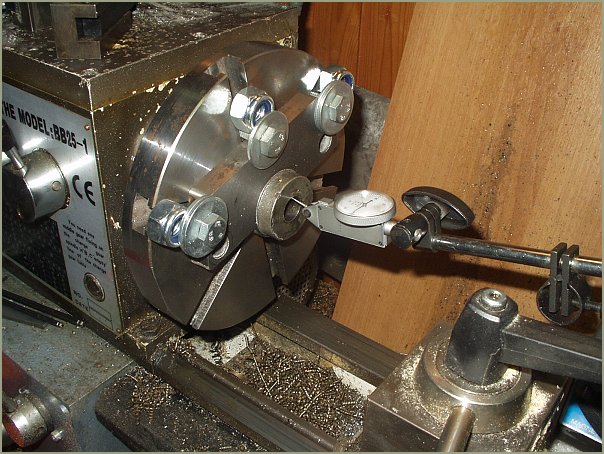

Centering

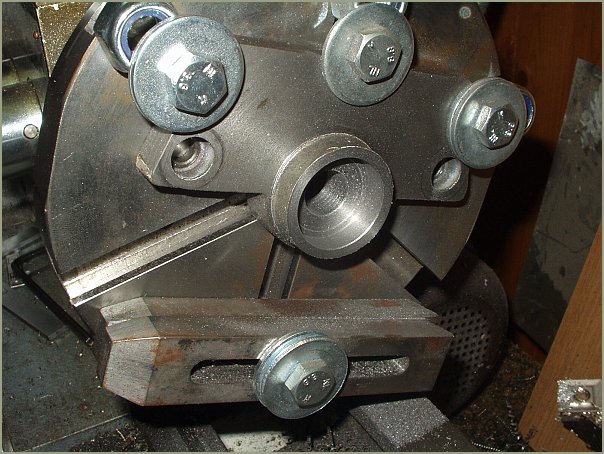

P1010016
More space for new ball bearing

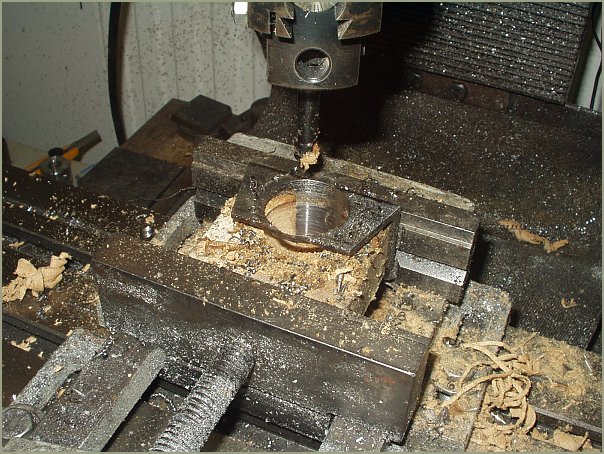

P1010017
Bracket for X-axis ballnut

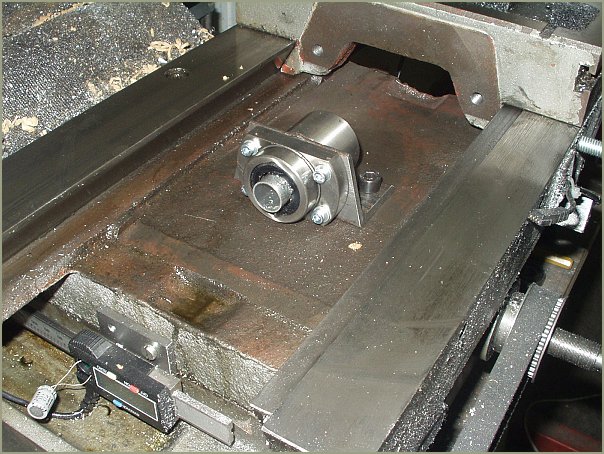

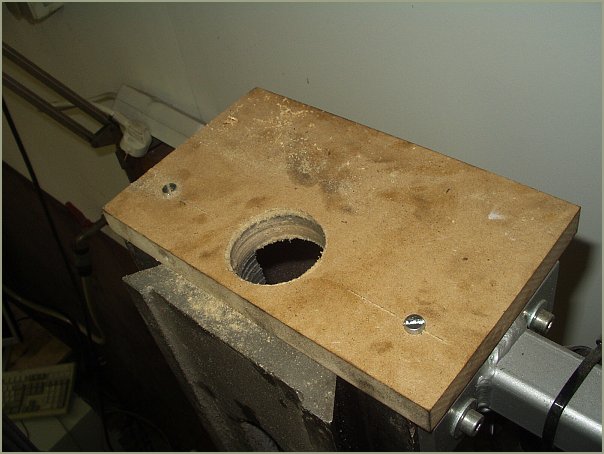

P1010018 P1010023
Need more space for Z-axis screw

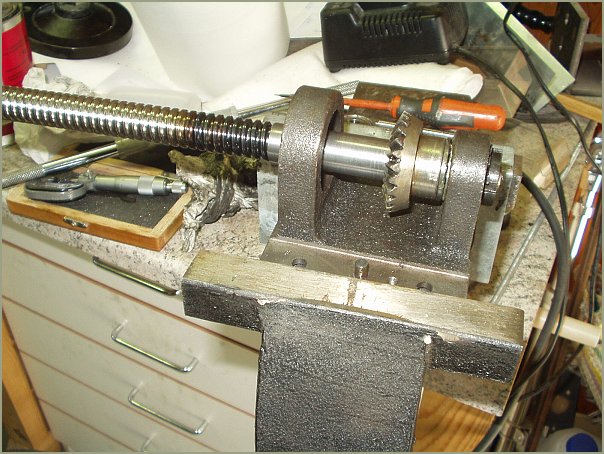

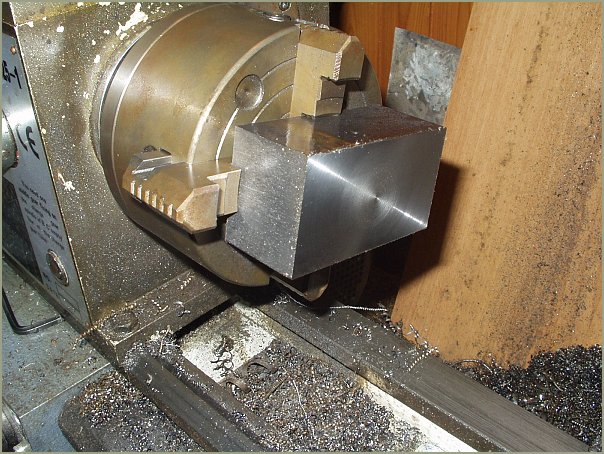

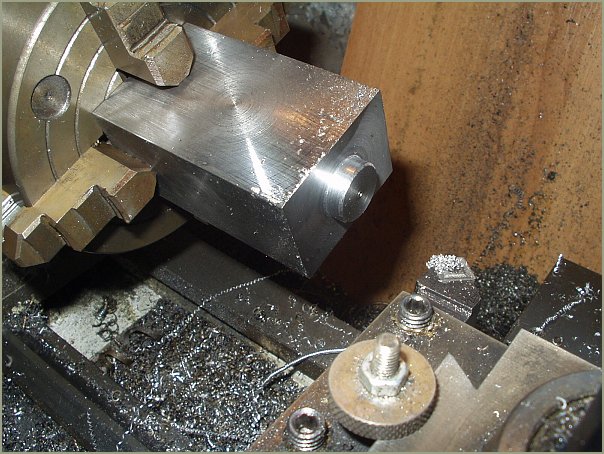

P1010024 P1010025
Z-axis ballnut block

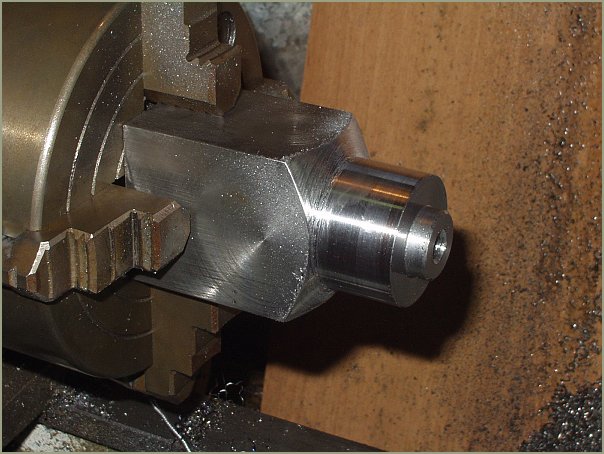

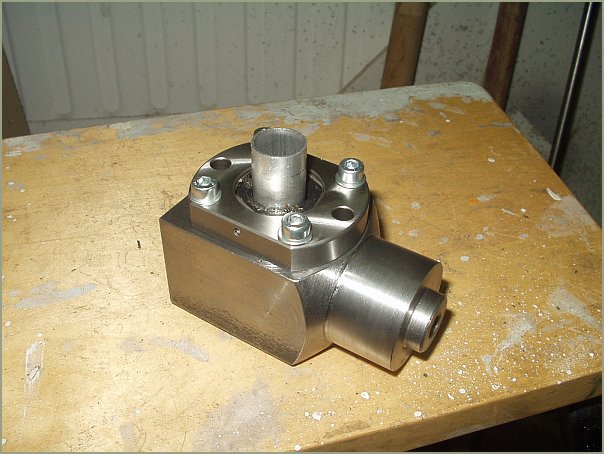

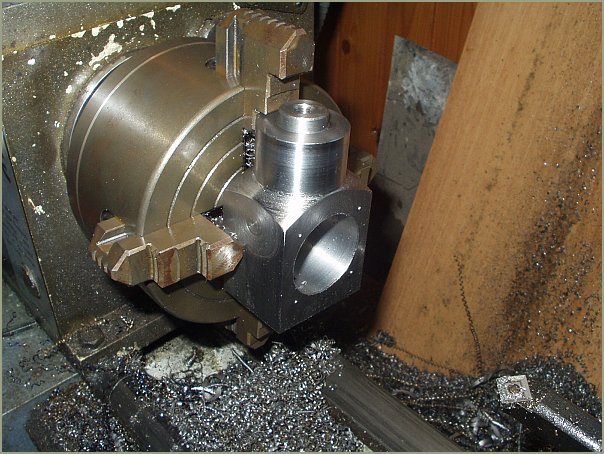

P1010026 P1010027 P1010028 P1010029
I had to make all these parts with lathe because...
P1010021
...my milling machine looked like this

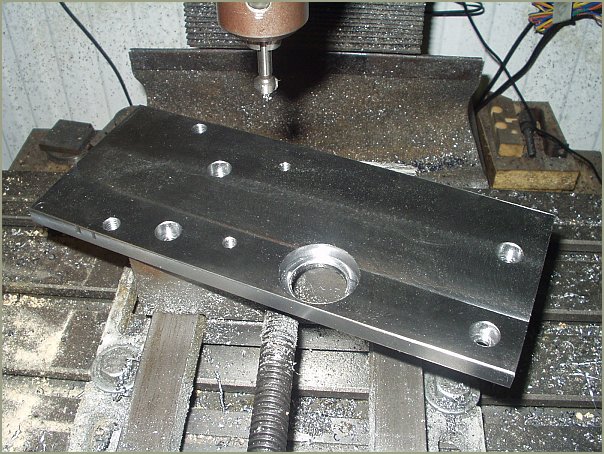

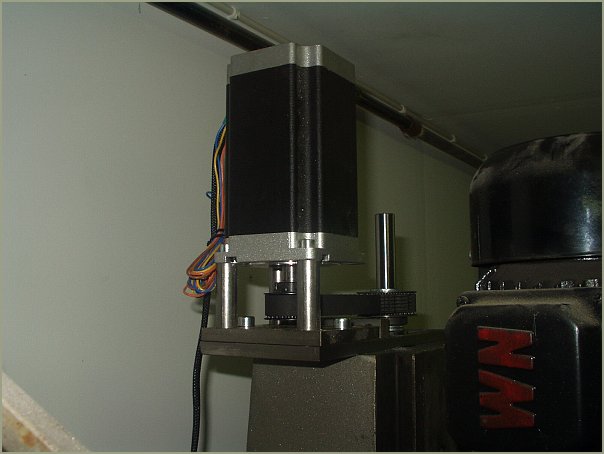

P1010030
New motor mounting for Z-axis
P1010031
After testing I'm pretty happy with new system.
X & Y axis speeds are now about 2500-3000mm/min (before 400mm/min)
Z axis speed is about 500mm/min (before 110mm/min)
