info PB180025

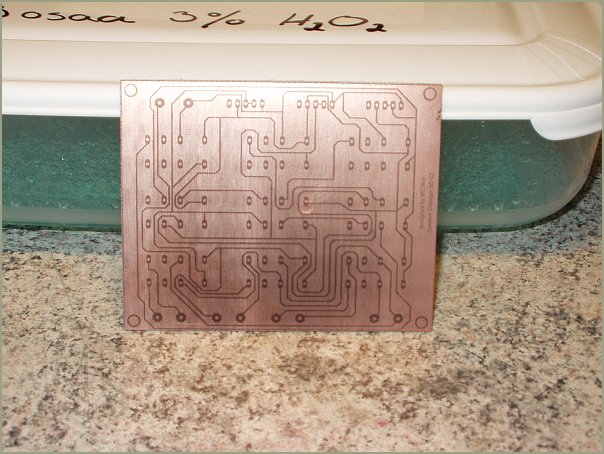

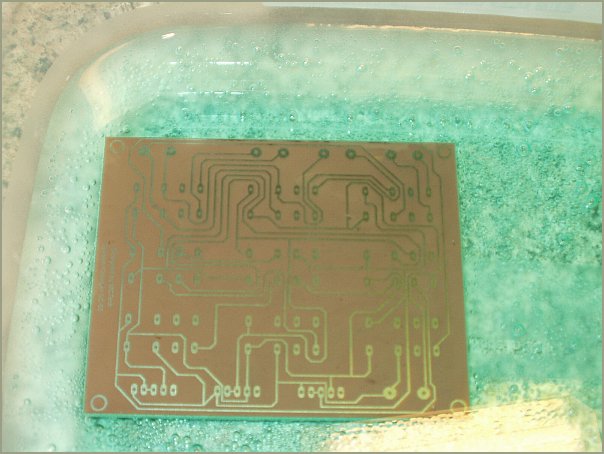

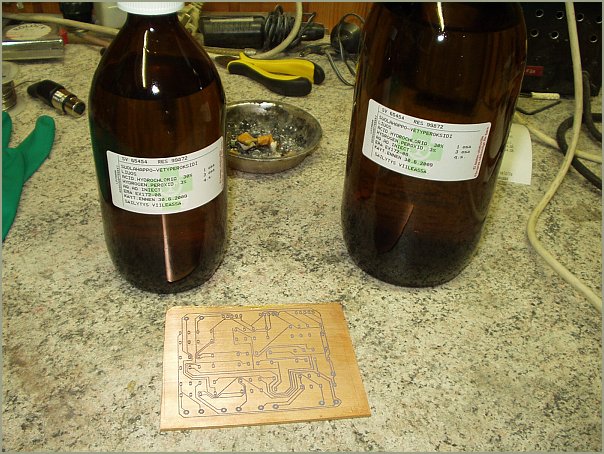

I bought some chemicals from drugstore
PB180027

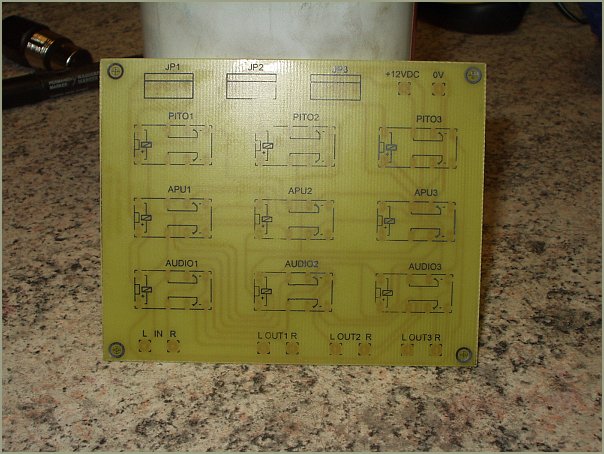

PCB layout was designed with EAGLE software
PB180028 PB180026 PB180029

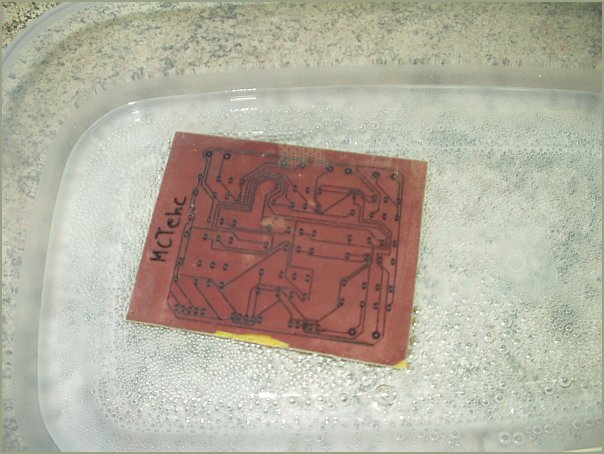

Part layout was printed on glossy inkjet photopaper with laser printer and then ironed it on board.
Removing the paper is a hard job. You have to soak it in water quite a time and then use soft brush or something like that.
PB200030

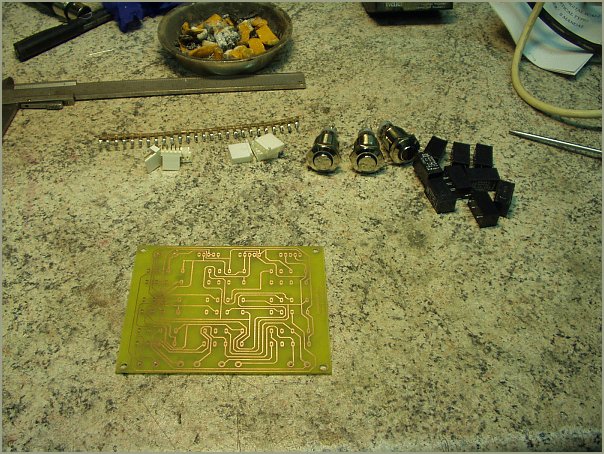

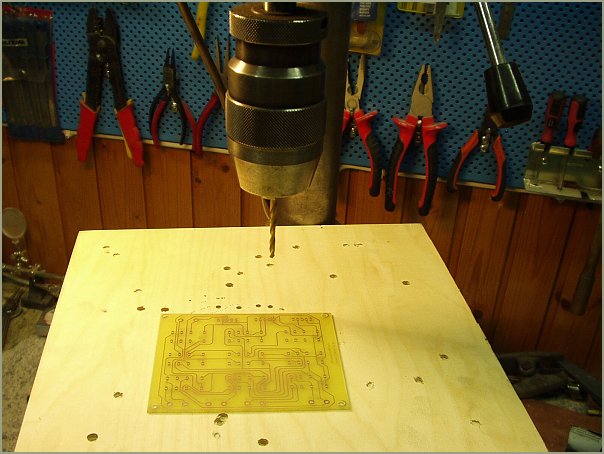

Drilling holes. For components 0,7mm and for wires 1,5mm
PB200031 PB200032 PB200033 PB200034

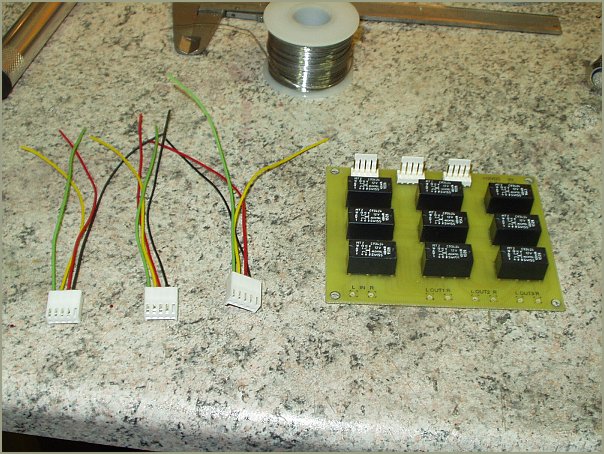

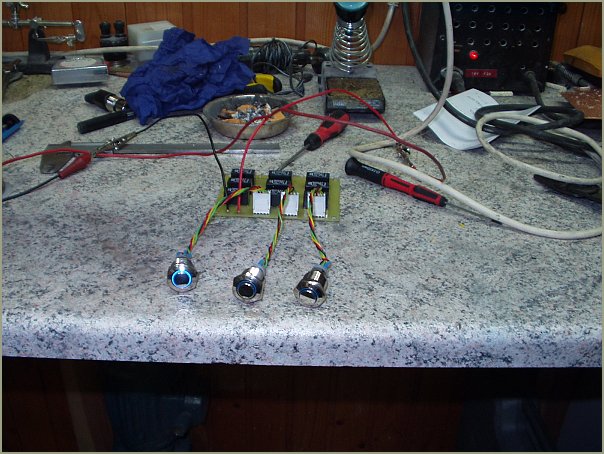

First test and it seems to work
PC030035

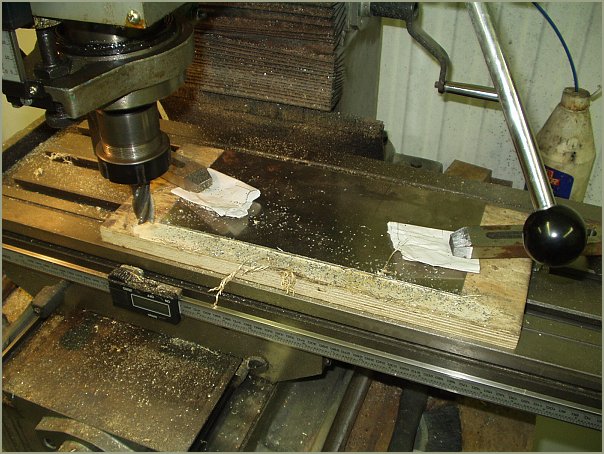

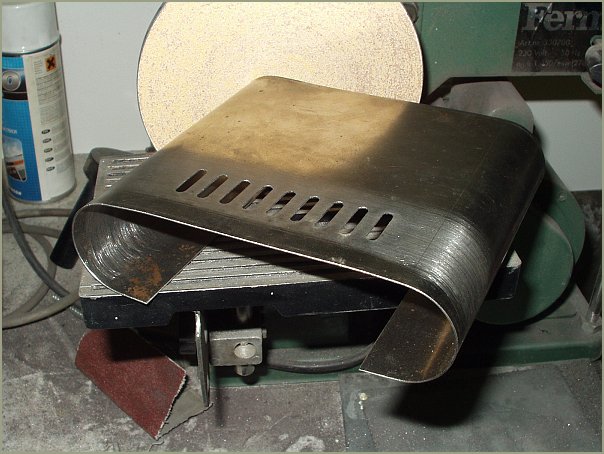

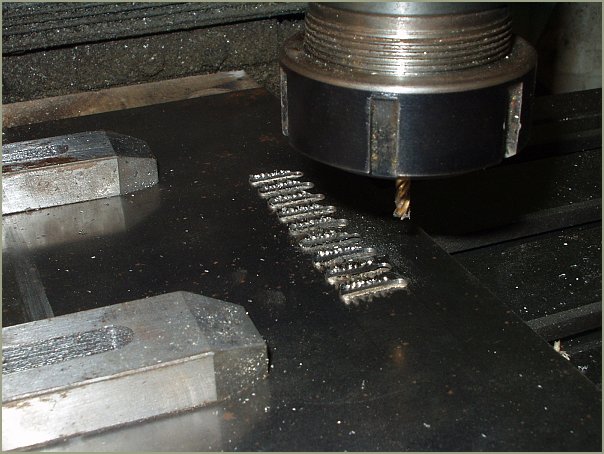

Making of the case. Sheet metal 0,75mm
PC030036 PC030037

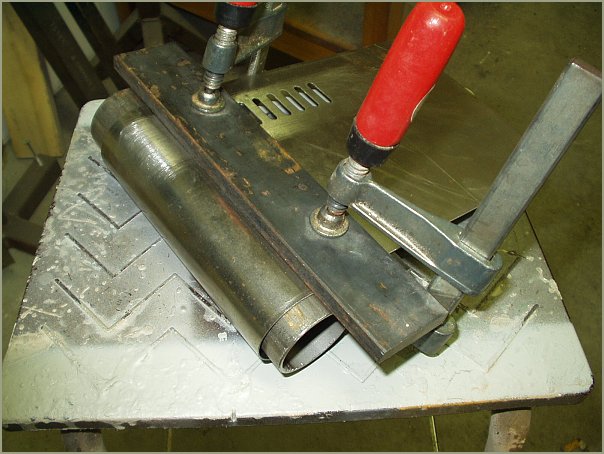

Bending jig
PC030038 PC050039

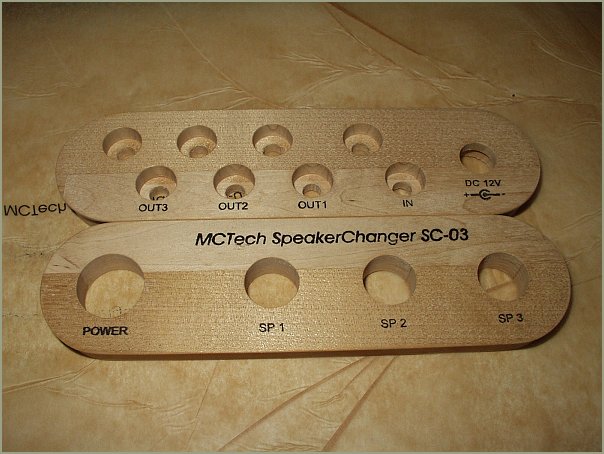

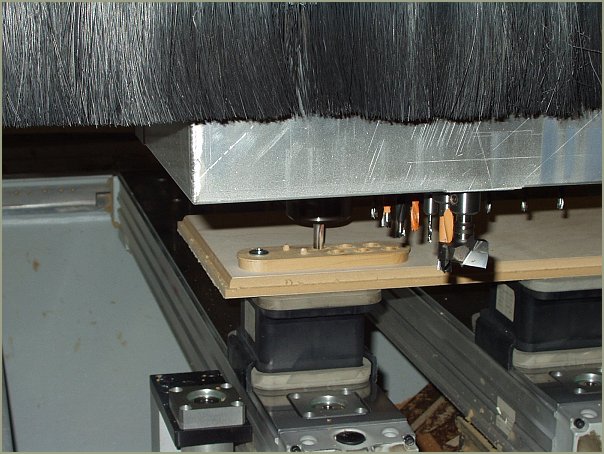

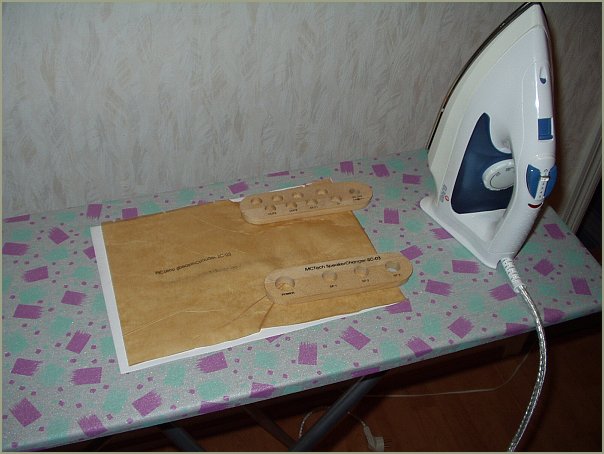

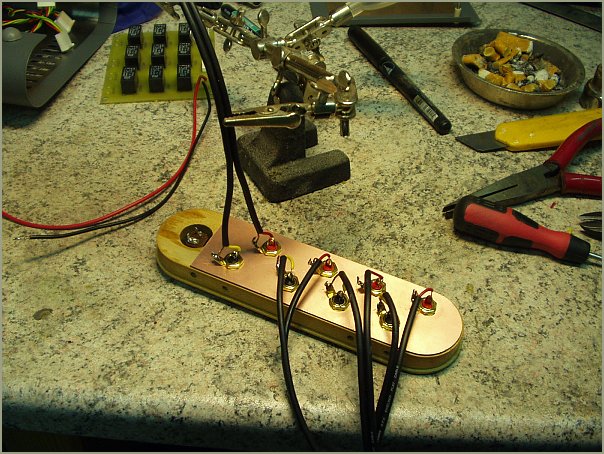

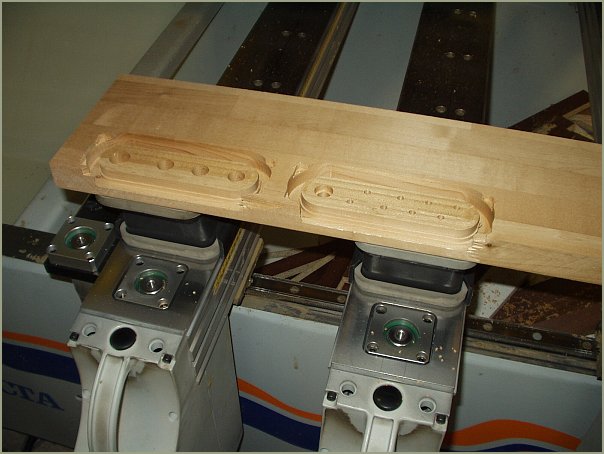

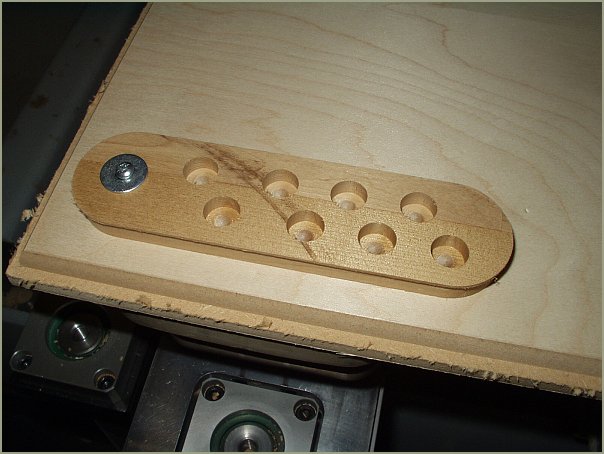

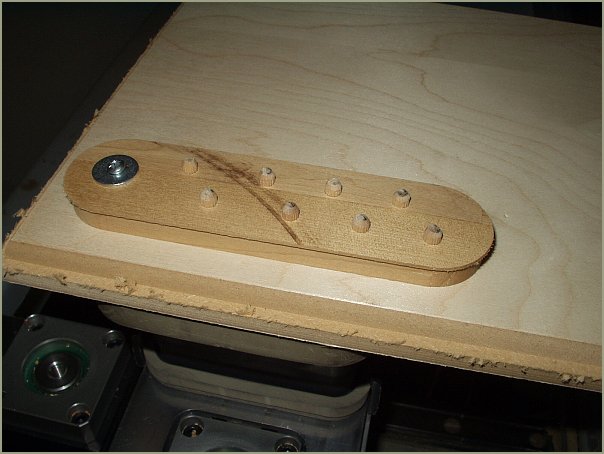

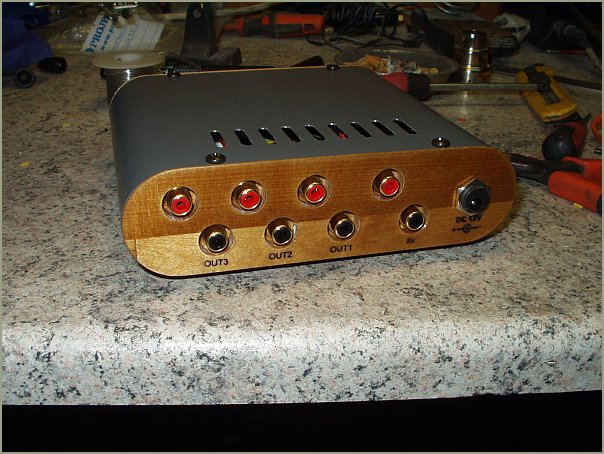

Making of front and rear panel with CNC machine
PC050040 PC050041 PC050042 PC060043 PC060044 PC070045 PC070047 PC070048 PC070049 PC070050 PC070051 PC070052
