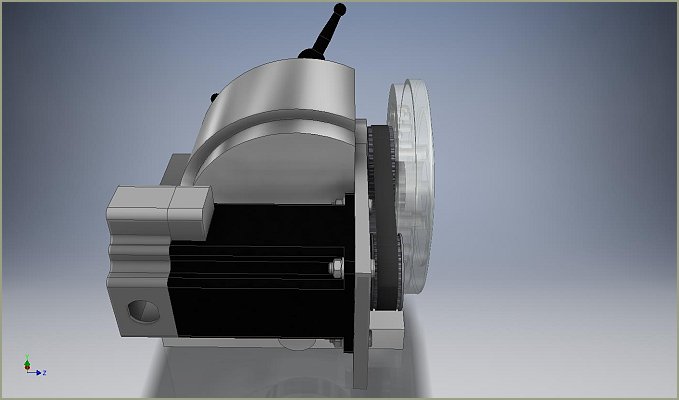

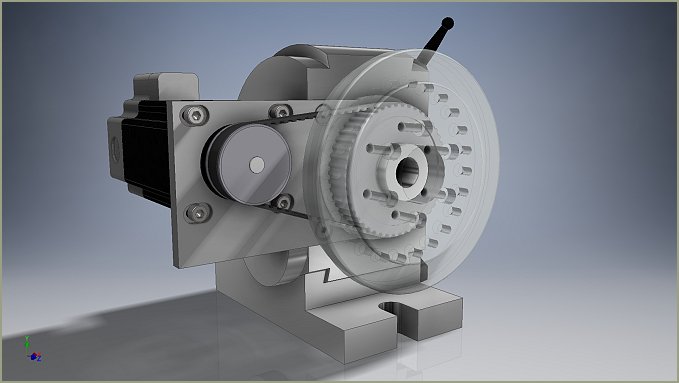

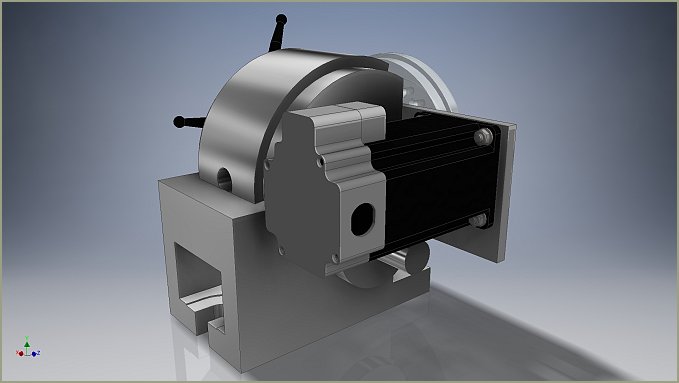

Design for Vertex BS0 dividing head CNC control conversion.
BS0 design2 BS0 design3 IMG_0414 IMG_0415 IMG_0416 IMG_0417 IMG_0418 IMG_0419

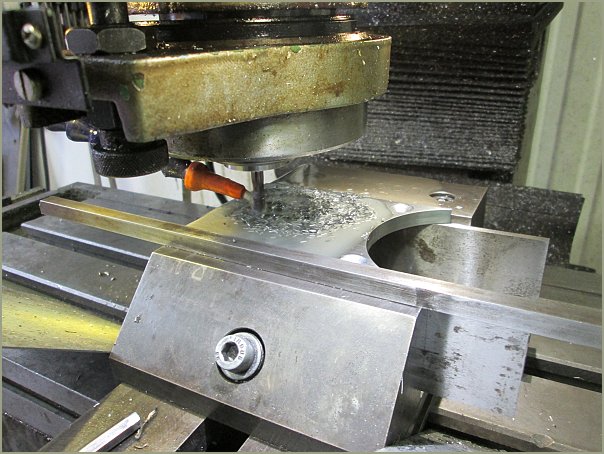

Motor mounting plate fixed.
IMG_0420 IMG_0421 IMG_0422
Motor mounting plate is ready.
IMG_0423 IMG_0424 IMG_0425
Fits perfectly.
IMG_0426 IMG_0427 IMG_0428 IMG_0429 IMG_0430 IMG_0431 IMG_0432 IMG_0433

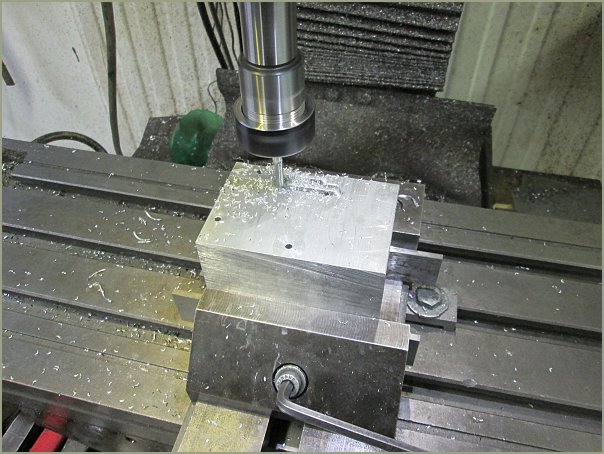

This aluminium block will be motor back cover.
IMG_0434 IMG_0435 IMG_0436 IMG_0437
After about 2.5h.

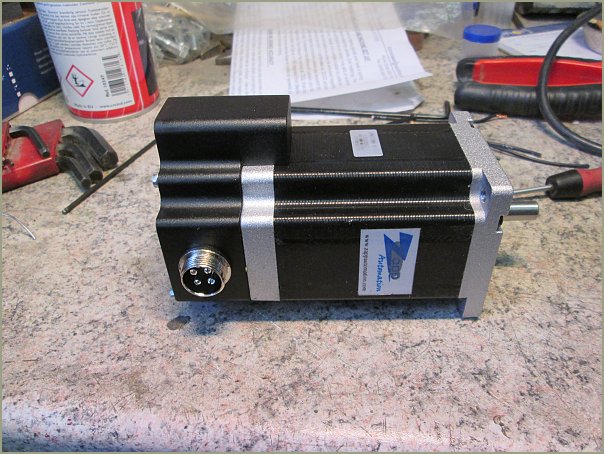

IMG_0438 IMG_0439 IMG_0440 IMG_0441 IMG_0442 IMG_0443 IMG_0444 IMG_0445 IMG_0446 IMG_0447 IMG_0448 IMG_0449 IMG_0450 IMG_0451
Still needed to modify mounting plate.
IMG_0452 IMG_0453
Conversion is ready.
