10052012131

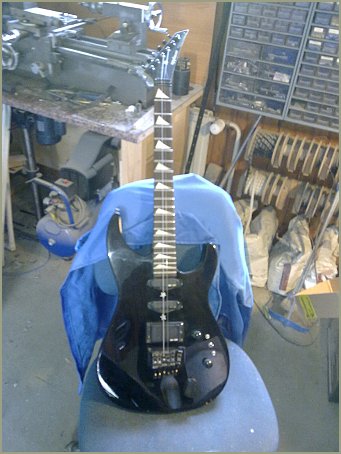

My first e-guitar which I bought when I was about 13-14 yo.
Made in Korea. Cost about 150eur. Second hand.
10052012132

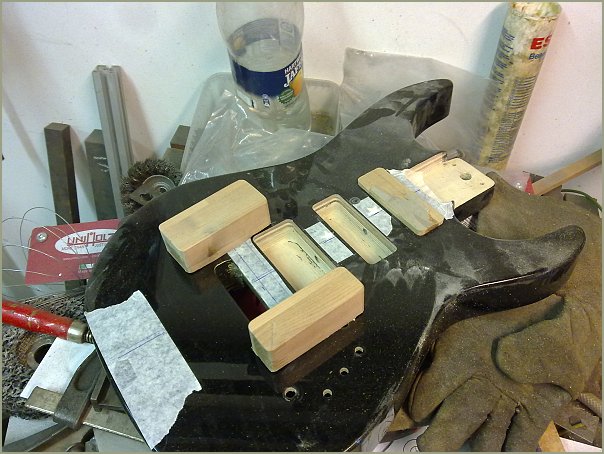

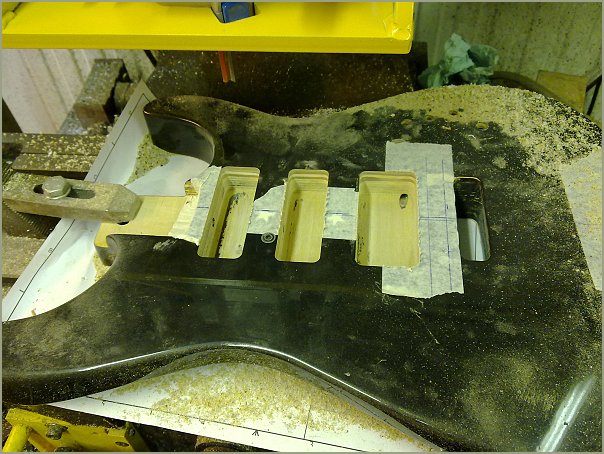

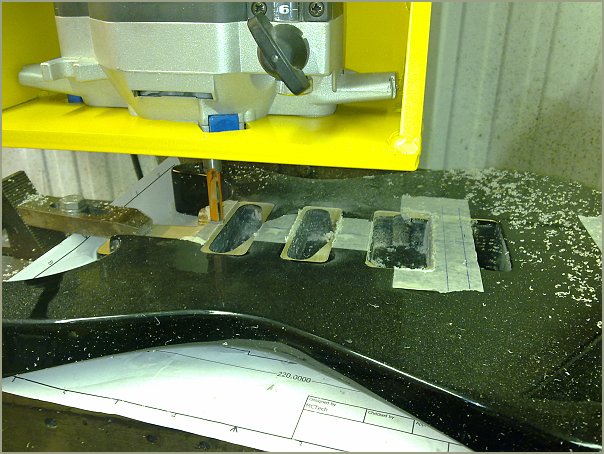

Filling old pick up holes
10052012133 10052012134 10052012135

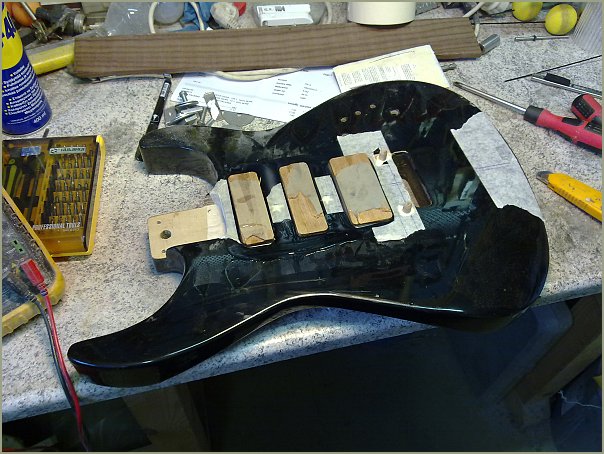

Glued with epoxy
11052012136

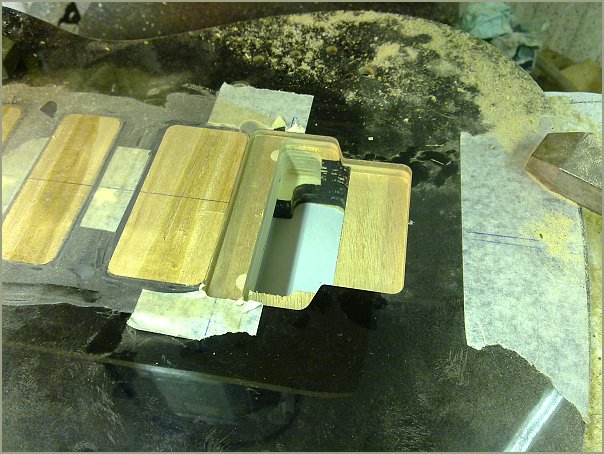

New hole for Floyd Rose tremolo (licensed)
11052012137

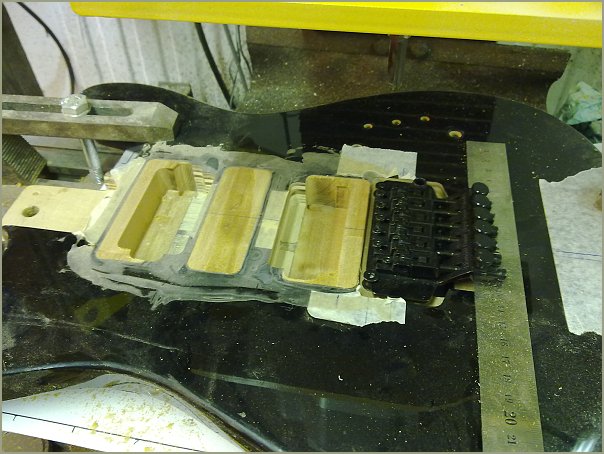

It seems to fit ok
11052012138

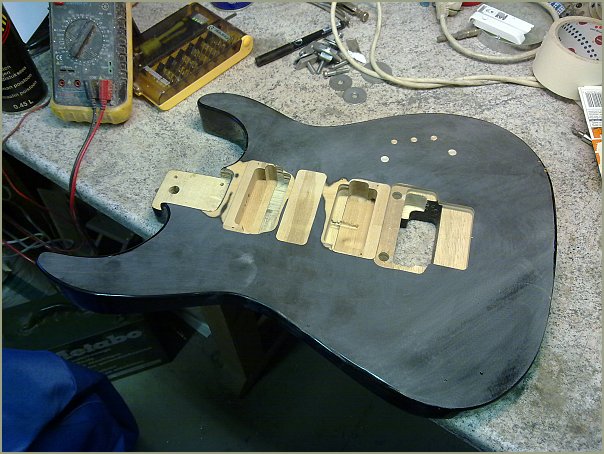

New holes done and old ones filled
12052012139

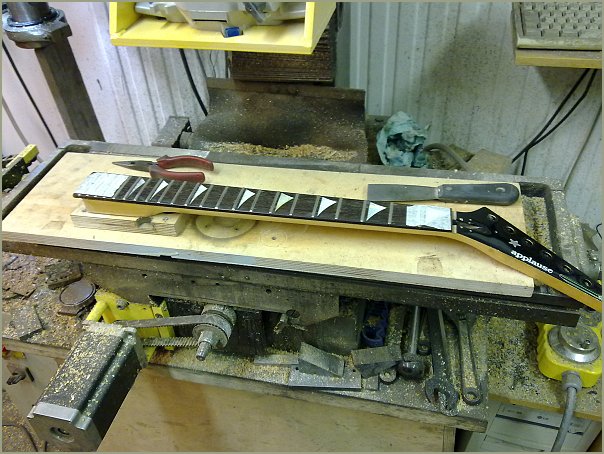

Making of new fretboard
12052012140
Old one removed.
12052012141 12052012142

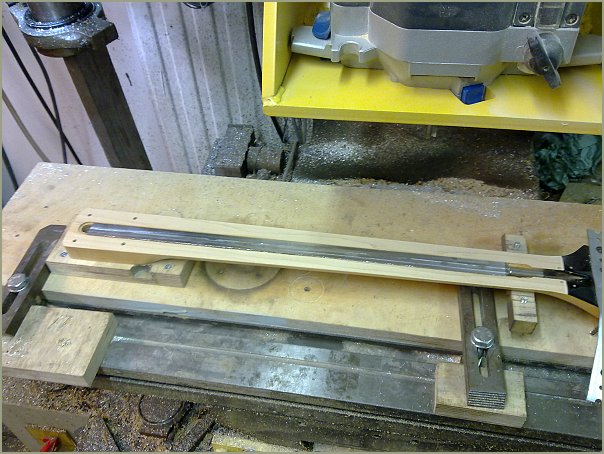

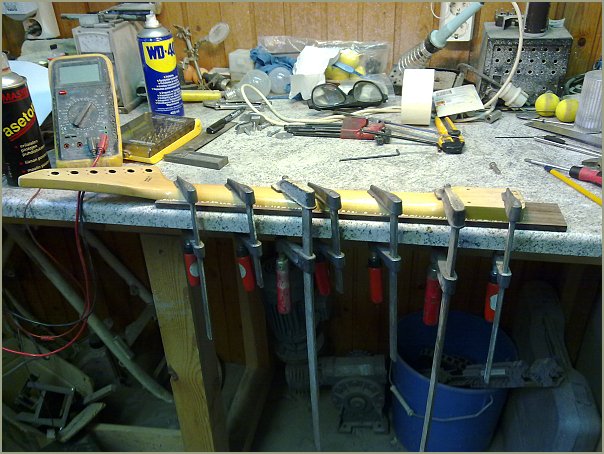

And new one glued
12052012143

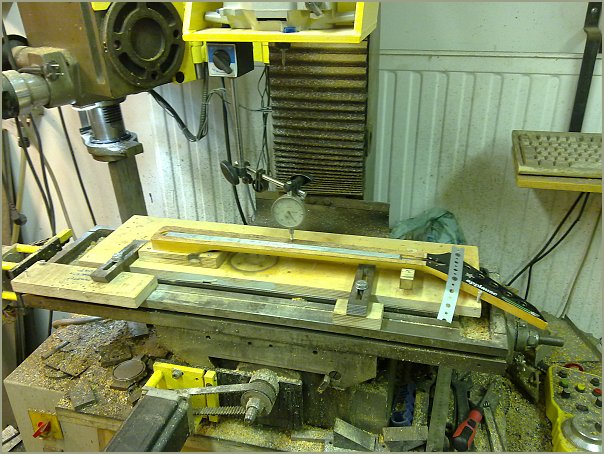

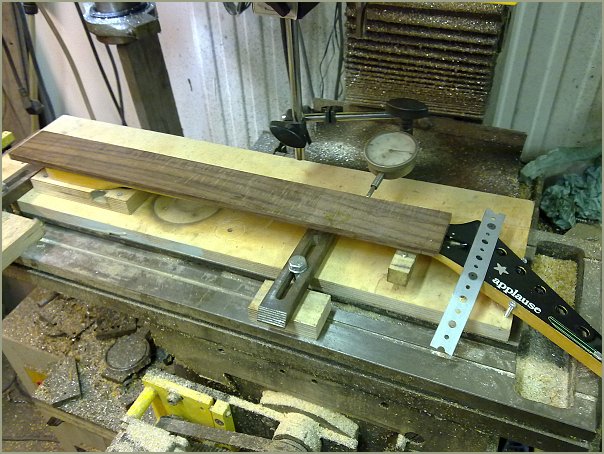

Attaching neck to CNC machine
frets 12052012144

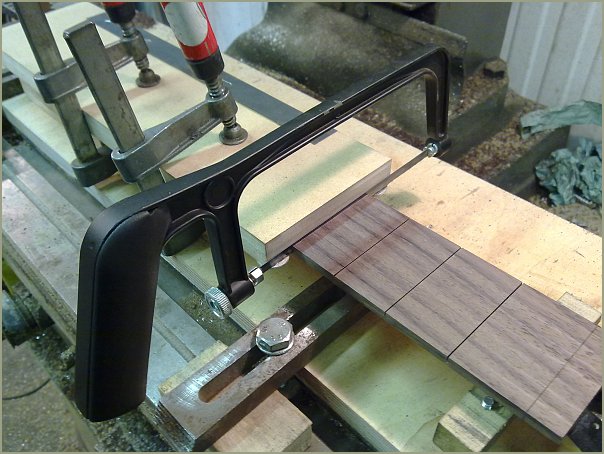

Sawing the fret grooves
12052012145

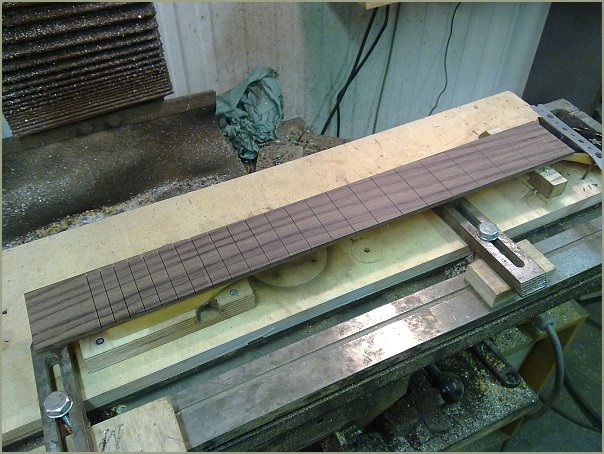

Fret grooves ready. Next step is make the right radius to the fretboard.
fretboard 12052012146

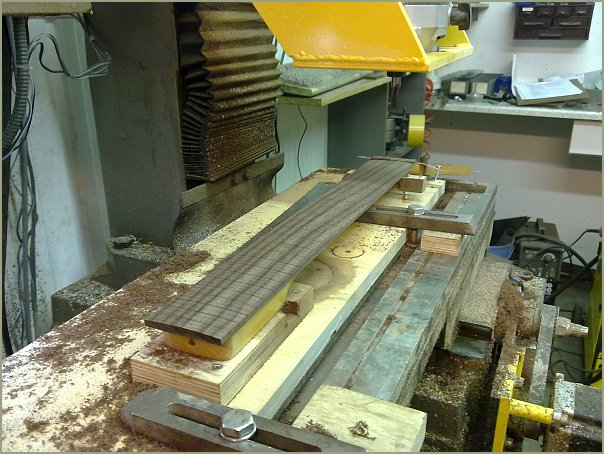

Need just a little bit of sanding.
12052012147 12052012148

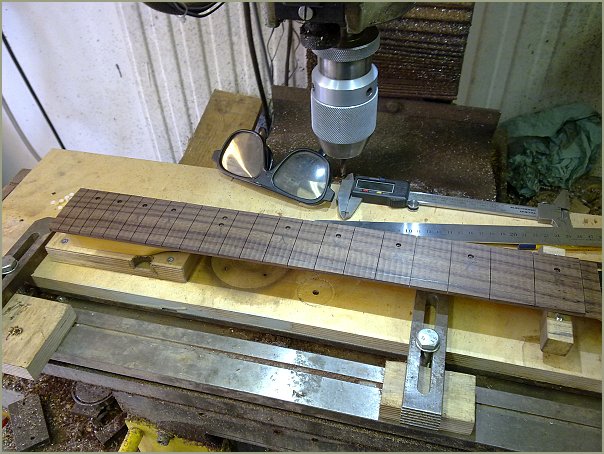

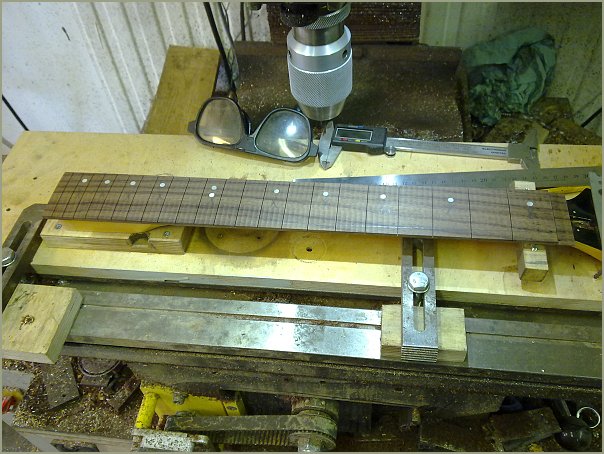

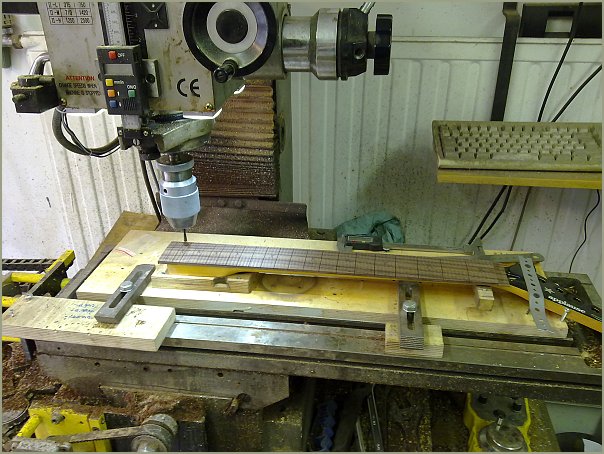

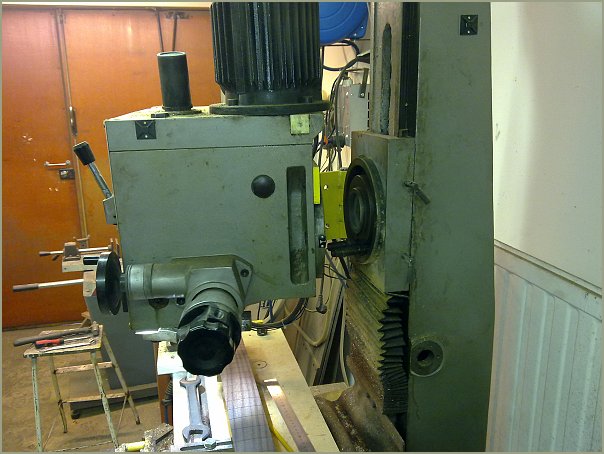

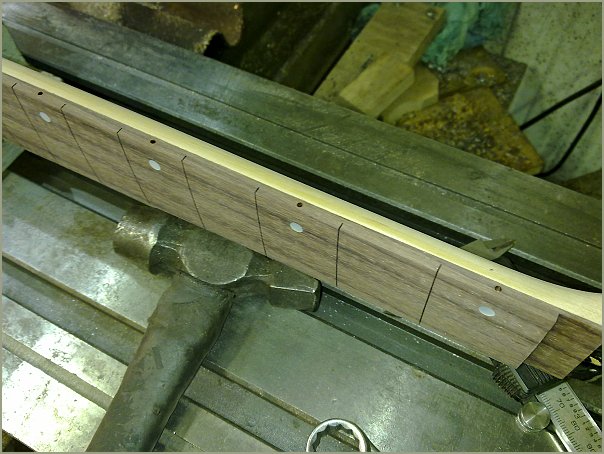

Bohring fret inlays
12052012149 12052012150 fretdots 12052012151 12052012152

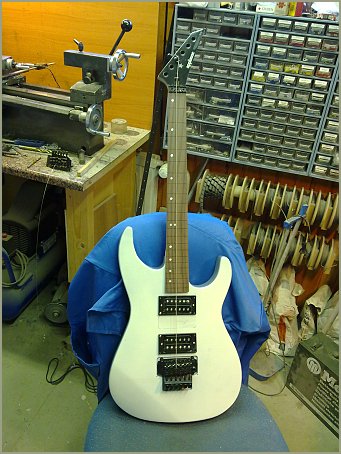

Test assembly
13052012153

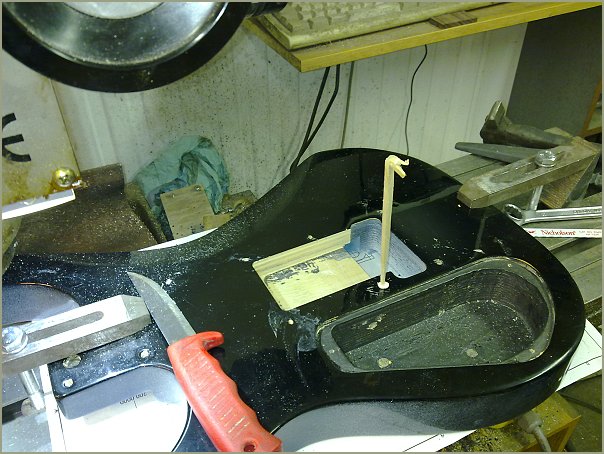

Filling old screw holes
13052012154

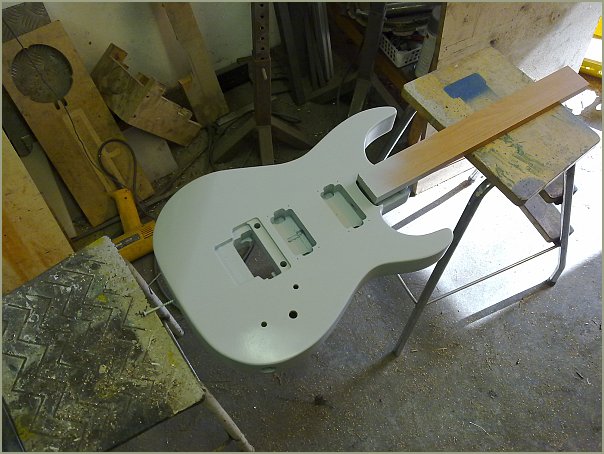

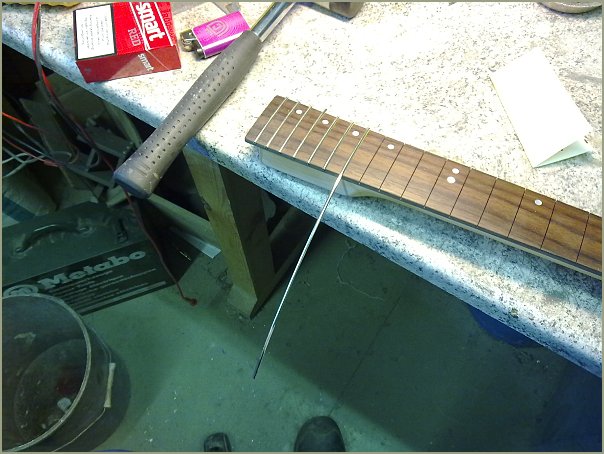

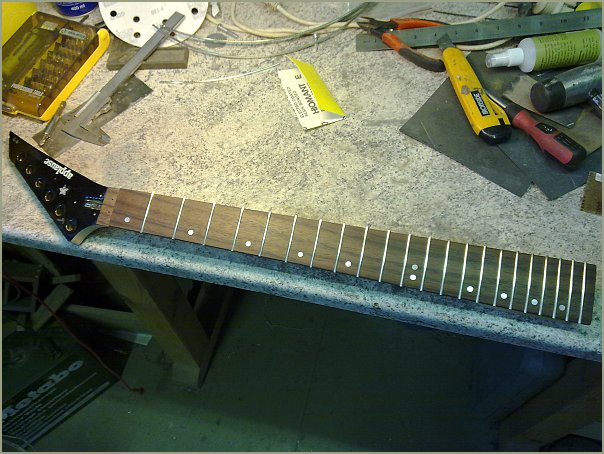

Fret installing
13052012155 15052012158 14052012156

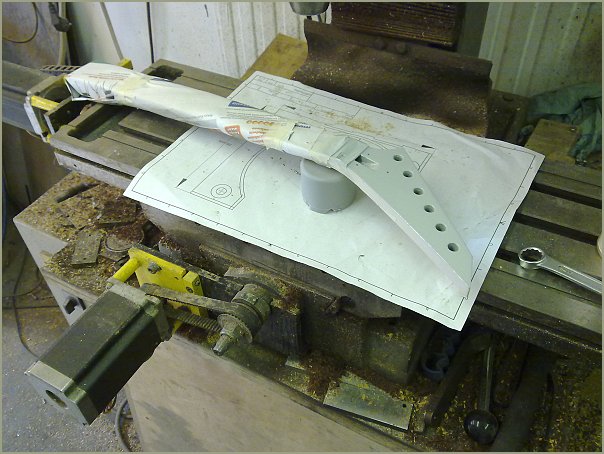

Primer
14052012157 16052012159

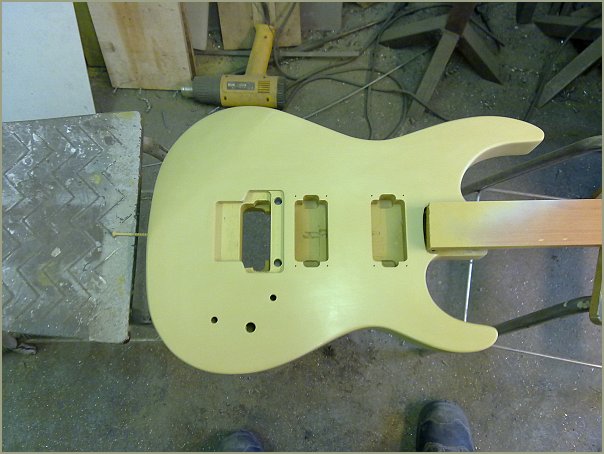

Filler primer
17052012160

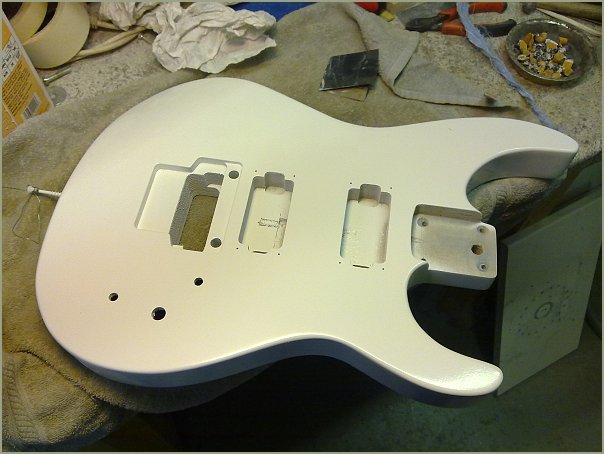

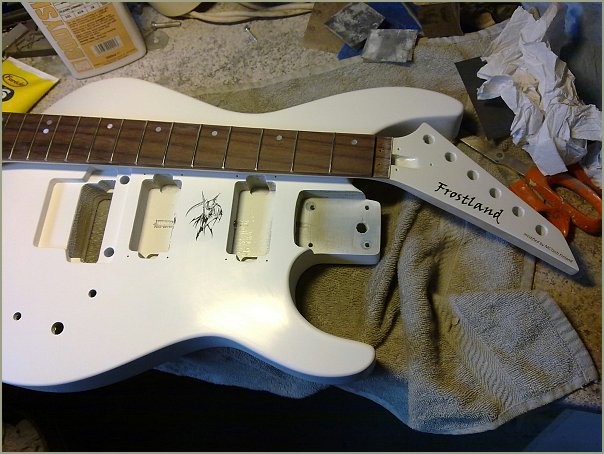

Painted
18052012161
Decals added
18052012162

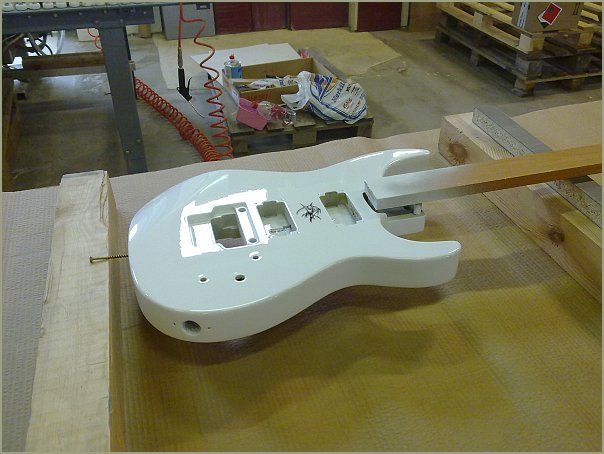

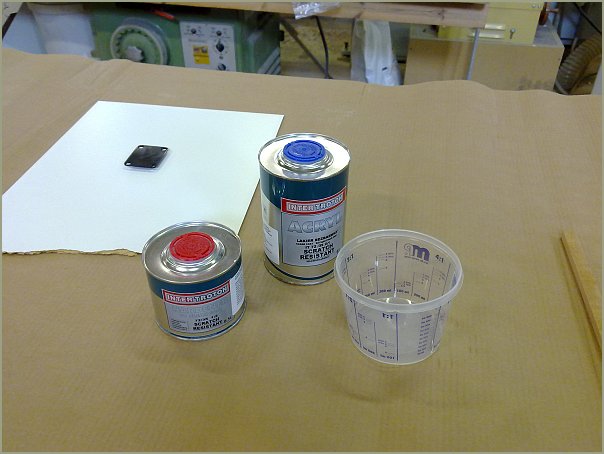

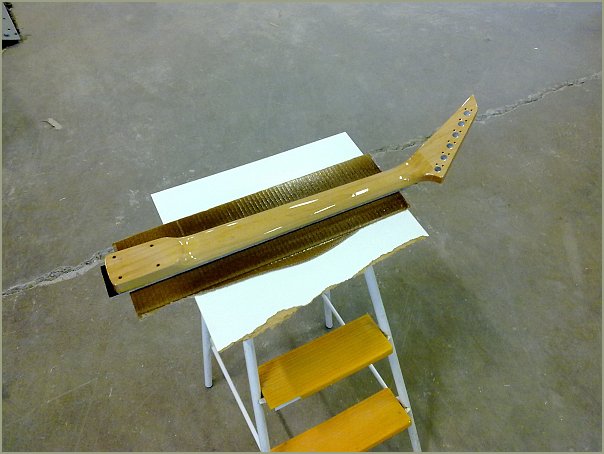

Clear coat
18052012163 18052012164 20052012165

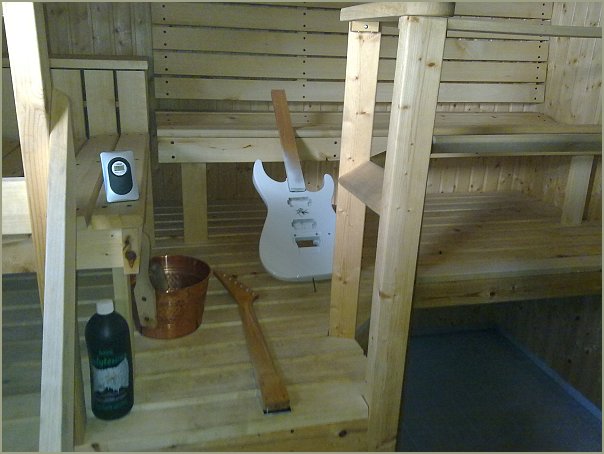

Drying the clear coat in sauna (60 degrees celsius)
20052012166

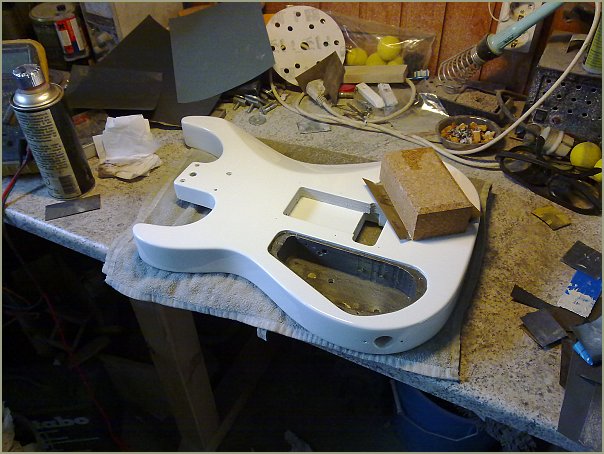

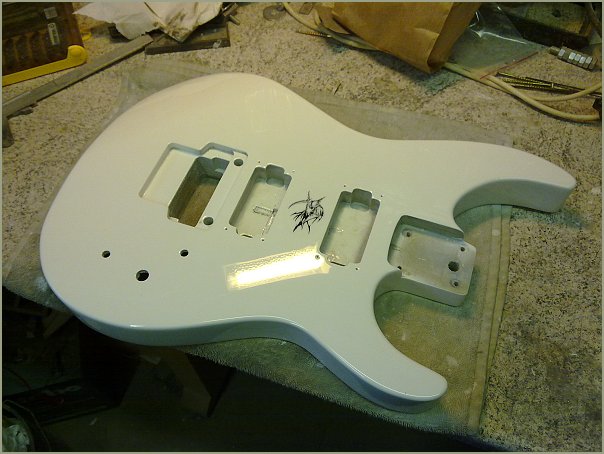

Sanding before polishing

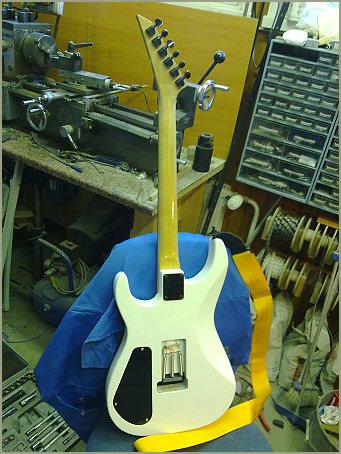

20052012167 28052012169 28052012170 28052012171 28052012172
